Data Bus On Board Diagnostic Interface -J533-, FROM JULY 2019: Notes

Component Location

Near rear seat bench.

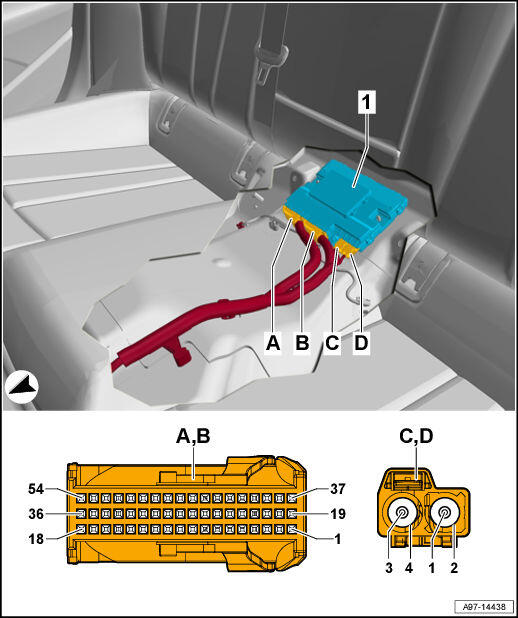

Fig 1: Data Bus On Board Diagnostic Interface -J533- Component Location And Connector End View (From July 2019)

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Data Bus On Board Diagnostic Interface -J533-
• A -  54-Pin Connector -T54-, black
• B -  54-Pin Connector -T54e-, gray
• C -  Not used
• D -  Not used
