Data Bus On Board Diagnostic Interface -J533-, WITHOUT EMERGENCY CALL FUNCTION (IW0), THROUGH JUNE 2019: Notes

Component Location

Near rear seat bench.

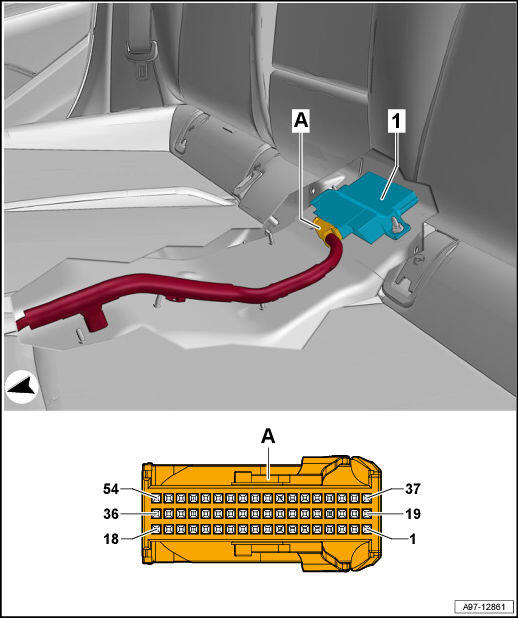

Fig 1: Data Bus On Board Diagnostic Interface -J533- Component Location And Connector End View (Without Emergency Call Function (IW0), Through June 2019)

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Data Bus On Board Diagnostic Interface -J533-
• A -  54-Pin Connector -T54-, black
