Instrument Cluster Control Module -J285-, WITH VIRTUAL COCKPIT, (9S8), (9S9) FROM JULY 2019: Notes

Component Location

In driver's instrument panel.

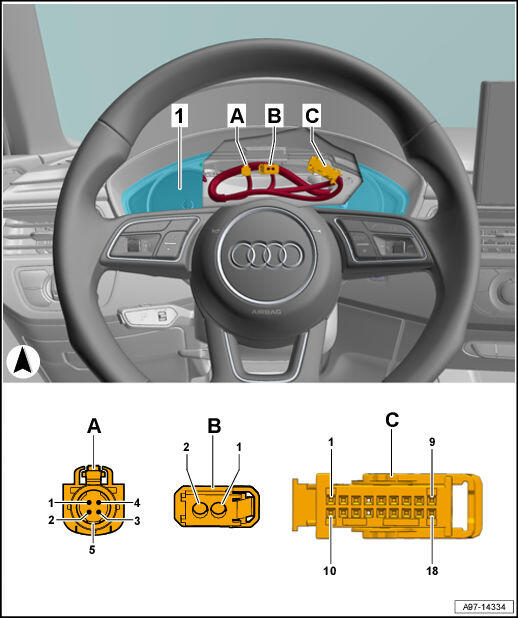

Fig 1: Instrument Cluster Control Module -J285-, With Virtual Cockpit, (9S8), (9S9), From July 2019 Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Instrument Cluster Control Module -J285-
• A -  5-Pin Connector -T5gj-, black
• B -  2-Pin Connector -T2dx-, black
  • MOST Bus
• C -  18-Pin Connector -T18k-, black
