Instrument Cluster Control Module -J285-, WITHOUT VIRTUAL COCKPIT, (9S5), (9S7)

Component Location

In driver's instrument panel.

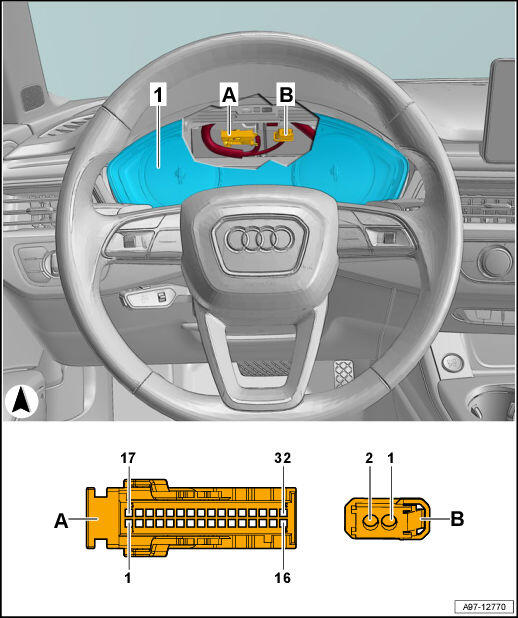

Fig 1: Instrument Cluster Control Module -J285-, Without Virtual Cockpit (9S5) Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Instrument Cluster Control Module -J285-
• A -  32-Pin Connector -T32f-, gray
• B -  2-Pin Connector -T2dx-, black
  • MOST Bus

Pin Arrangements Instrument Cluster Control Module -J285- Pin Arrangements Instrument Cluster Control Module -J285-
