Left Front Seat Belt Tensioner Control Module -J854- / Right Front Seat Belt Tensioner Control Module -J855- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

On belt retractor in B-pillar.

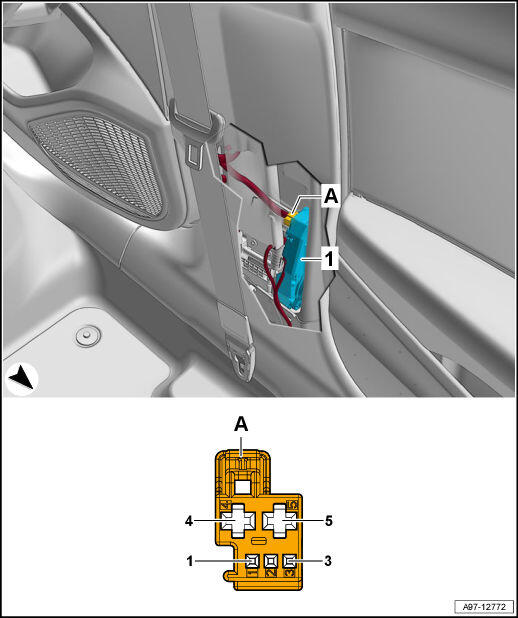

Fig 1: Left Front Seat Belt Tensioner Control Module -J854- / Right Front Seat Belt Tensioner Control Module -J855- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Front seat belt tensioner control module -J854- / -J855-
• A -  5-Pin Connector -T5s- / -T5t-, naturally cloudy
  • 5-Pin Connector -T5s- on Left Front Seat Belt Tensioner Control Module -J854-
  • 5-Pin Connector -T5t- on Right Front Seat Belt Tensioner Control Module -J855-
