Mobile Device Charger 1 -J1146-, FROM JULY 2019 COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

In the center console

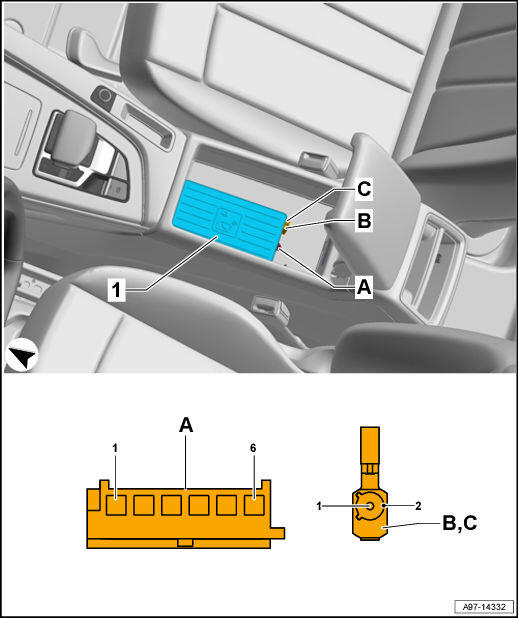

Fig 1: Mobile Device Charger 1 -J1146-, From July 2019 Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Mobile Device Charger 1 -J1146-
• A -  6-Pin Connector -T6ez-, black
• B -  2-Pin Connector -T2nka-, purple
• C -  2-Pin Connector -T2tz-
