Rear A/C Control Head (Climatronic) -E265- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

in the rear center console.

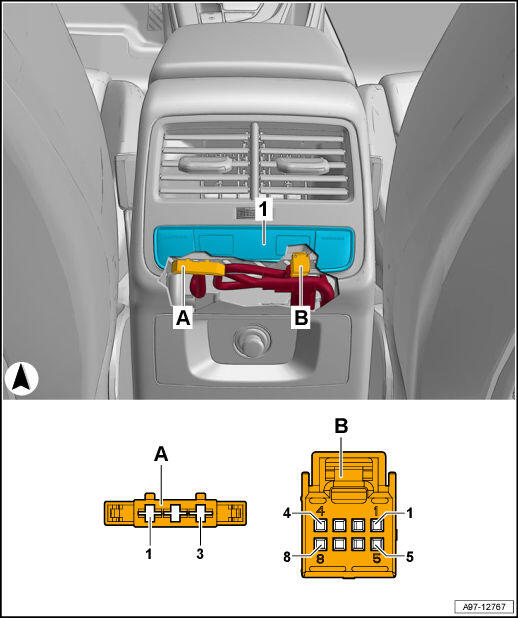

Fig 1: Rear A/C Control Head (Climatronic) -E265- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Rear A/C Control Head (Climatronic) -E265-
• A -  3 Pin Connector -T3z-, black
• B -  8-Pin Connector -T8n-, black
