NOX Sensor Control Module -J583- / -GX30-, FOR ENGINE CODES DEZB, DEZE, DFBA, DTPA, DTNA, DTNB, DFVA, DESA, DETA, DETB, DEUA, DEUB: Notes

Component Location

In front of engine compartment.

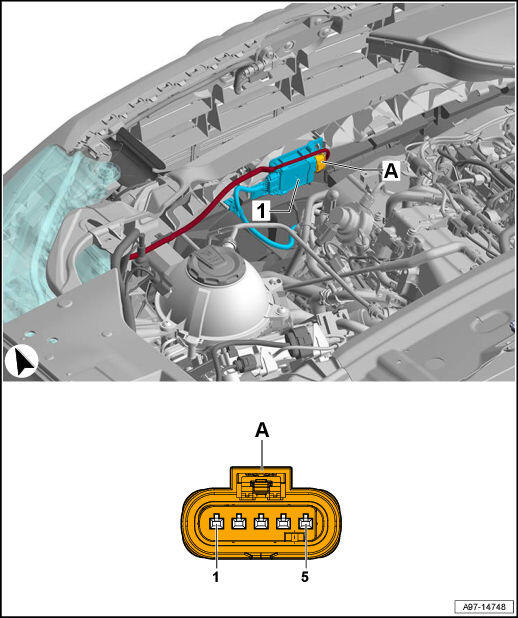

Fig 1: NOX Sensor Control Module -J583- / -GX30- Component Location And Connector End View (DEZB, DEZE, DFBA, DTPA, DTNA, DTNB, DFVA, DESA, DETA, DETB, DEUA, DEUB)

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  NOX Sensor Control Module -J583- / -GX30-
   • for engine codes DEZB, DEZE, DFBA, DTPA, DTNA, DTNB
   • deviating installation position for engine codes DESA, DETA, DETB, DEUA, DEUB
2. A -  5-Pin Connector -T5w-, black
