Starter generator -C29-, FOR VEHICLES WITH 12 V HYBRID SYSTEM: Notes

Component Location

In front left in engine compartment.

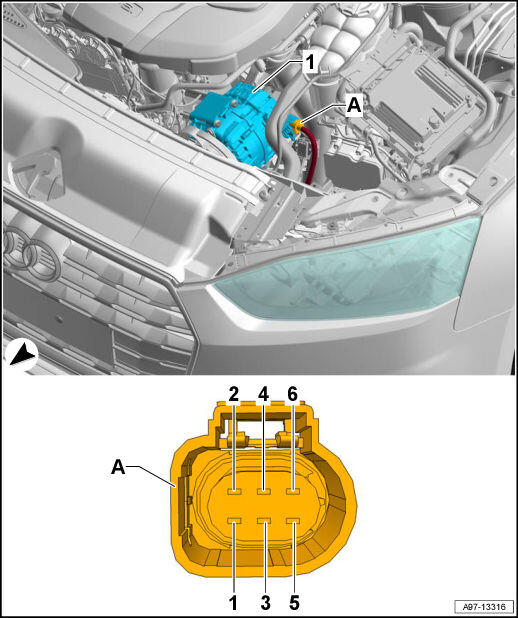

Fig 1: Starter Generator -C29- Component Location And Connector End View (Vehicles With 12 V Hybrid System)

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Starter generator -C29-
2. A -  6-Pin Connector -T6bv-, black
