Starter generator -C29-, FOR VEHICLES WITH 48 V HYBRID SYSTEM: Notes

Component Location

In engine compartment, right front.

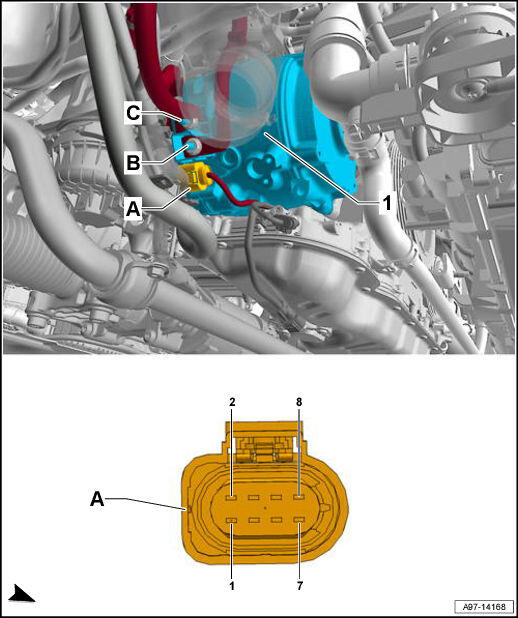

Fig 1: Starter Generator -C29- Component Location And Connector End View (Vehicles With 48 V Hybrid System)

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Starter generator -C29-
2. A -  8-Pin Connector -T8aj-, black
3. B -  Terminal 40 connection to Terminal 40 Wire Junction -TV66-
4. C -  Terminal 41 connection, from 745  Ground Connection 3 (on right front long member)
