Cold Start System
The cold start system provides additional air and fuel during cold engine starts. It consists of an auxiliary air valve which provides additional air, cold start injector which delivers additional fuel and a thermo time switch which controls operation. The thermo time switch has a bi-metal contact surrounded by a heating coil which is energized during engine cranking. This switch limits cold start system operation to 5-12 seconds during extreme cold engine starts. When engine temperature is above 95°F (35°C), bi-metal contact breaks ground circuit of cold start injector and cold start enrichment is by-passed. Repair Information Company

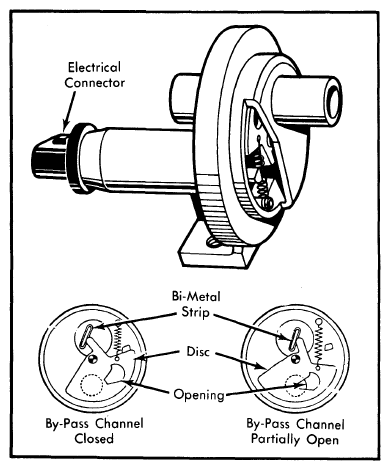

The auxiliary air valve provides additional air during cold engine starts and warm-up. The valve consists of an electrically heated bi-metal strip, movable disc and air by-pass channel. The heater coil on the bi-metal strip is energized by the fuel pump relay. Control of the valve is based upon engine temperature, the air by-pass channel is open when engine is cold and gradually closes as temperature rises. At predetermined temperatures, air by-pass channel is blocked and additional air flow stops. See Fig 1.
