Assembly Of Fast-Release Coupling

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Press in lock (1) before installing fast-release coupling.

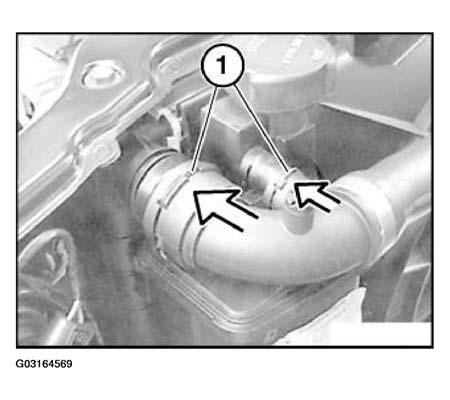

Fig 1: Pressing In Lock Before Installing Fast-Release Coupling
G03164569Courtesy of BMW OF NORTH AMERICA, INC.

Push on hose.

Fast-release coupling must audibly snap into place.
