Disassembly Of Fast-Release Coupling

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Withdraw lock (1/2), disconnect hose.

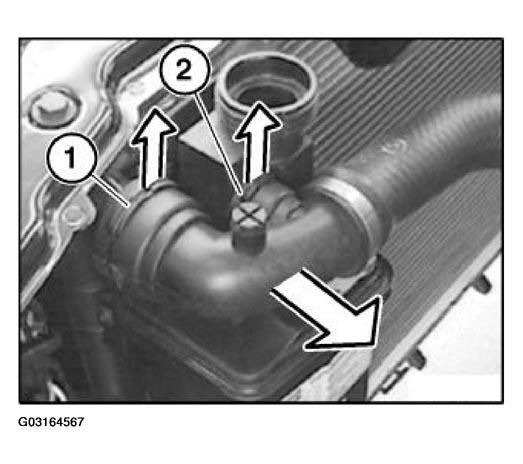

Fig 1: Disconnecting Hose
G03164567Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

  1. Check O-rings (1).

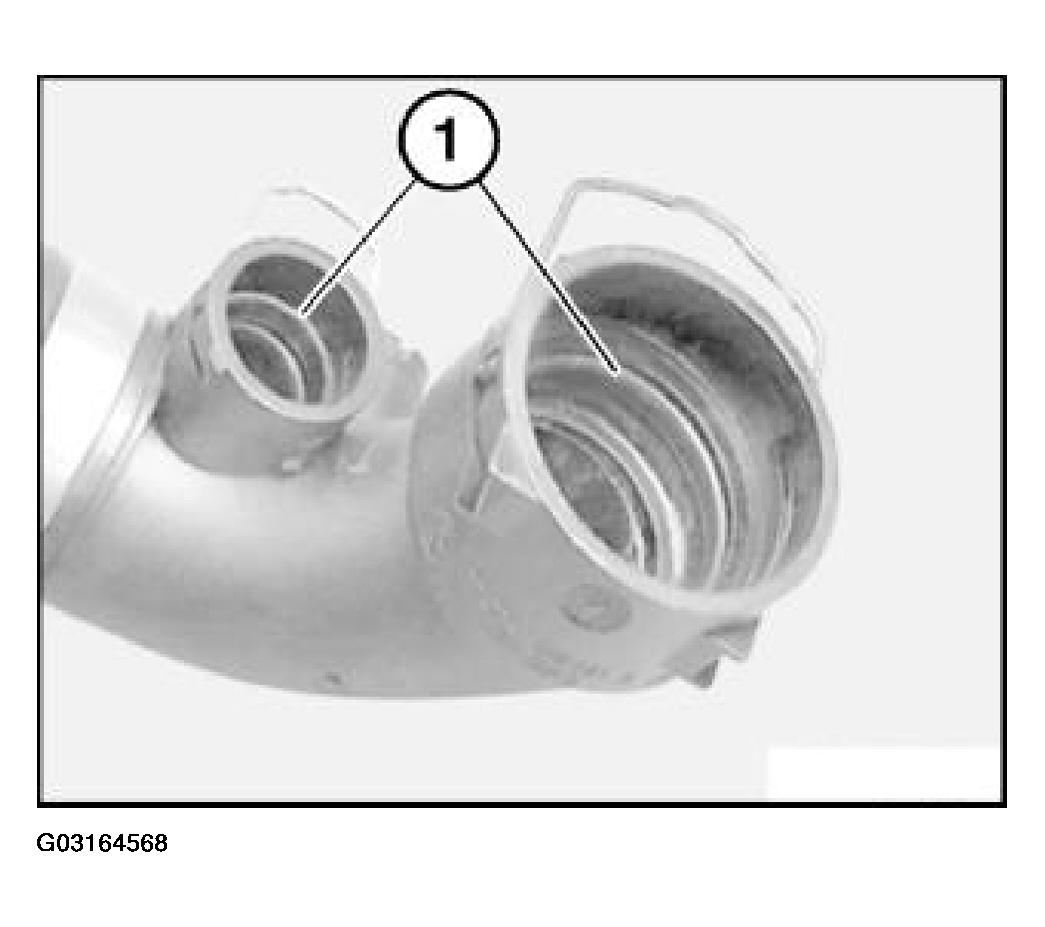

    Fig 2: Checking O-Rings
    G03164568Courtesy of BMW OF NORTH AMERICA, INC.
  2. Do not coat O-rings (1) with antiseize agent.
