Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Auxiliary Fuse/Relay Box In engine compartment, on left front side of fenderwell. See Figure .

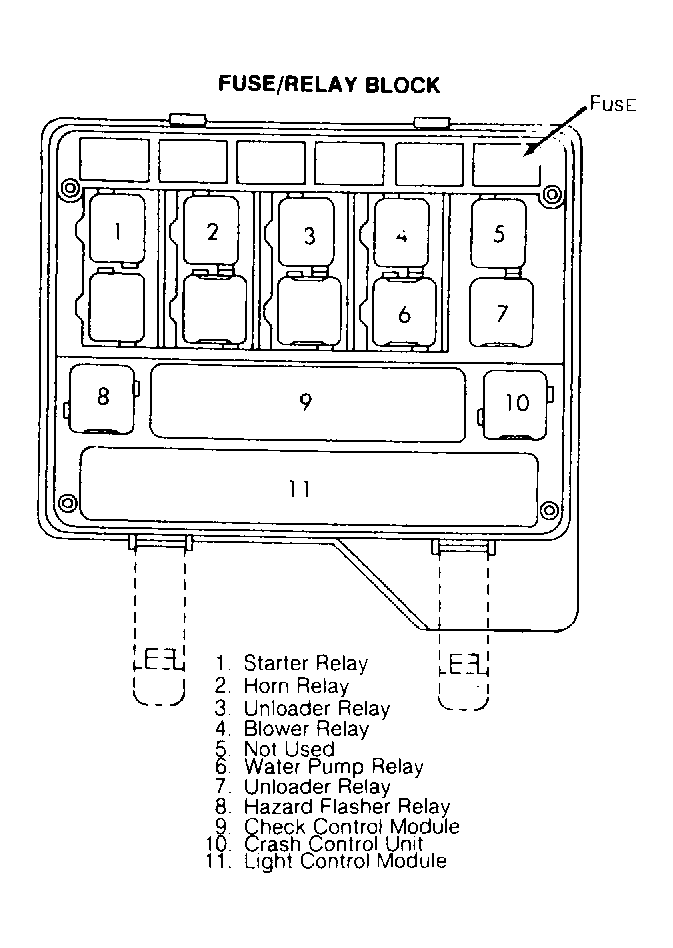

Fuse/Relay Block On left rear corner of engine compartment. See Figure .
