Engine Lubrication System: Notes

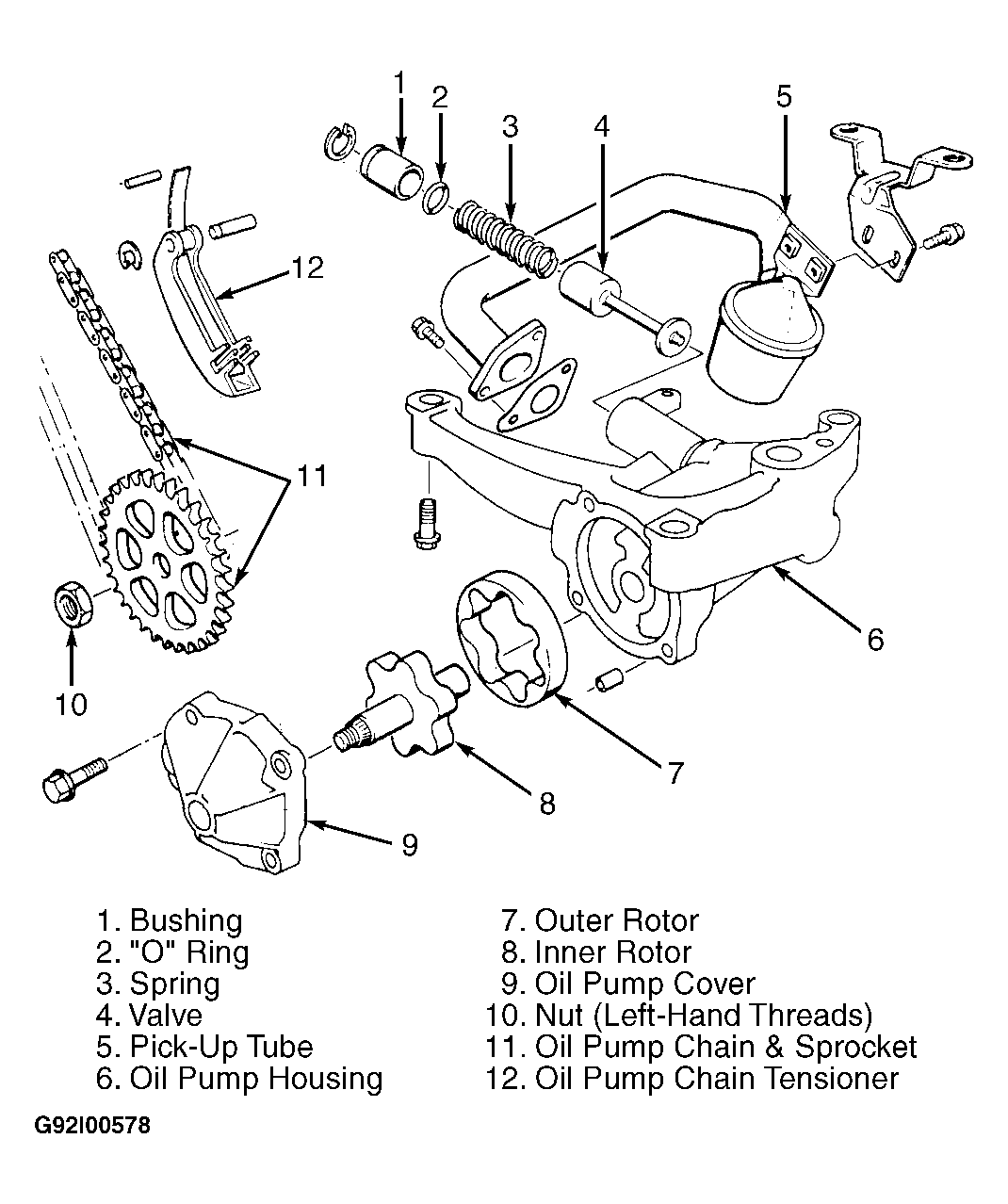

Oil pump is a rotary-type oil pump. Oil pump is bolted to engine block and driven directly from crankshaft by a single-roller chain and tensioner. See Figure. Oil filter is mounted vertically on intake side of engine.
