Wiring Diagrams: 750iL

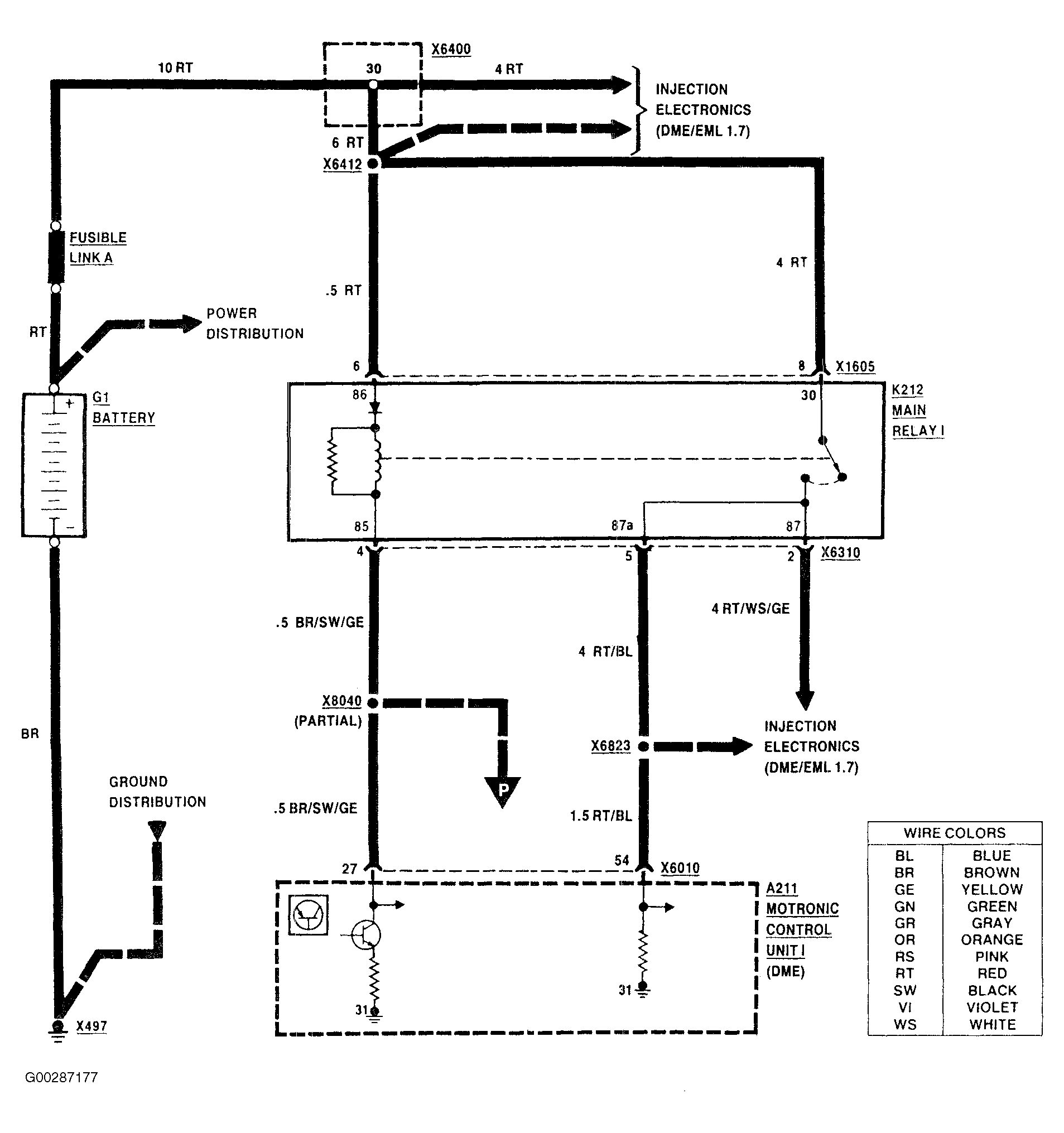

Fig 1: Electronic Throttle Control Wiring Diagram - 7 Series (1 Of 13)

G00287177

Courtesy of BMW OF NORTH AMERICA, INC.

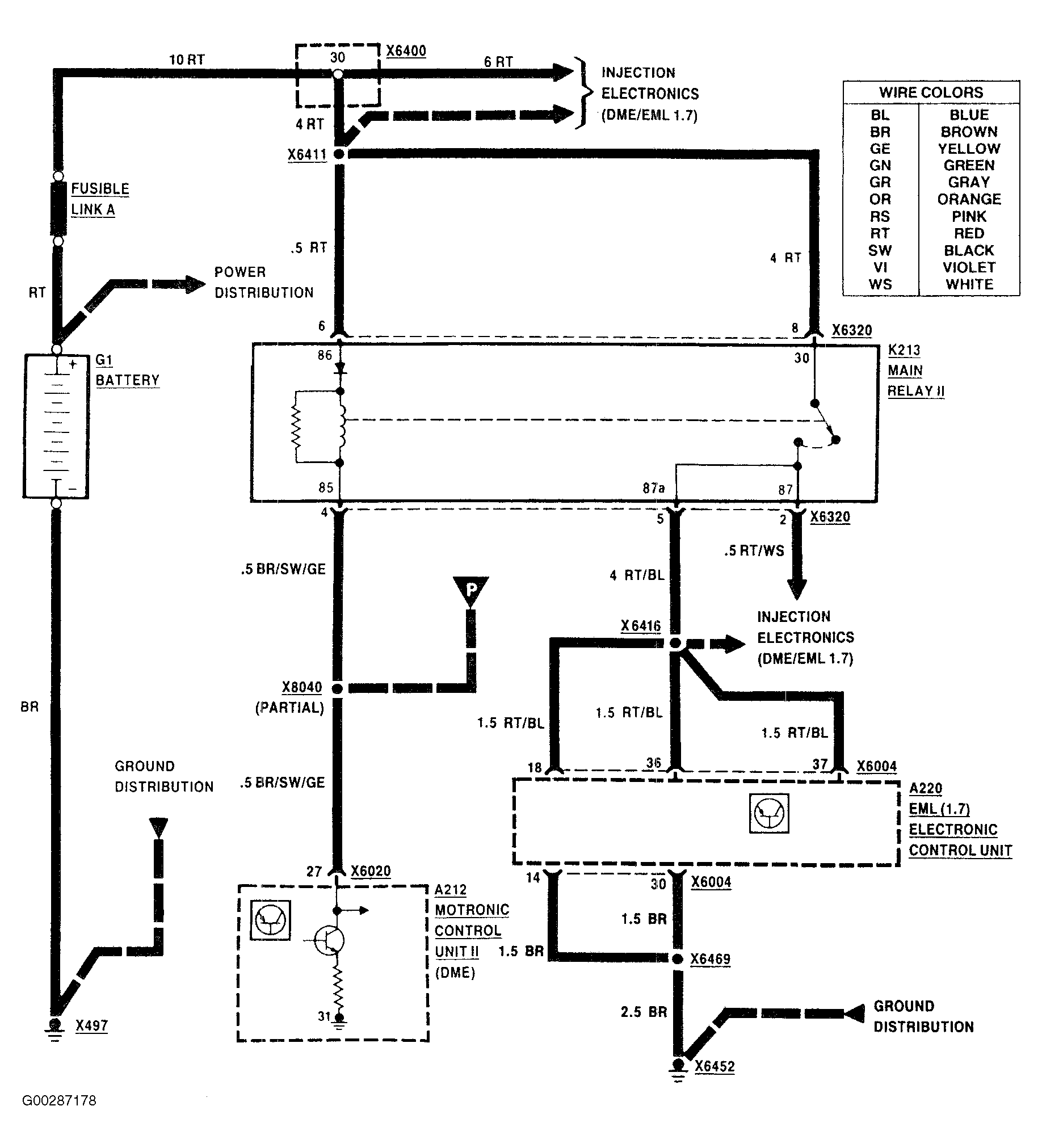

Fig 2: Electronic Throttle Control Wiring Diagram - 7 Series (2 Of 13)

G00287178

Courtesy of BMW OF NORTH AMERICA, INC.

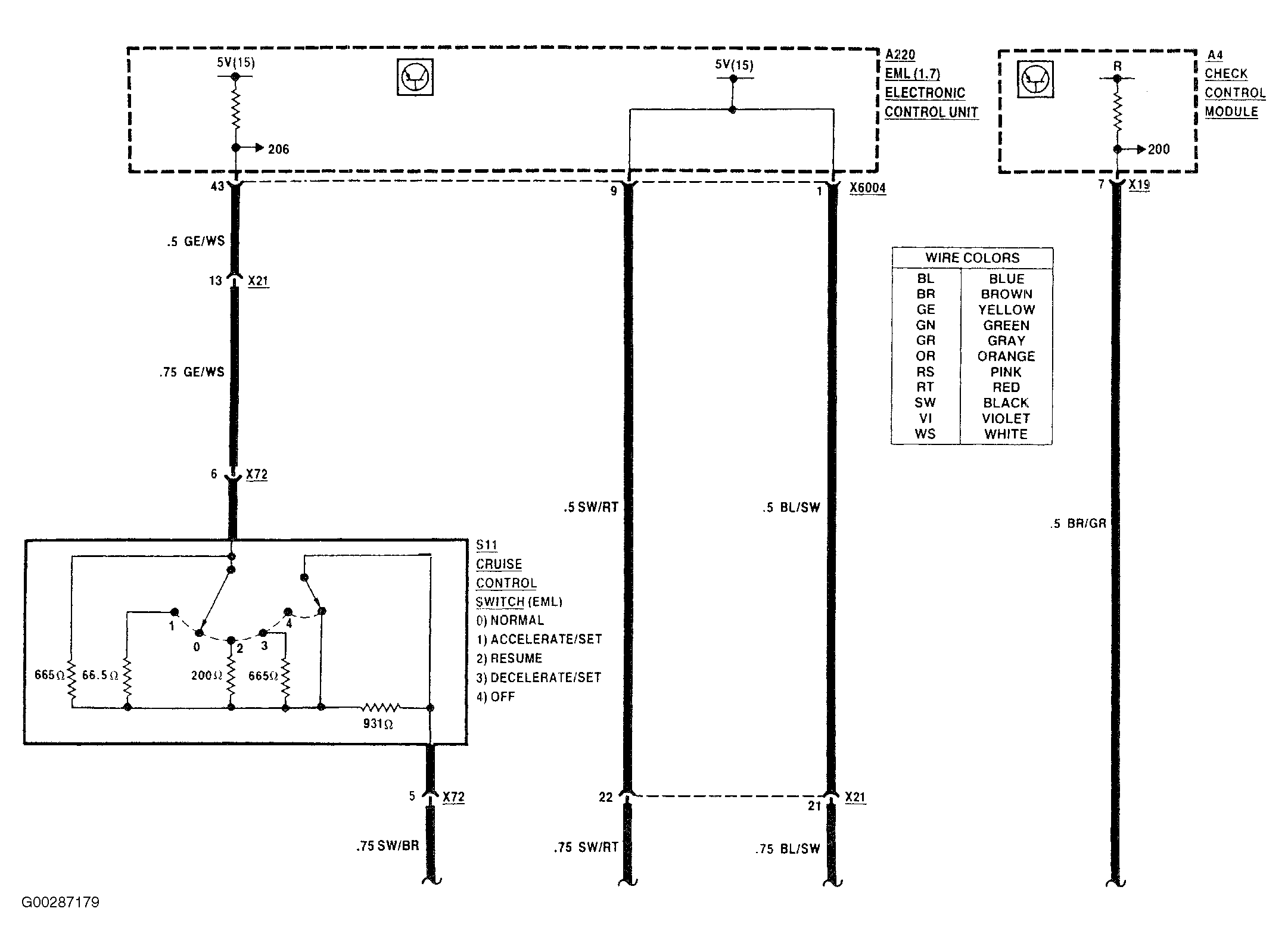

Fig 3: Electronic Throttle Control Wiring Diagram - 7 Series (3 Of 13)

G00287179

Courtesy of BMW OF NORTH AMERICA, INC.

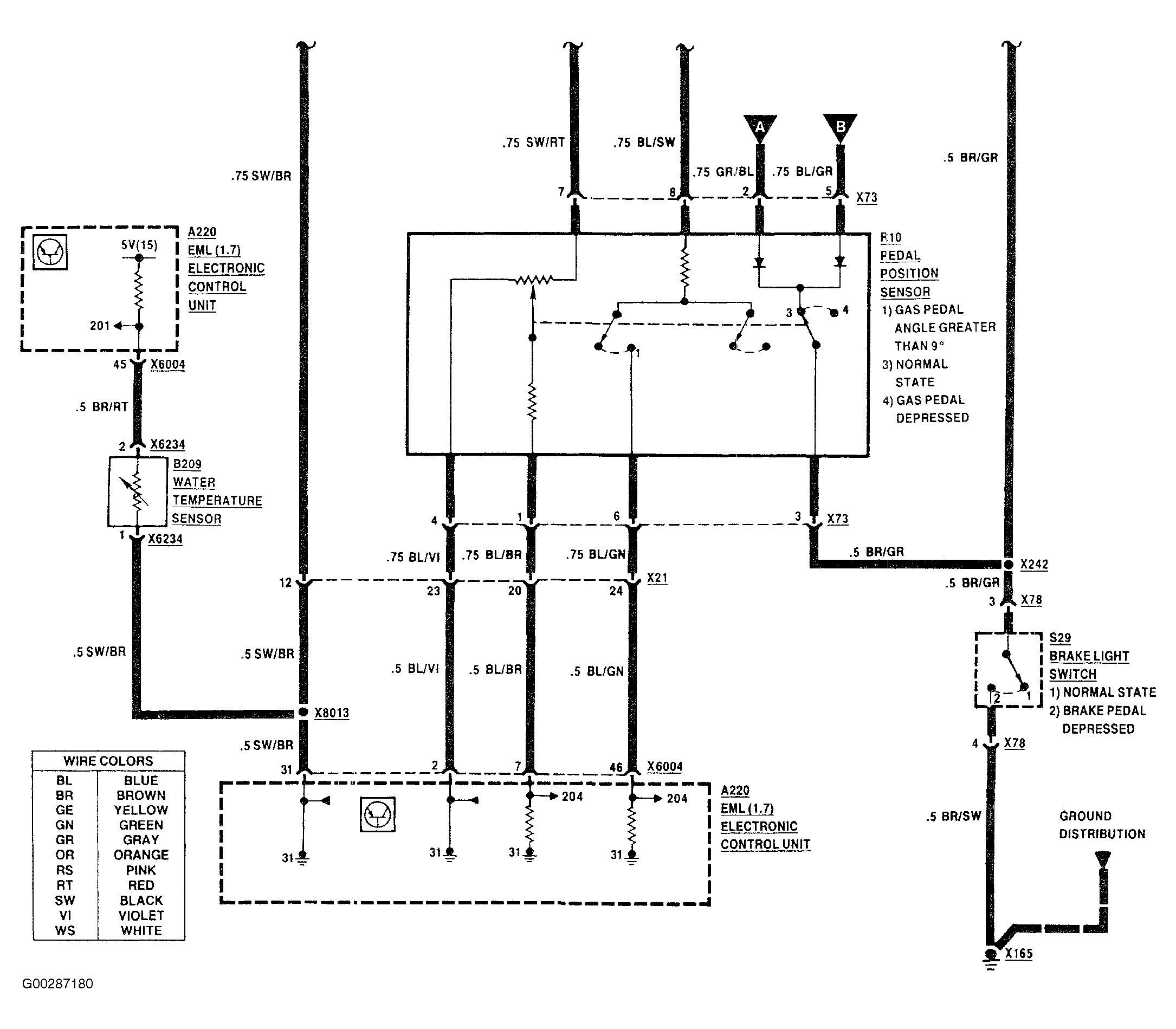

Fig 4: Electronic Throttle Control Wiring Diagram - 7 Series (4 Of 13)

G00287180

Courtesy of BMW OF NORTH AMERICA, INC.

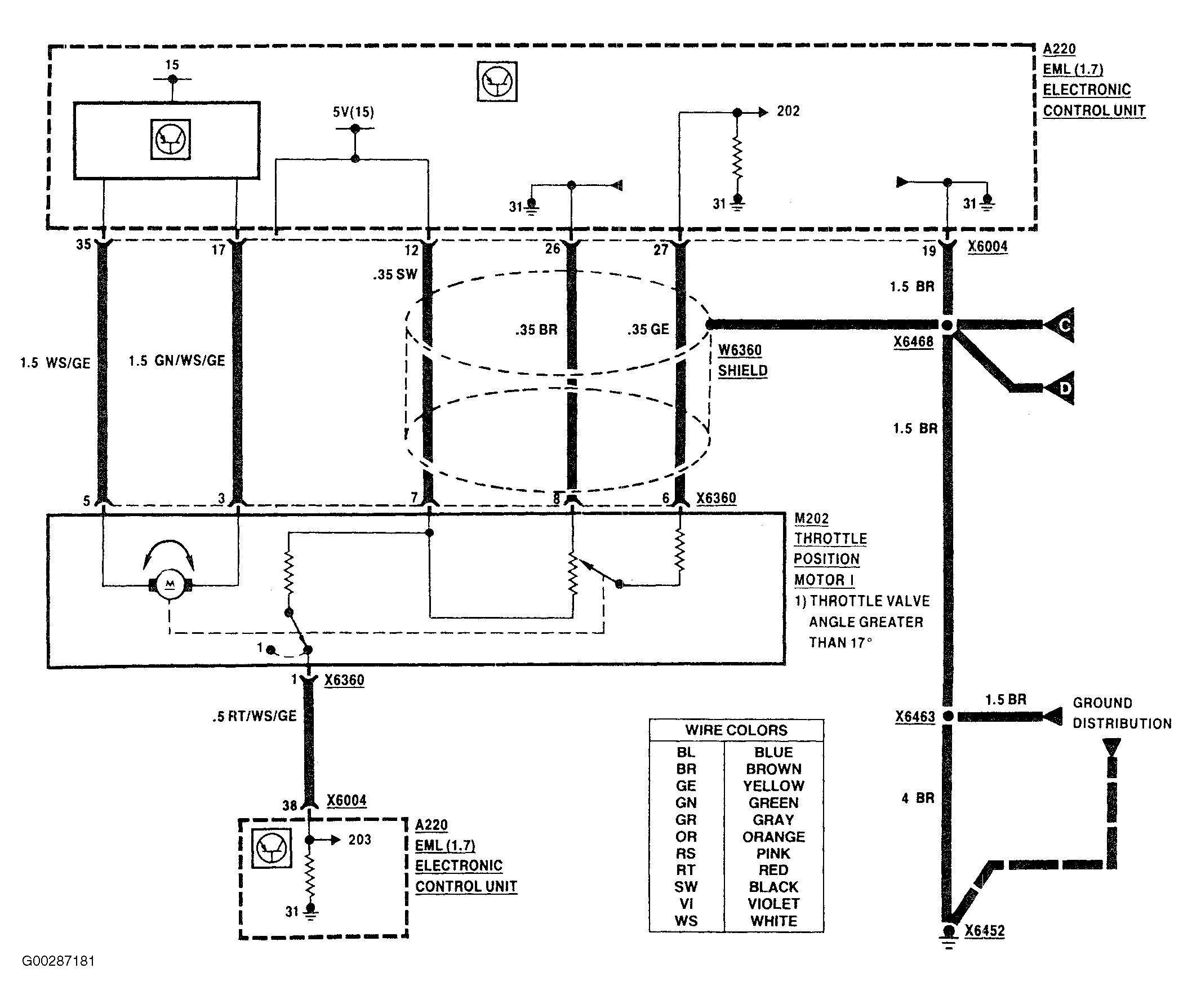

Fig 5: Electronic Throttle Control Wiring Diagram - 7 Series (5 Of 13)

G00287181

Courtesy of BMW OF NORTH AMERICA, INC.

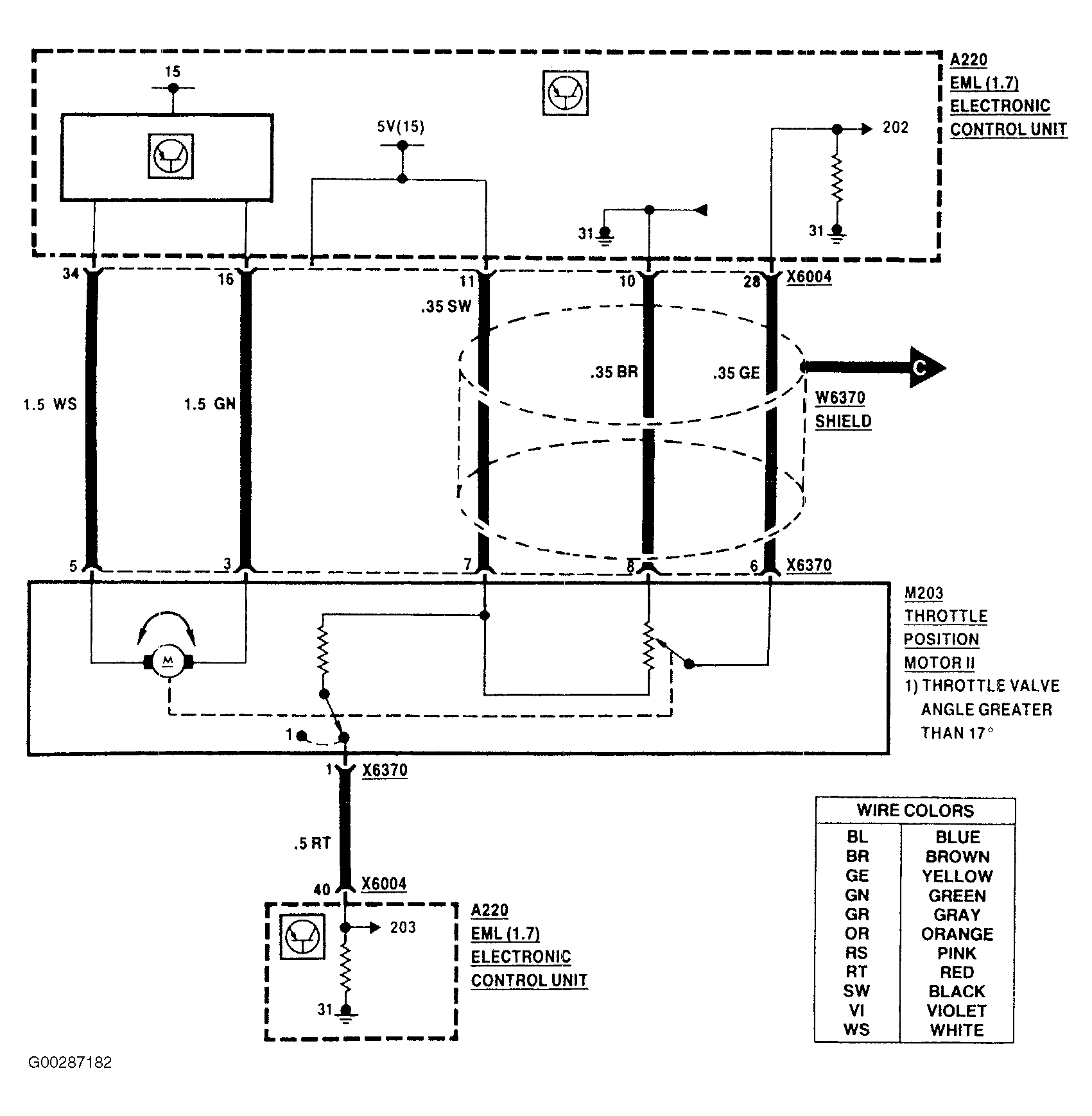

Fig 6: Electronic Throttle Control Wiring Diagram - 7 Series (6 Of 13)

G00287182

Courtesy of BMW OF NORTH AMERICA, INC.

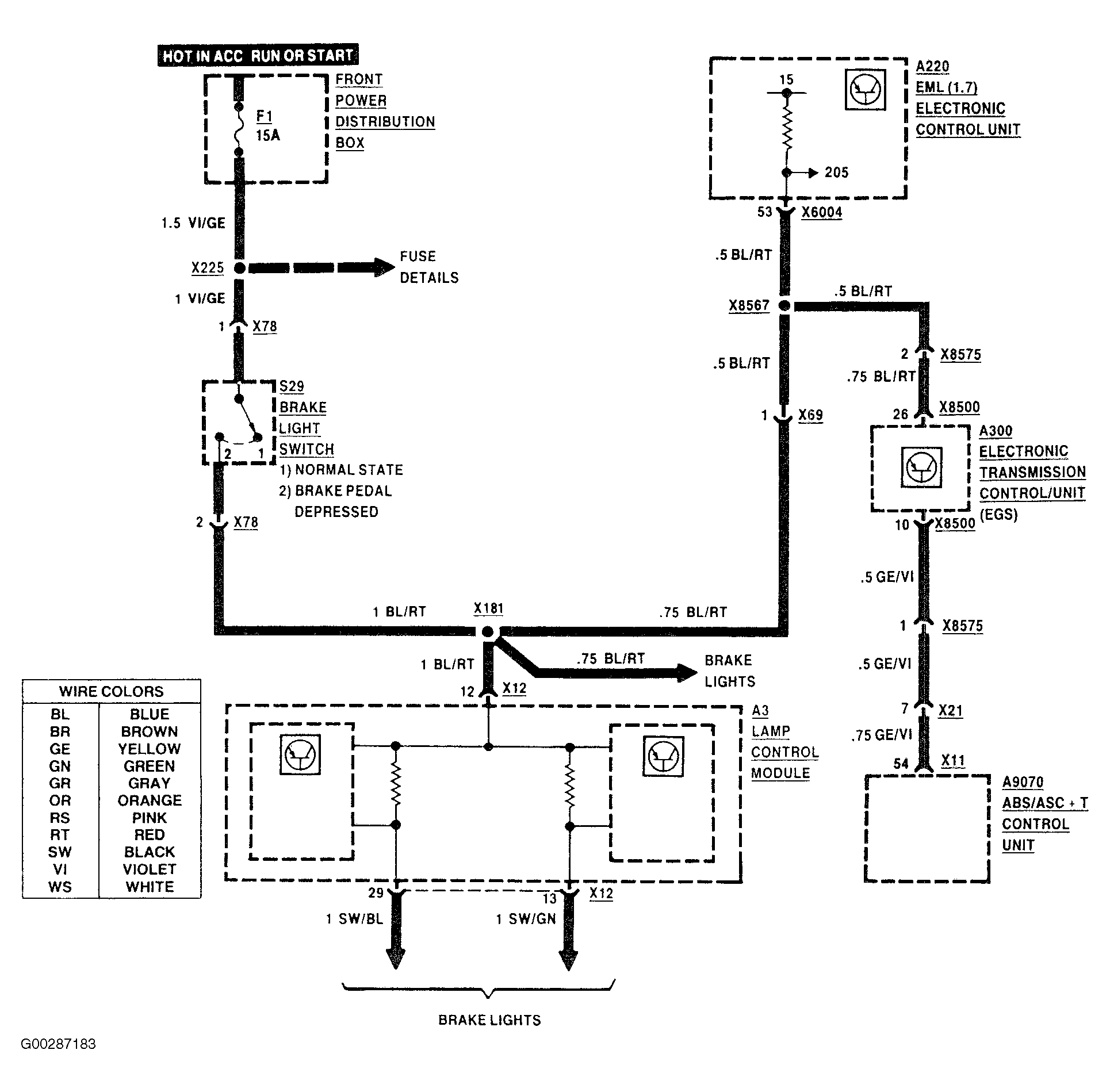

Fig 7: Electronic Throttle Control Wiring Diagram - 7 Series (7 Of 13)

G00287183

Courtesy of BMW OF NORTH AMERICA, INC.

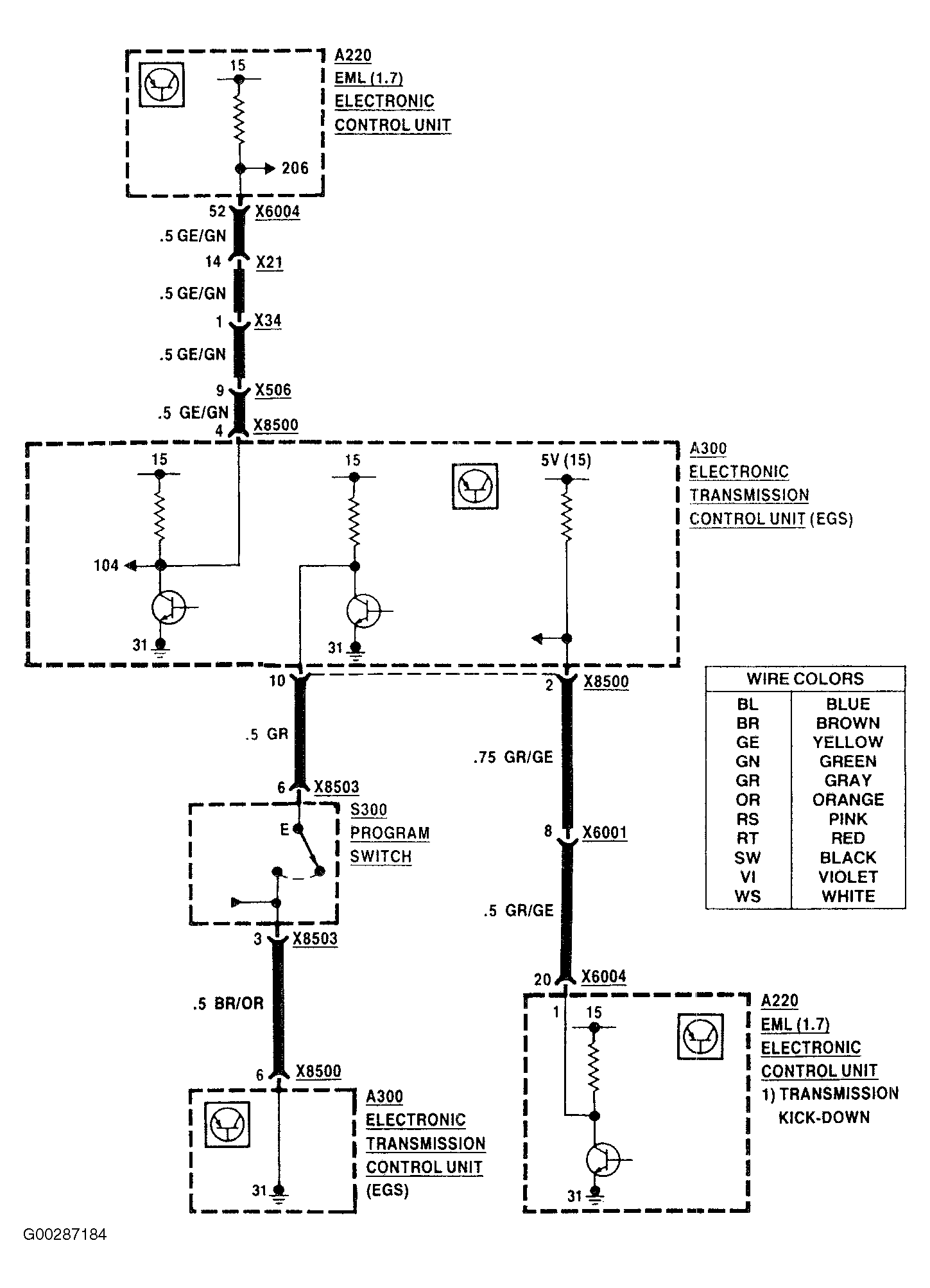

Fig 8: Electronic Throttle Control Wiring Diagram - 7 Series (8 Of 13)

G00287184

Courtesy of BMW OF NORTH AMERICA, INC.

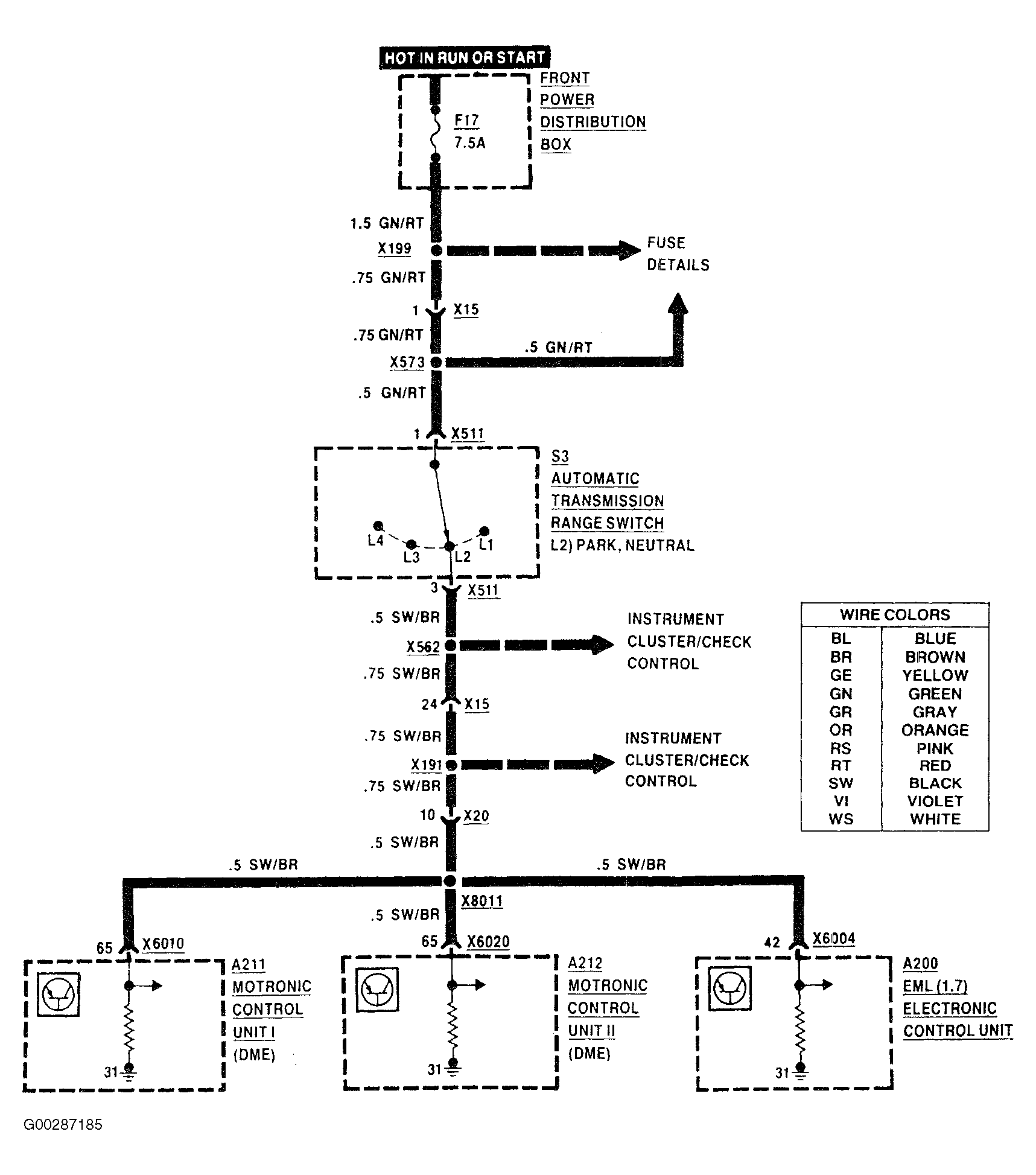

Fig 9: Electronic Throttle Control Wiring Diagram - 7 Series (9 Of 13)

G00287185

Courtesy of BMW OF NORTH AMERICA, INC.

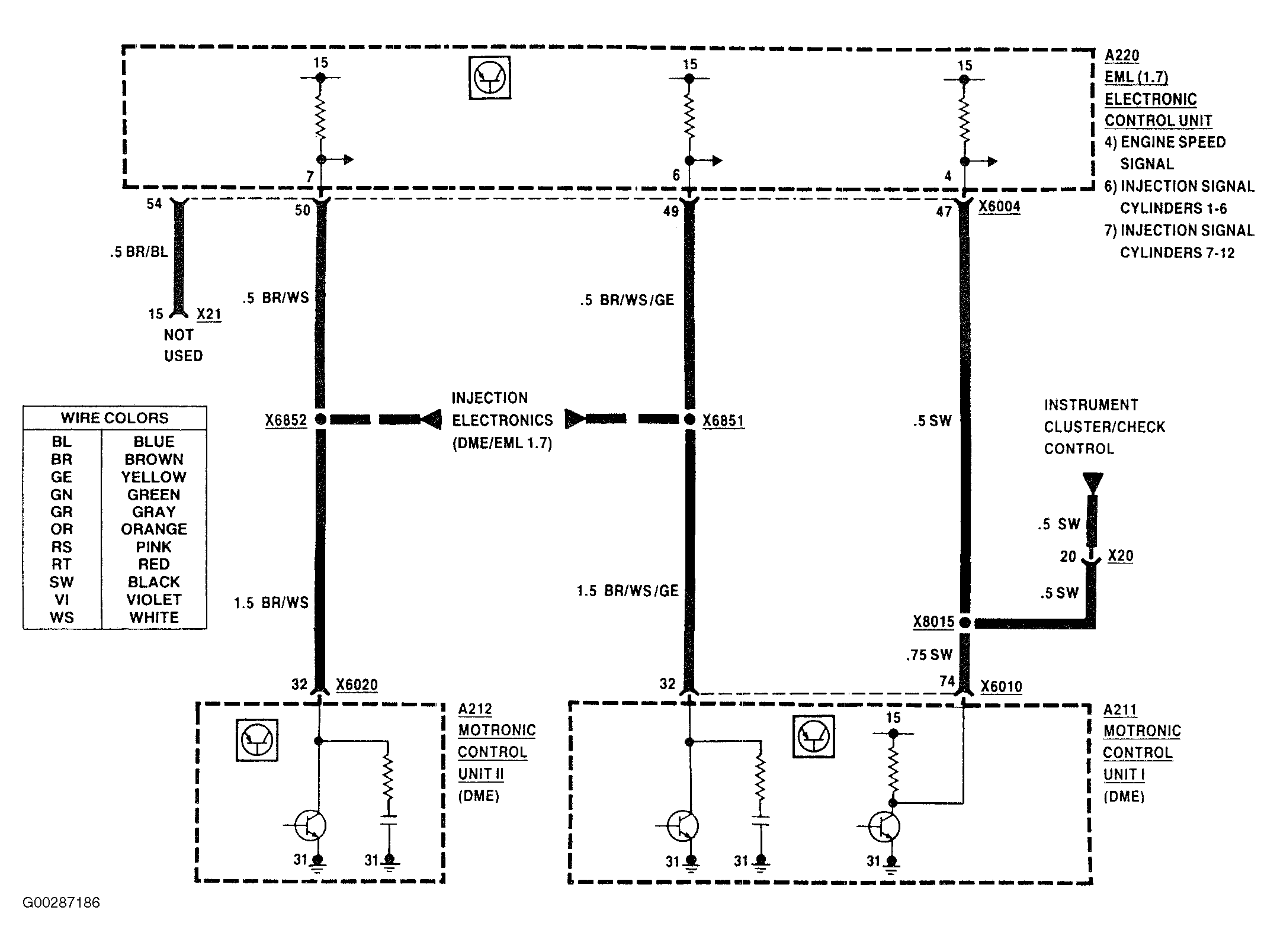

Fig 10: Electronic Throttle Control Wiring Diagram - 7 Series (10 Of 13)

G00287186

Courtesy of BMW OF NORTH AMERICA, INC.

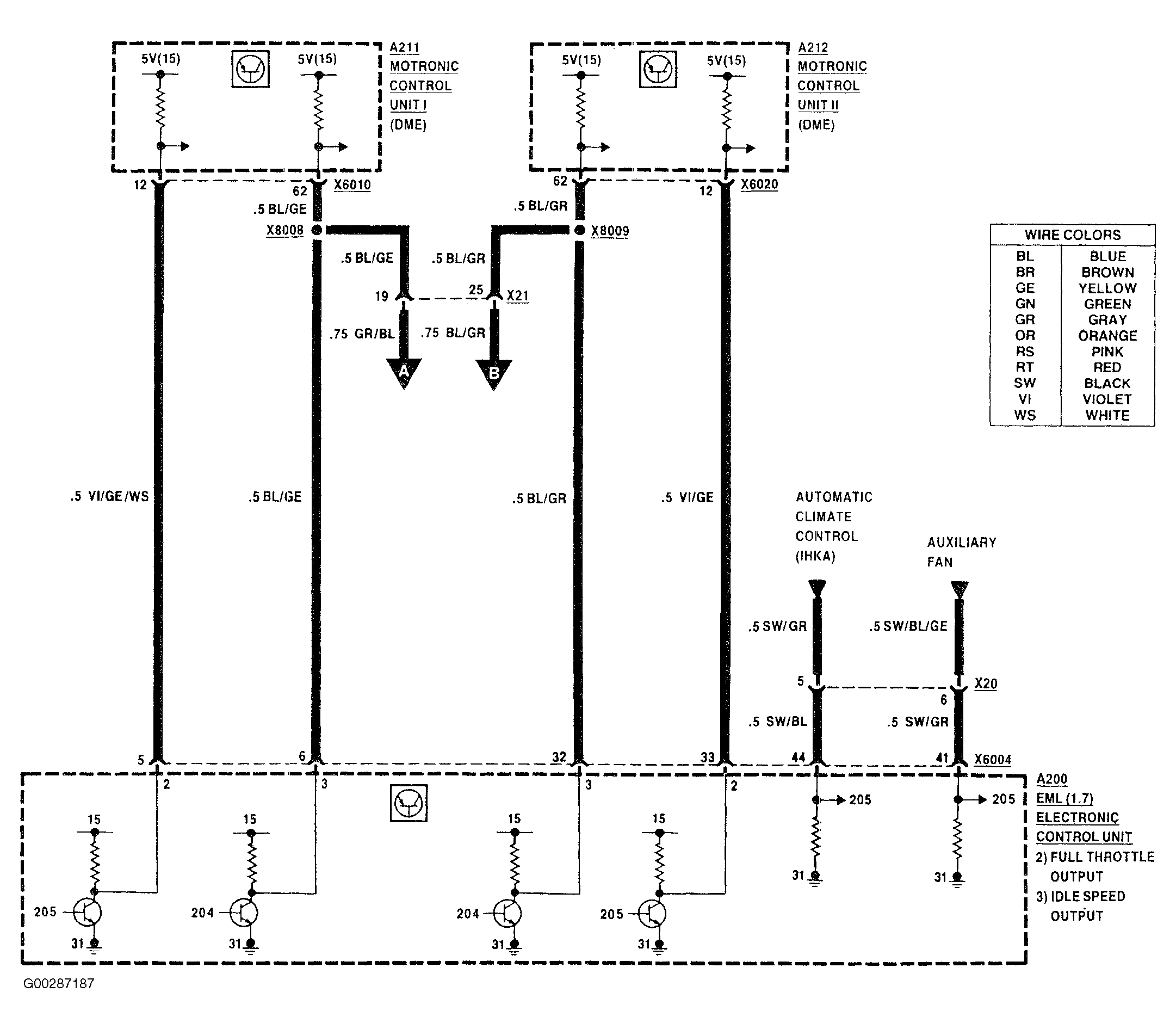

Fig 11: Electronic Throttle Control Wiring Diagram - 7 Series (11 Of 13)

G00287187

Courtesy of BMW OF NORTH AMERICA, INC.

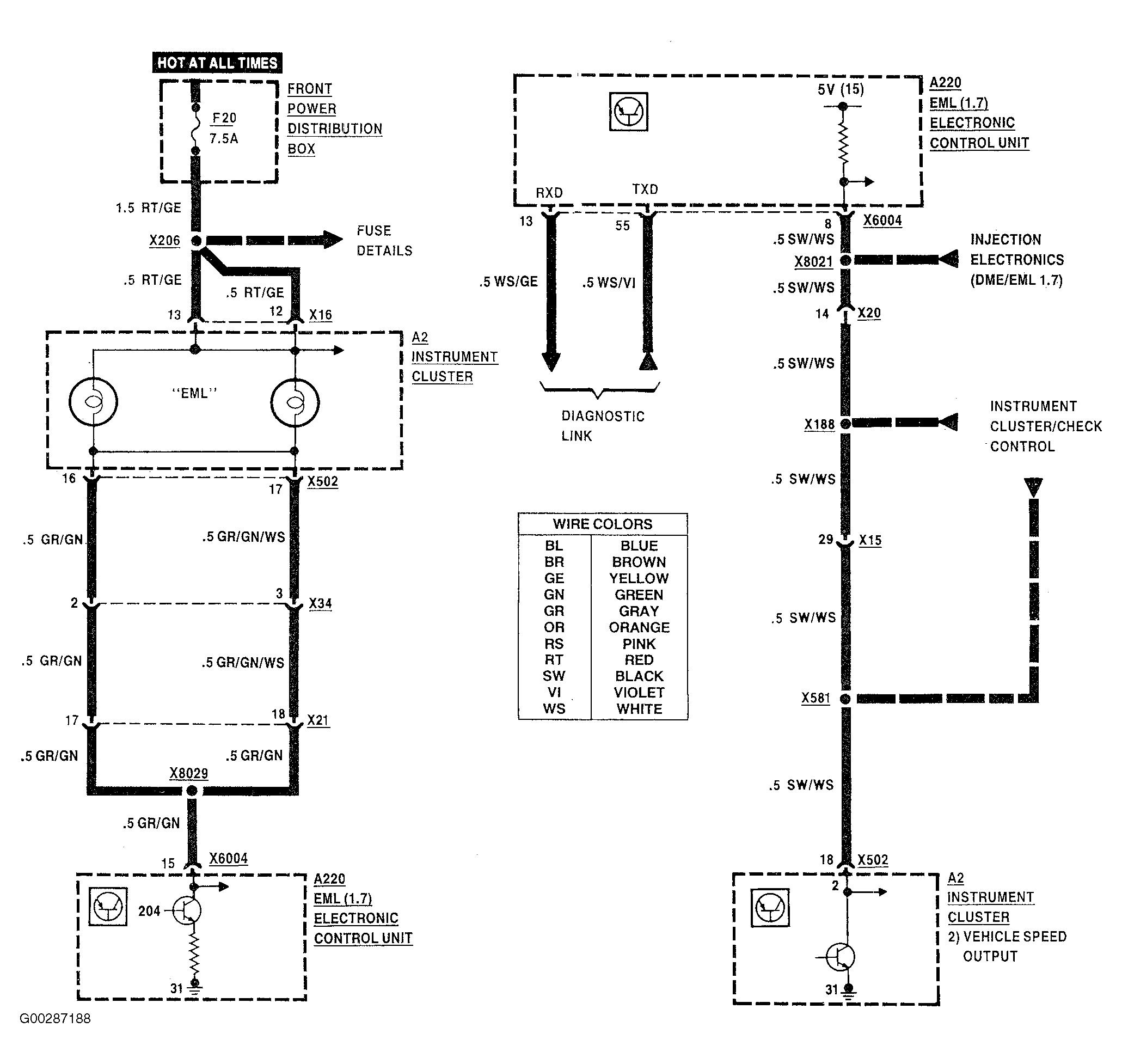

Fig 12: Electronic Throttle Control Wiring Diagram - 7 Series (12 Of 13)

G00287188

Courtesy of BMW OF NORTH AMERICA, INC.

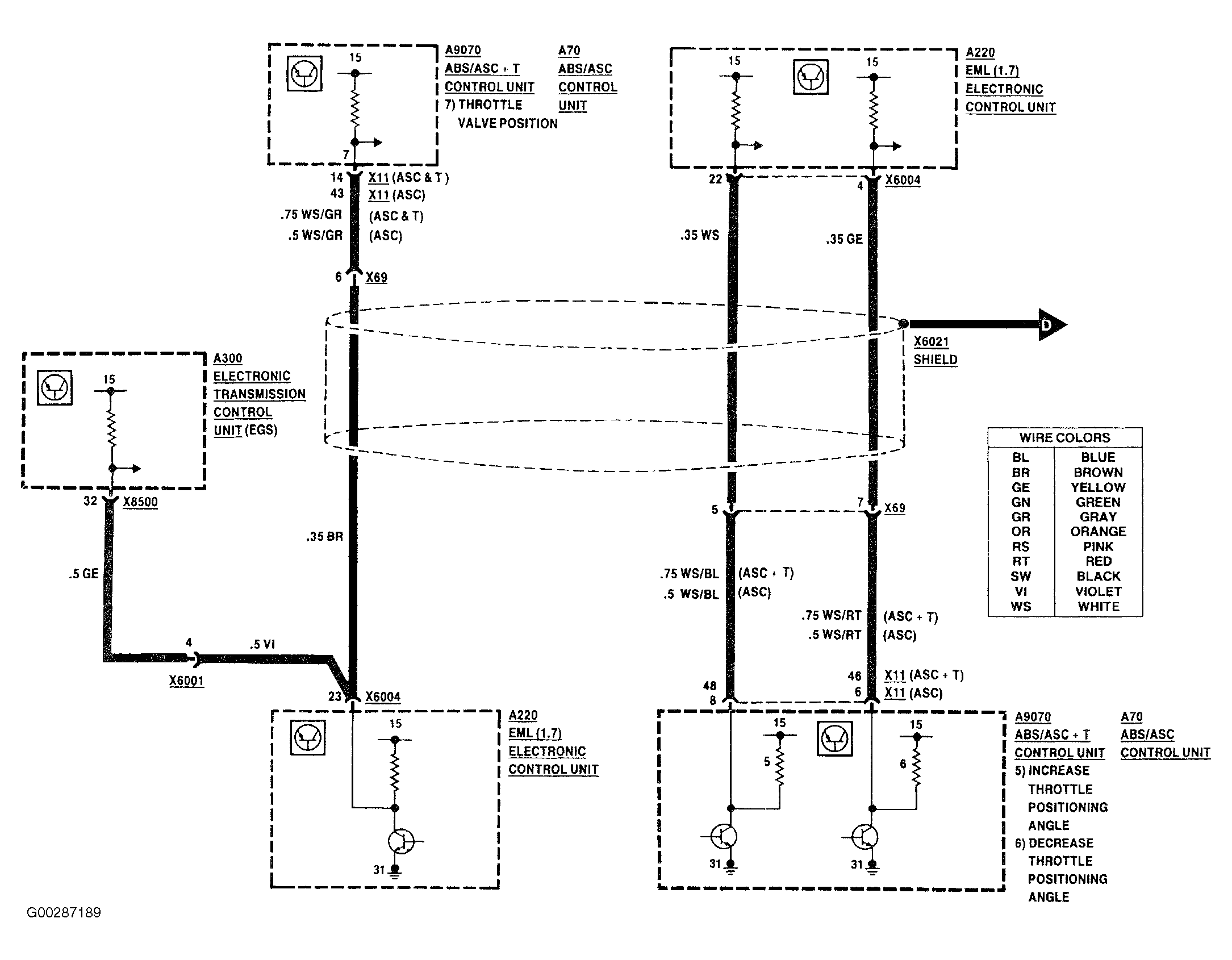

Fig 13: Electronic Throttle Control Wiring Diagram - 7 Series (13 Of 13)

G00287189

Courtesy of BMW OF NORTH AMERICA, INC.

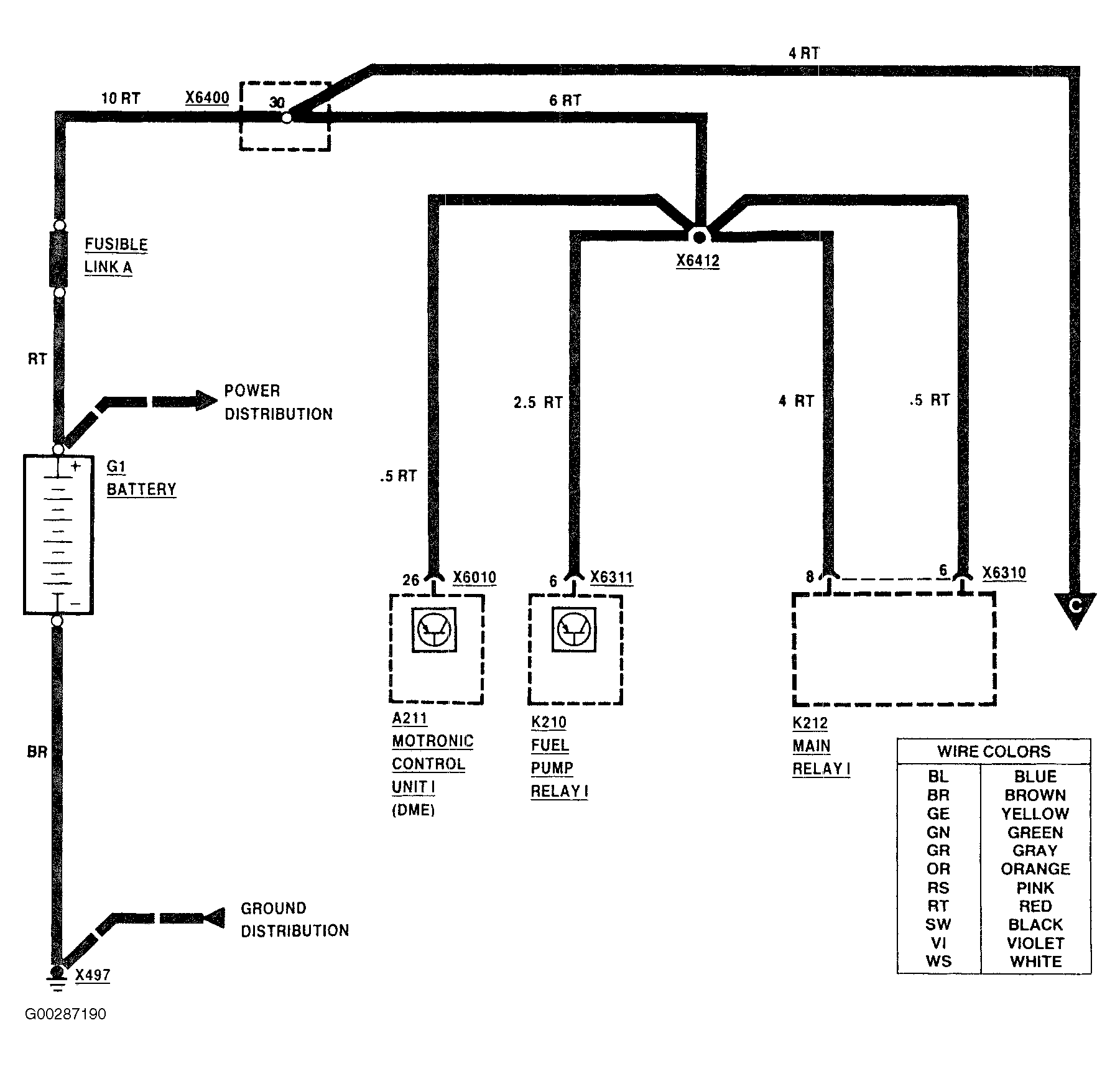

Fig 14: Injection Electronics Power Distribution Wiring Diagram- 7 Series (1 Of 2)

G00287190

Courtesy of BMW OF NORTH AMERICA, INC.

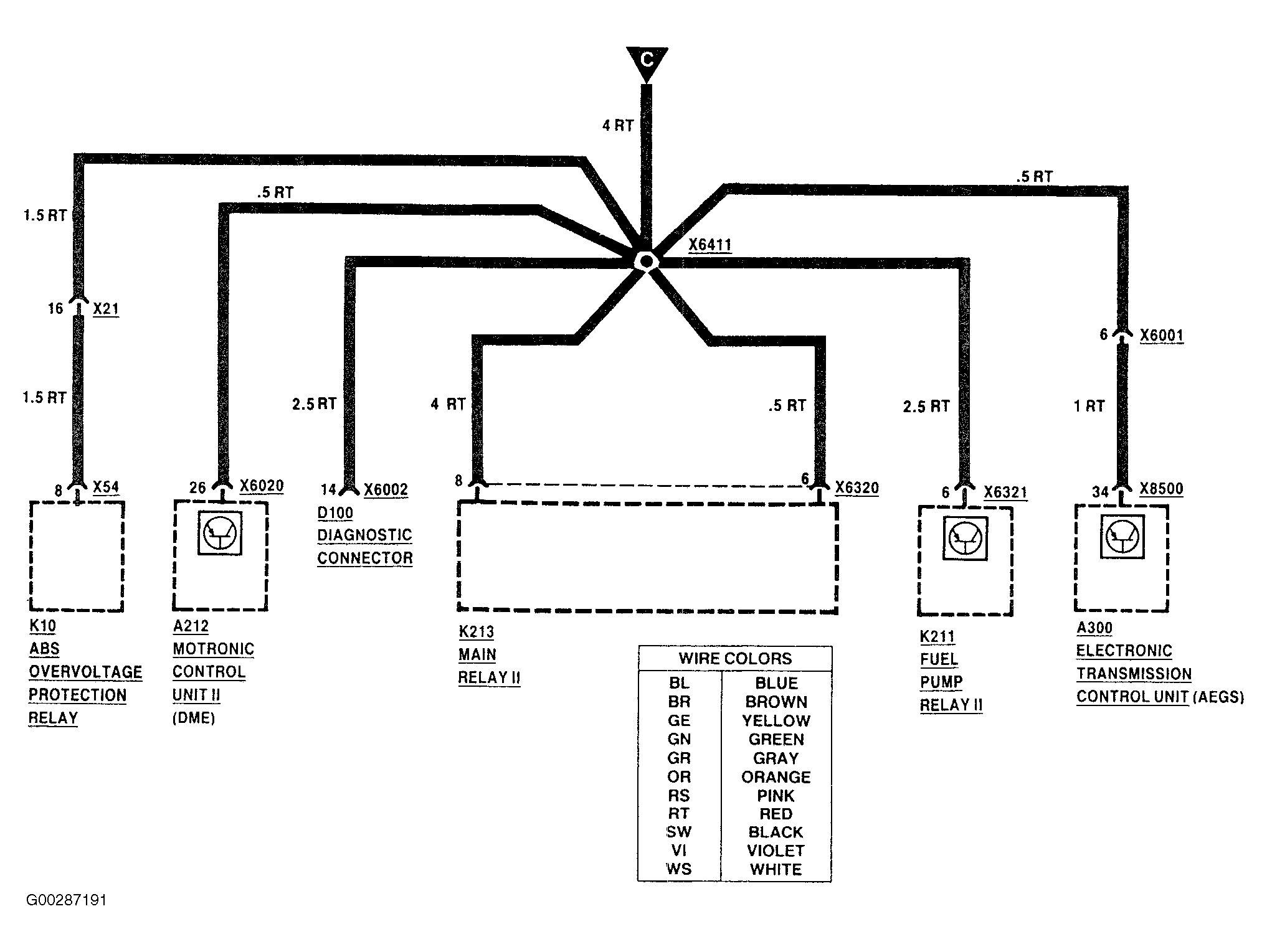

Fig 15: Injection Electronics Power Distribution Wiring Diagram - 7 Series (2 Of 2)

G00287191

Courtesy of BMW OF NORTH AMERICA, INC.

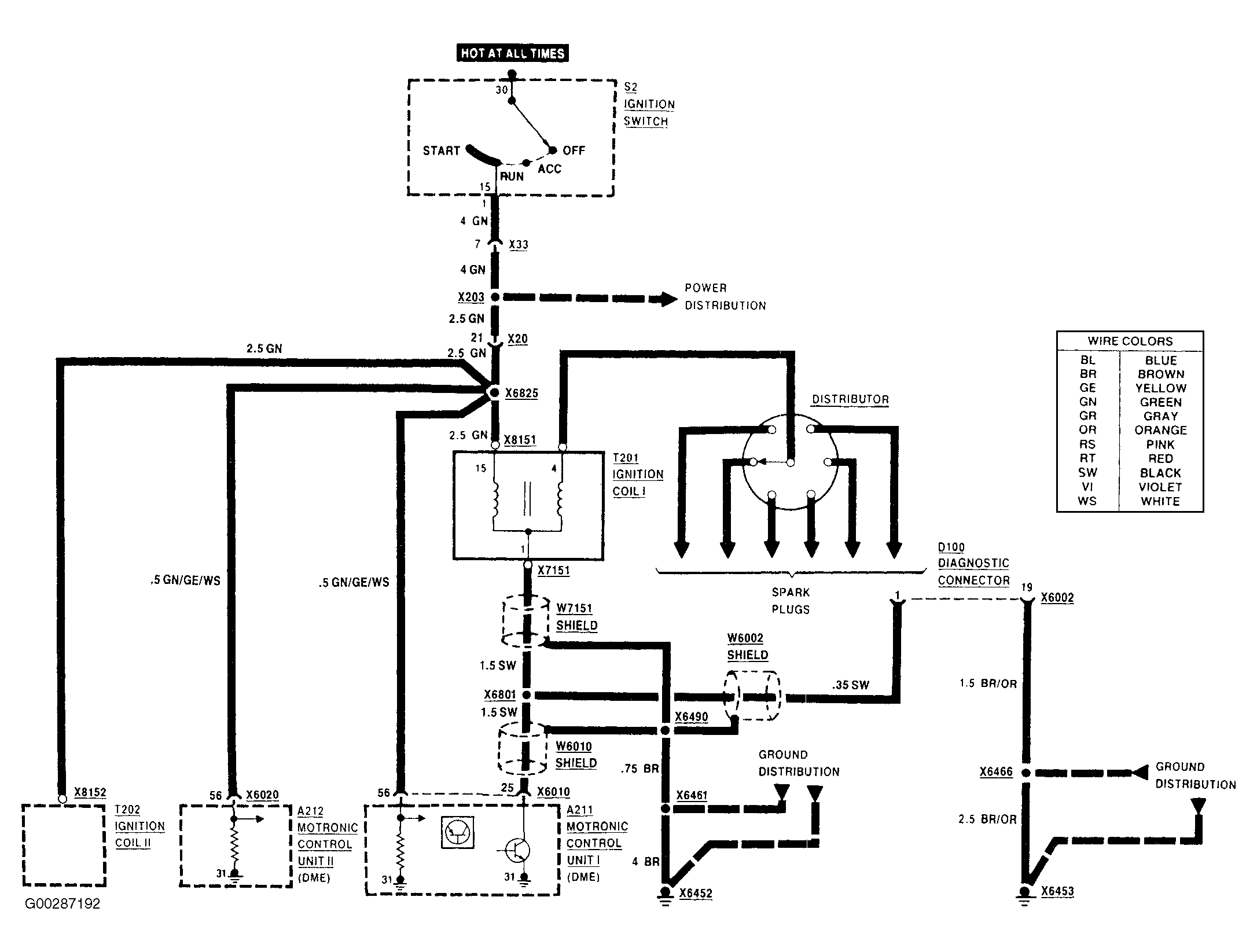

Fig 16: Motronic Control Unit I Wiring Diagram - 7 Series (1 Of 9)

G00287192

Courtesy of BMW OF NORTH AMERICA, INC.

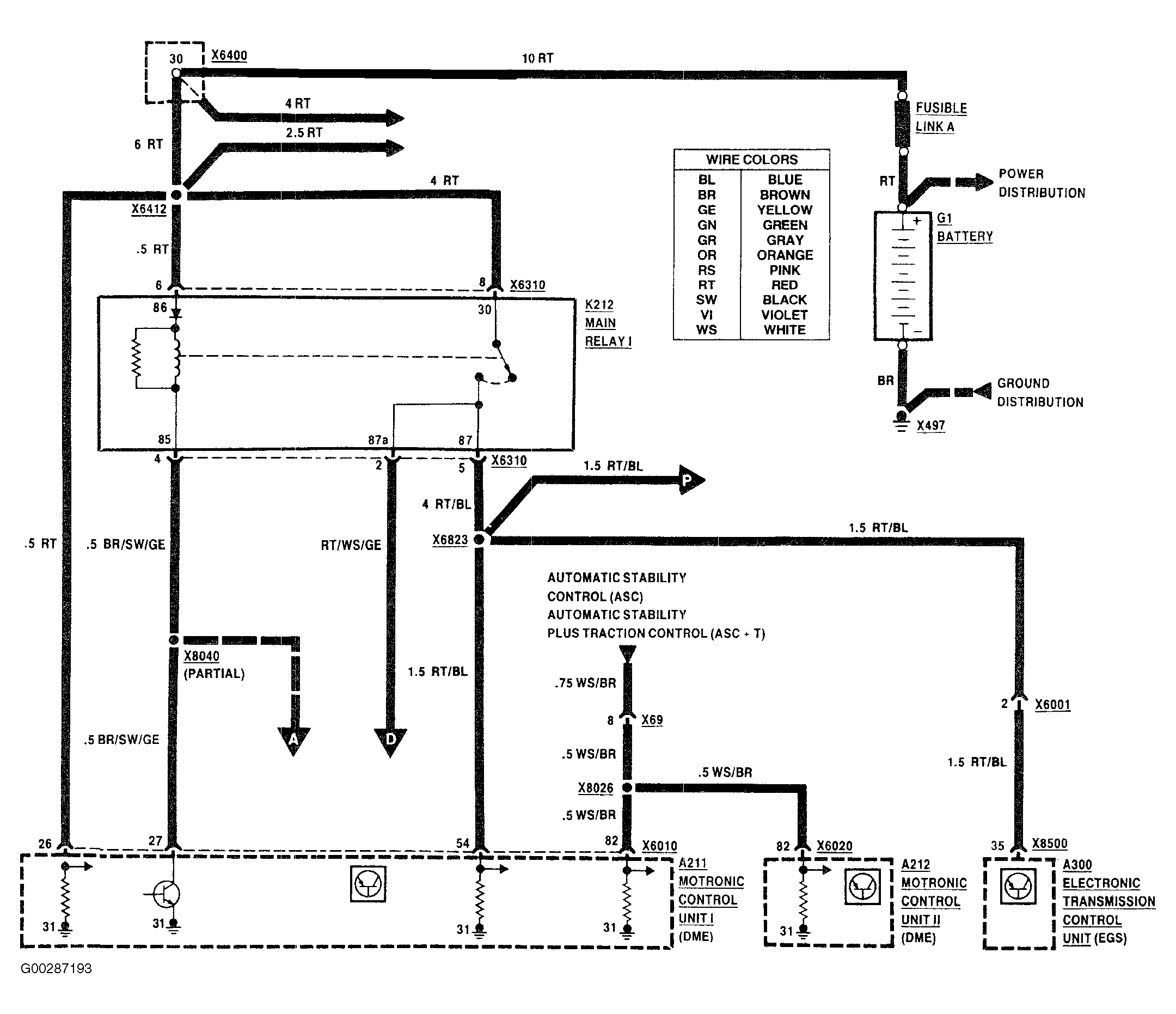

Fig 17: Motronic Control Unit I Wiring Diagram - 7 Series (2 Of 9)

G00287193

Courtesy of BMW OF NORTH AMERICA, INC.

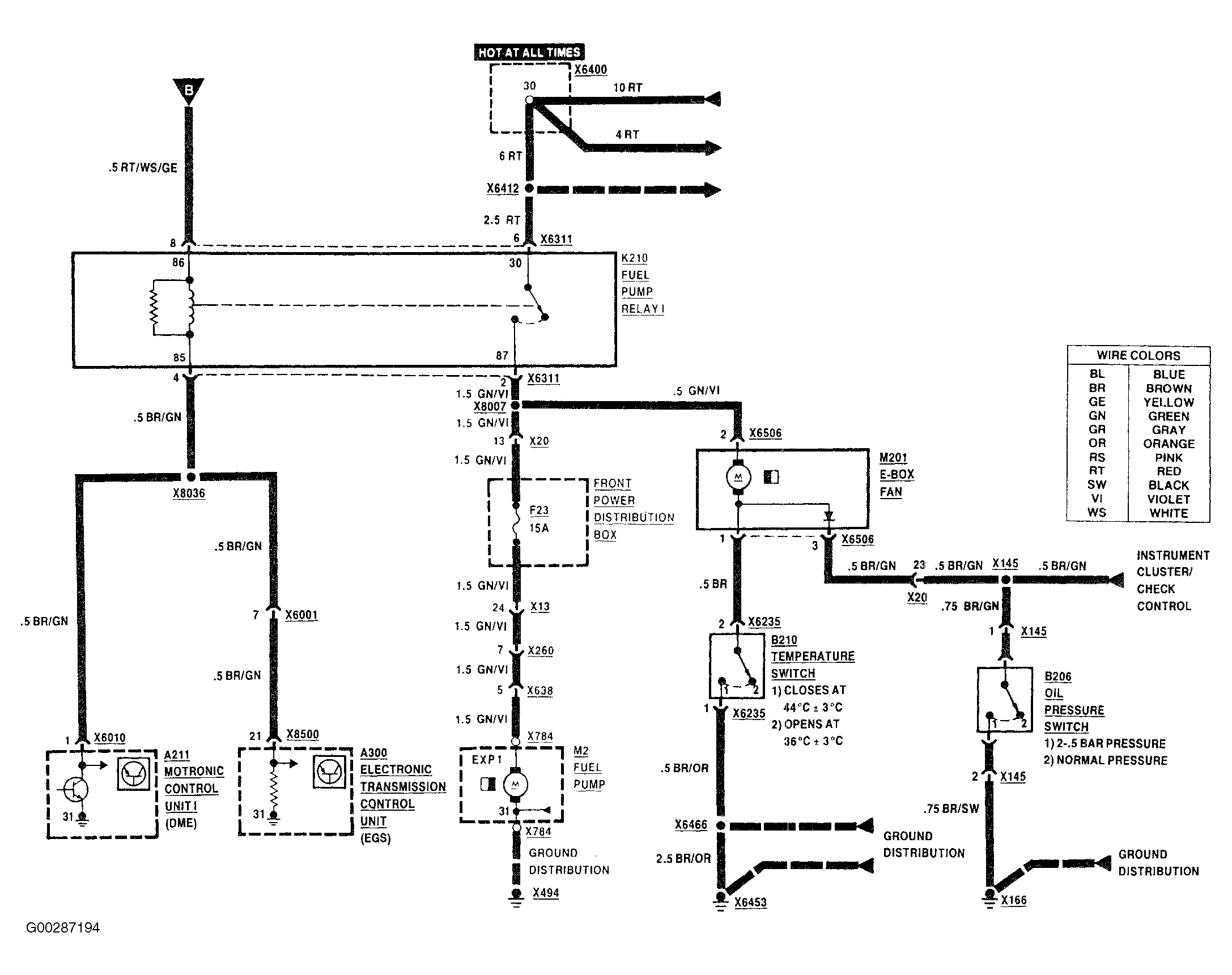

Fig 18: Motronic Control Unit I Wiring Diagram - 7 Series (3 Of 9)

G00287194

Courtesy of BMW OF NORTH AMERICA, INC.

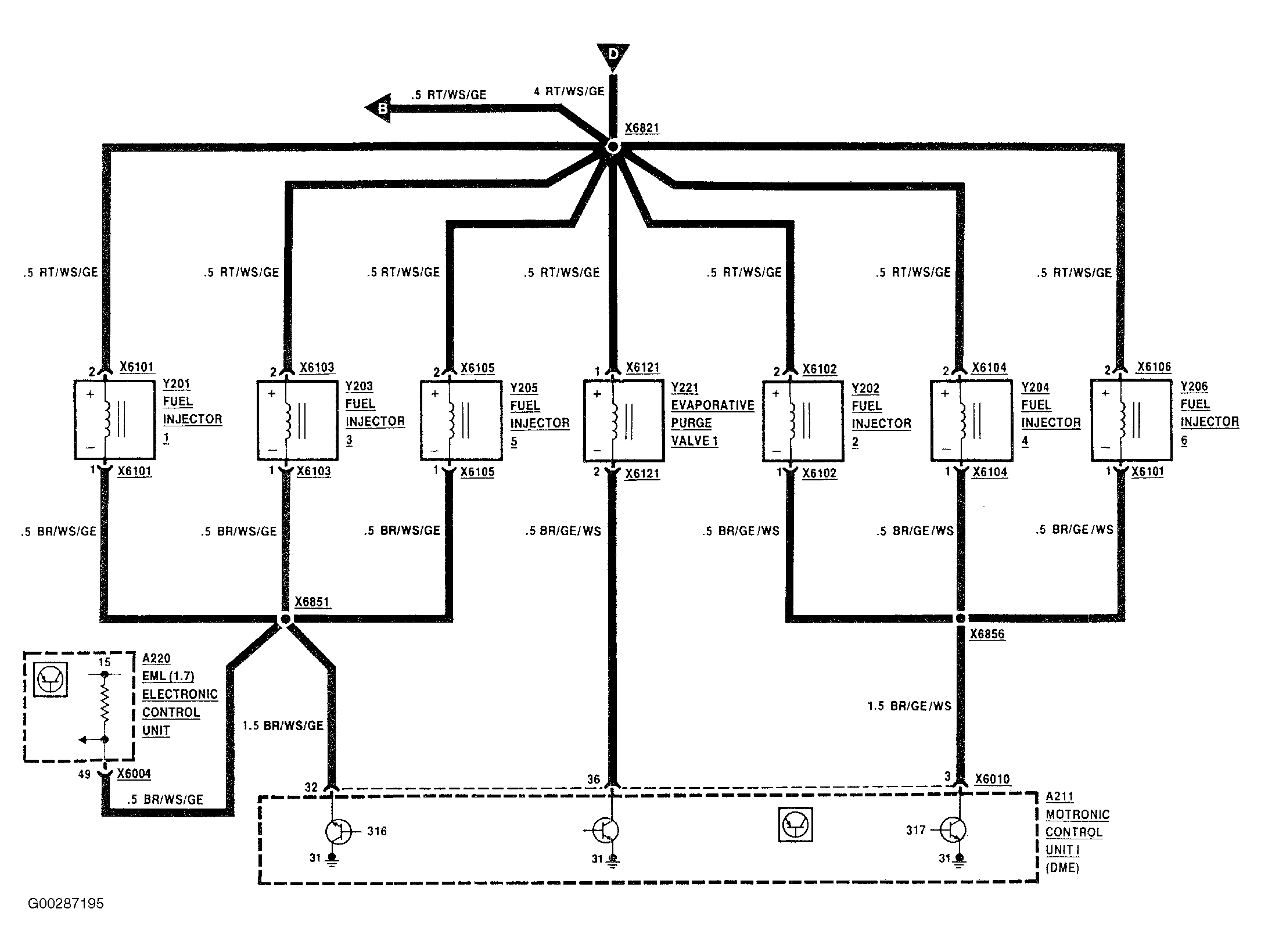

Fig 19: Motronic Control Unit I Wiring Diagram - 7 Series (4 Of 9)

G00287195

Courtesy of BMW OF NORTH AMERICA, INC.

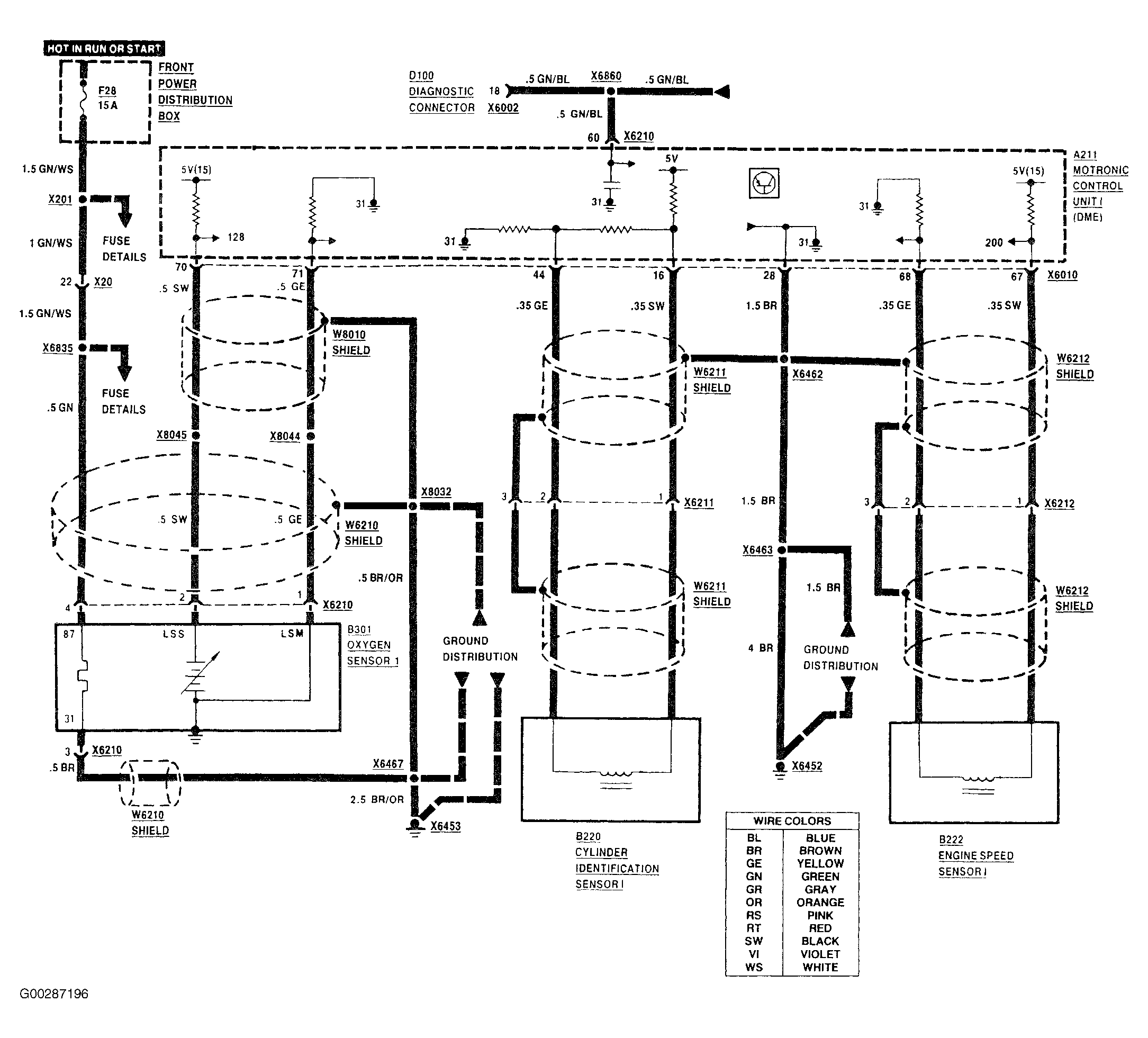

Fig 20: Motronic Control Unit I Wiring Diagram - 7 Series (5 Of 9)

G00287196

Courtesy of BMW OF NORTH AMERICA, INC.

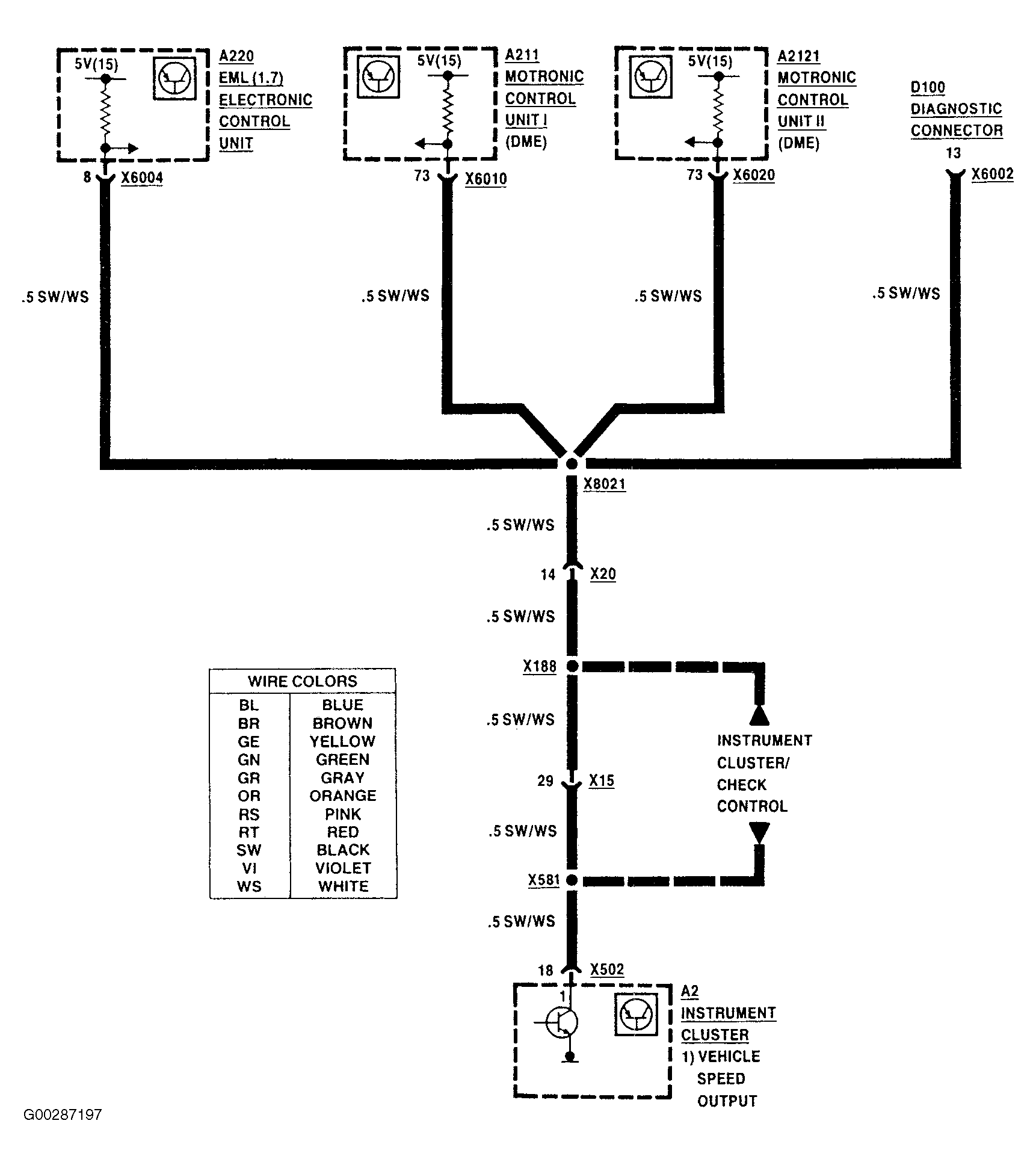

Fig 21: Motronic Control Unit I Wiring Diagram - 7 Series (6 Of 9)

G00287197

Courtesy of BMW OF NORTH AMERICA, INC.

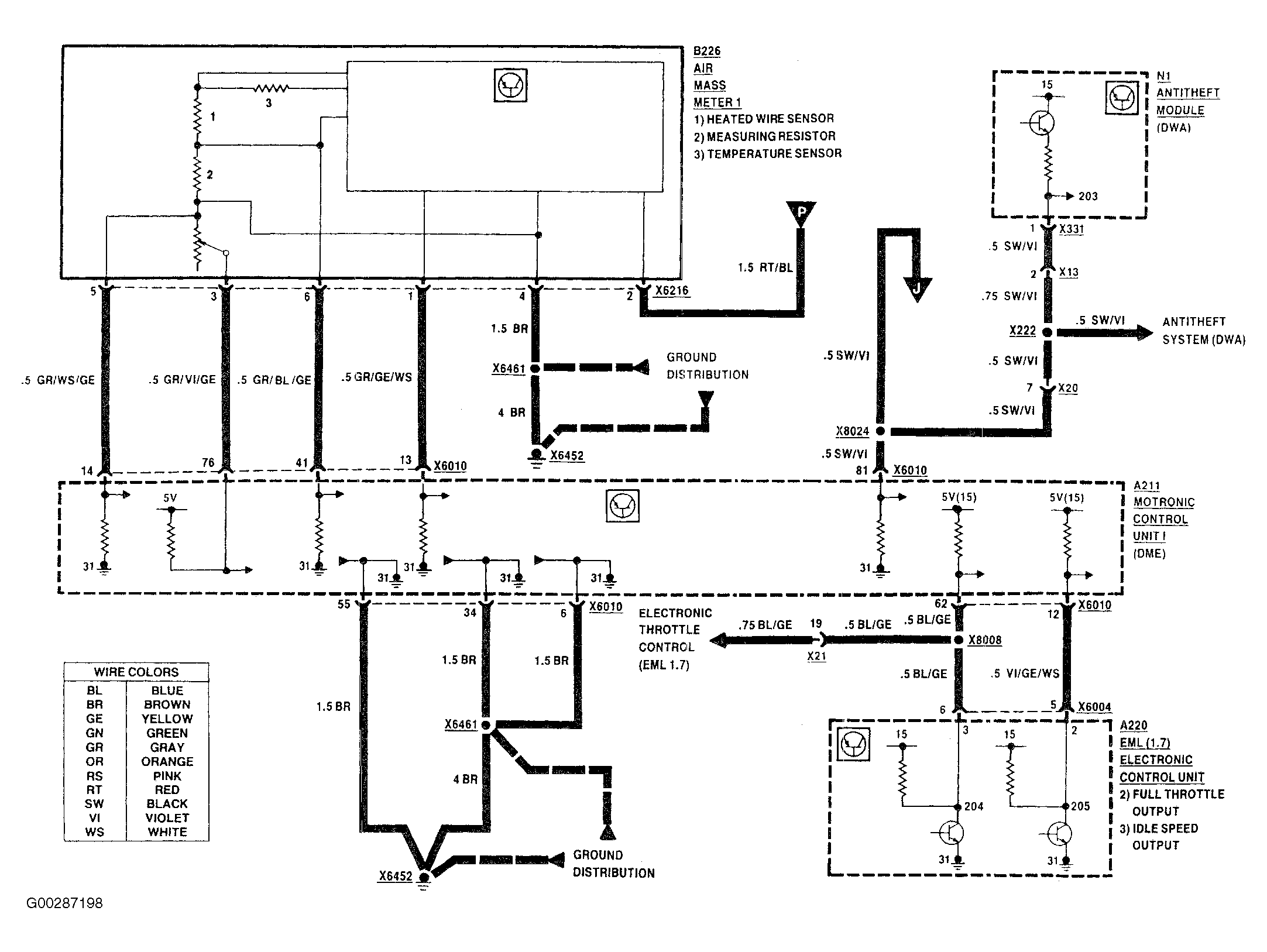

Fig 22: Motronic Control Unit I Wiring Diagram - 7 Series (7 Of 9)

G00287198

Courtesy of BMW OF NORTH AMERICA, INC.

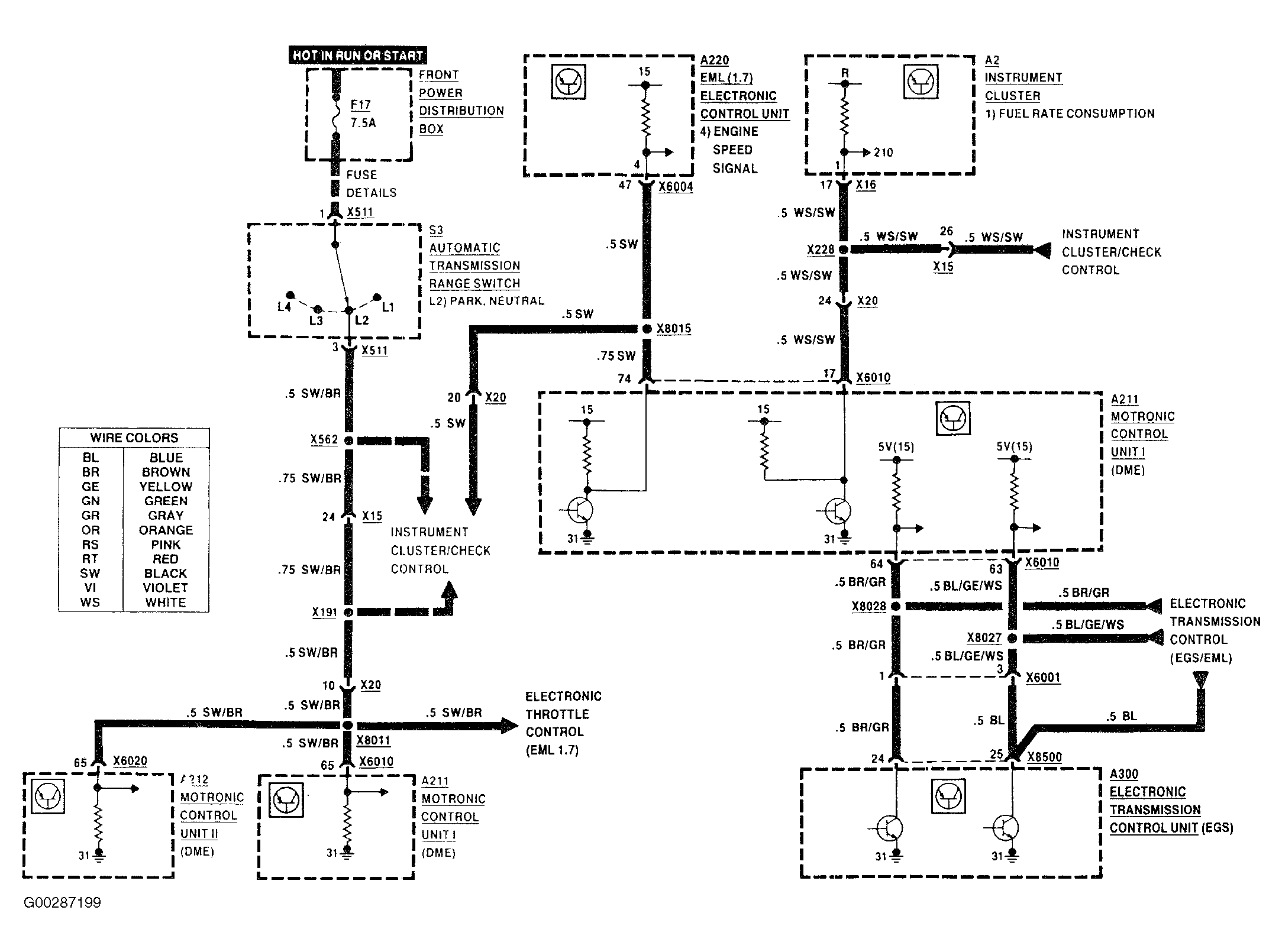

Fig 23: Motronic Control Unit I Wiring Diagram - 7 Series (8 Of 9)

G00287199

Courtesy of BMW OF NORTH AMERICA, INC.

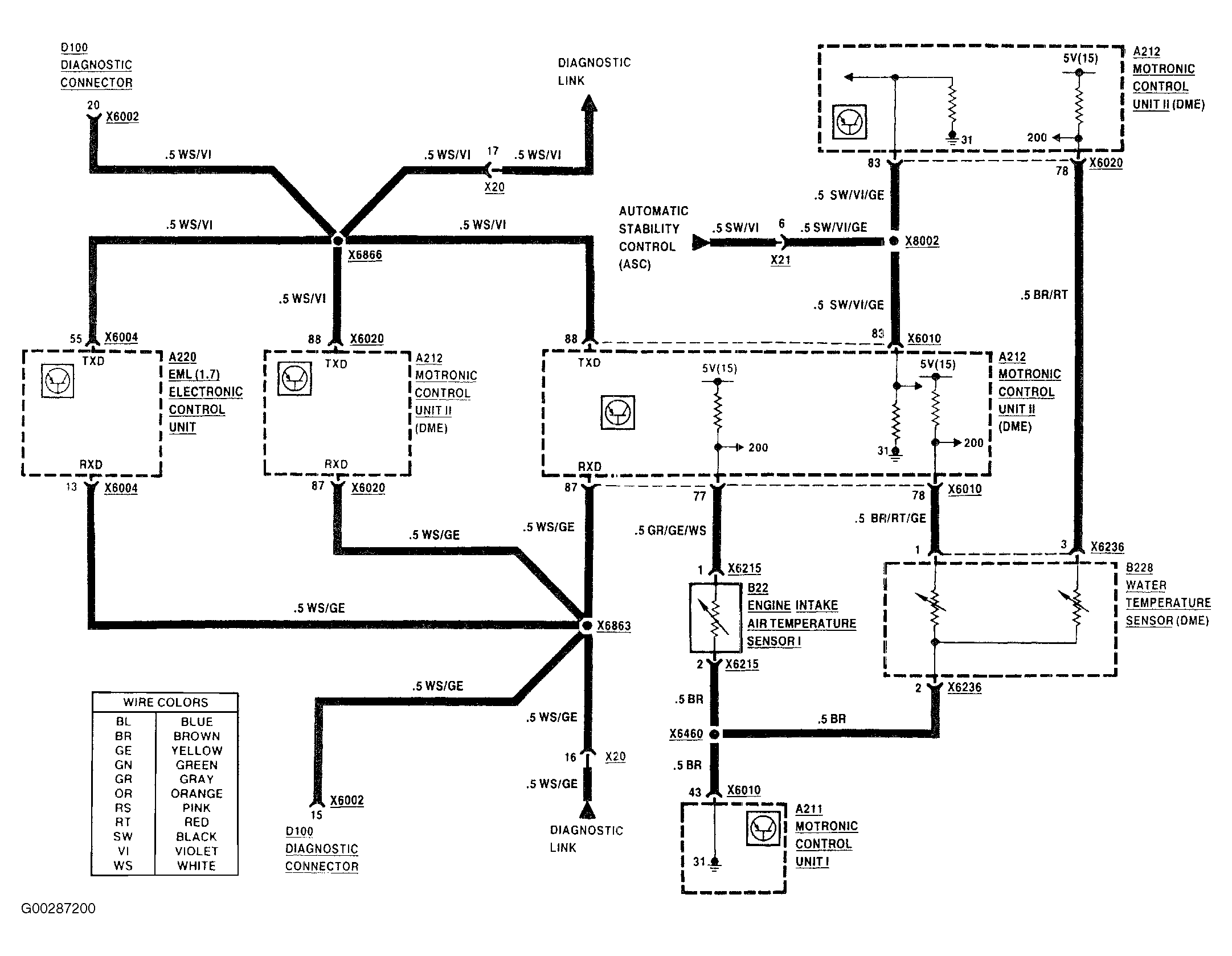

Fig 24: Motronic Control Unit I Wiring Diagram - 7 Series (9 Of 9)

G00287200

Courtesy of BMW OF NORTH AMERICA, INC.

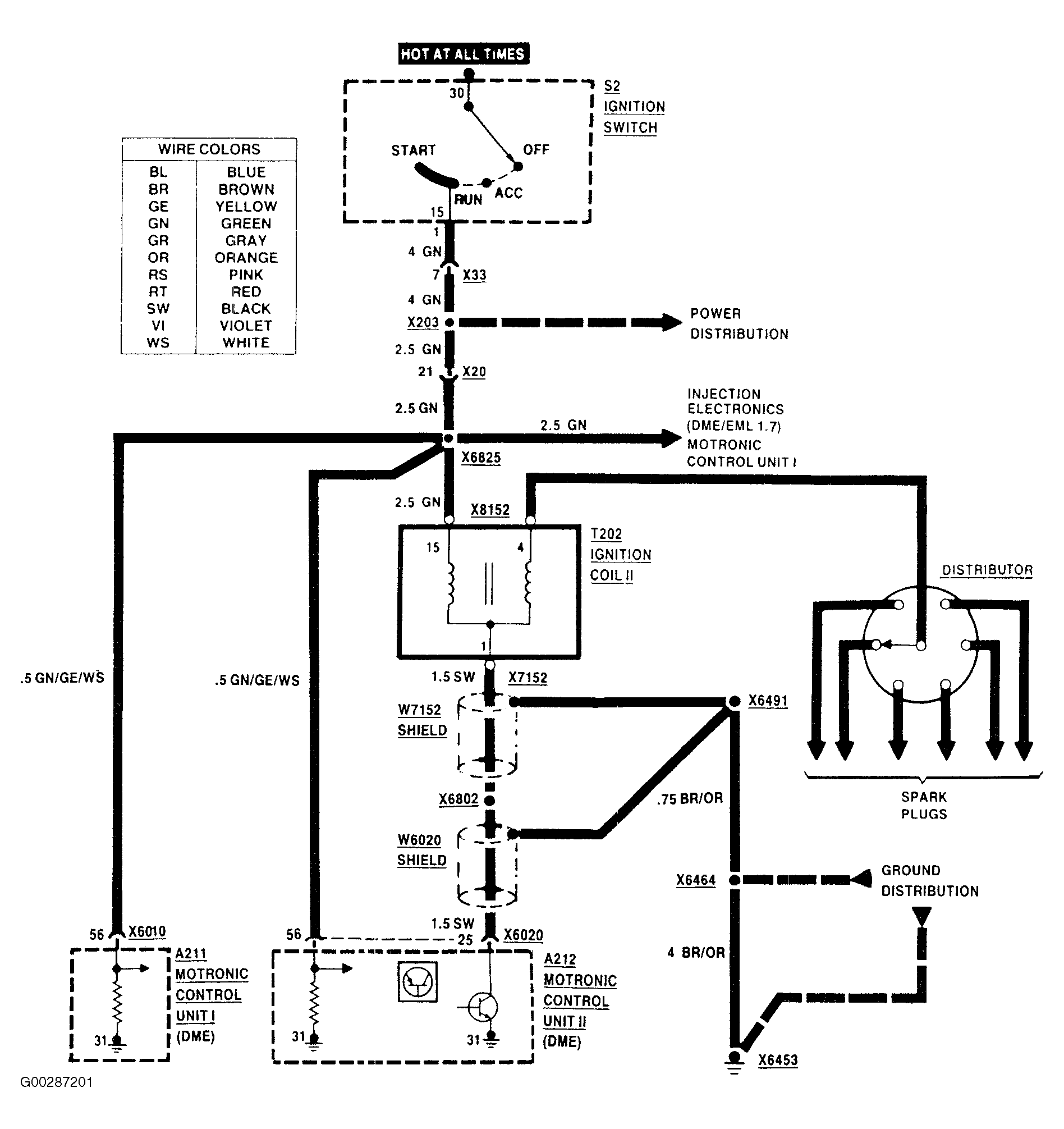

Fig 25: Motronic Control Unit II Wiring Diagram - 7 Series (1 Of 9)

G00287201

Courtesy of BMW OF NORTH AMERICA, INC.

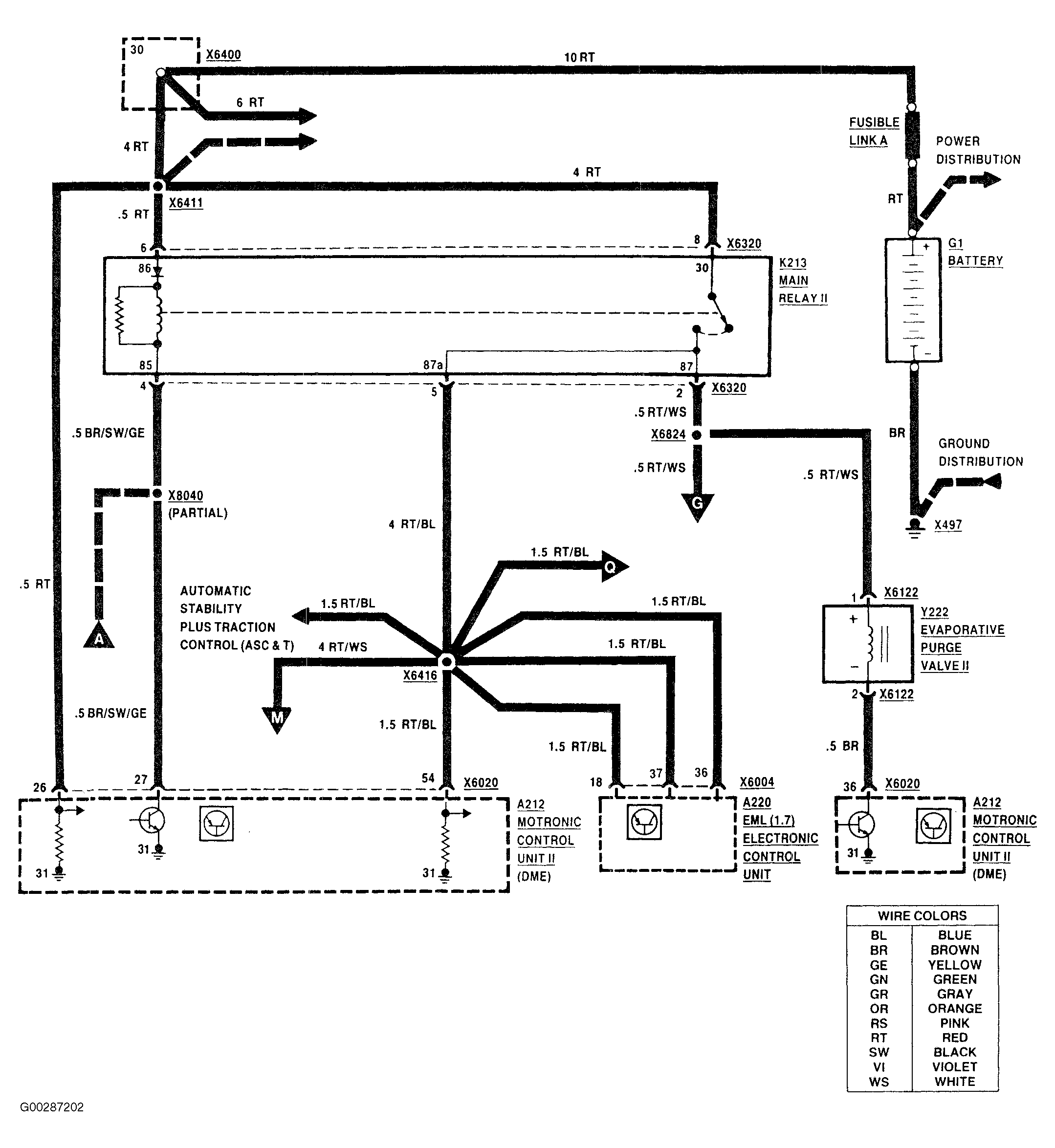

Fig 26: Motronic Control Unit II Wiring Diagram - 7 Series (2 Of 9)

G00287202

Courtesy of BMW OF NORTH AMERICA, INC.

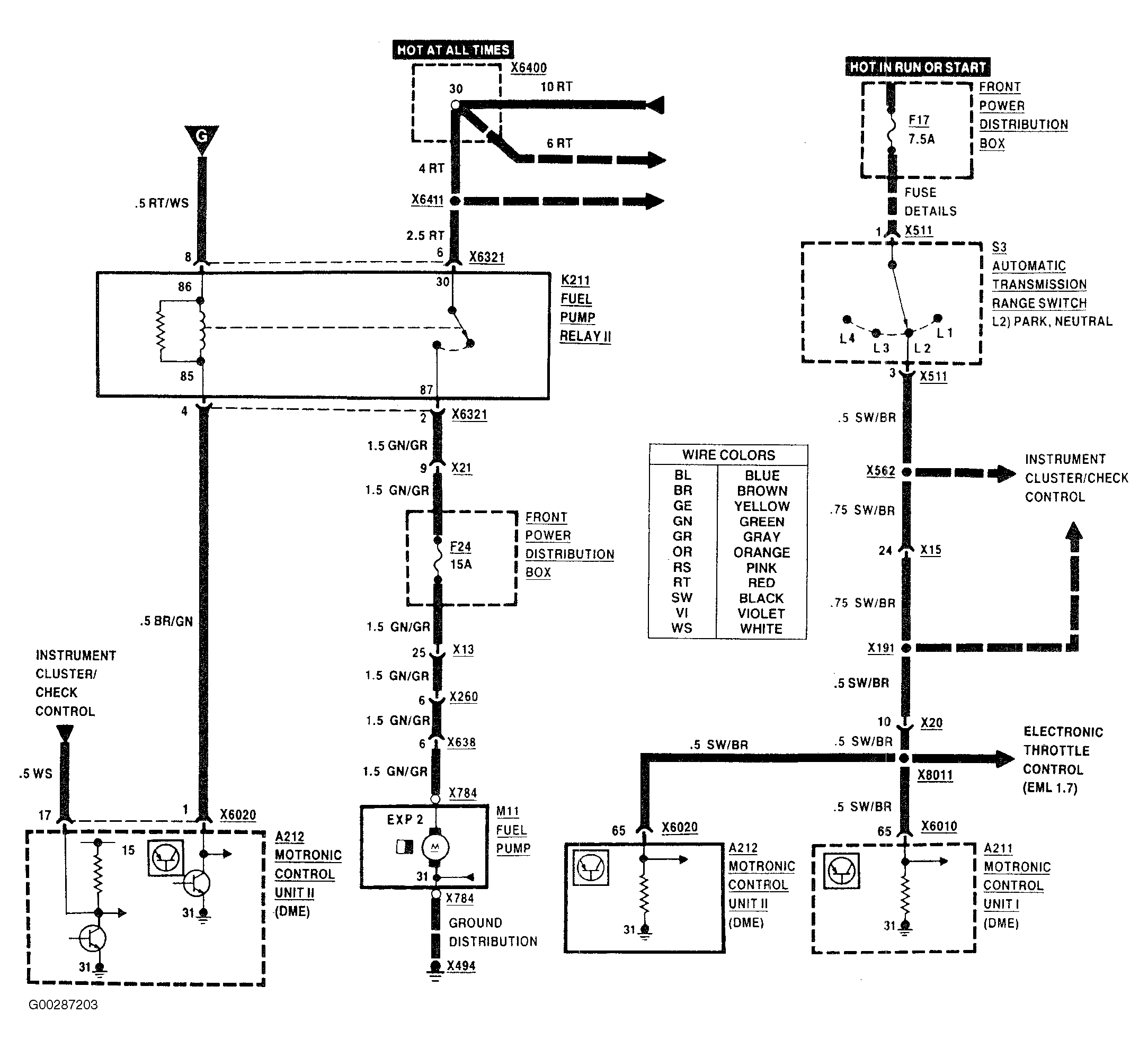

Fig 27: Motronic Control Unit II Wiring Diagram - 7 Series (3 Of 9)

G00287203

Courtesy of BMW OF NORTH AMERICA, INC.

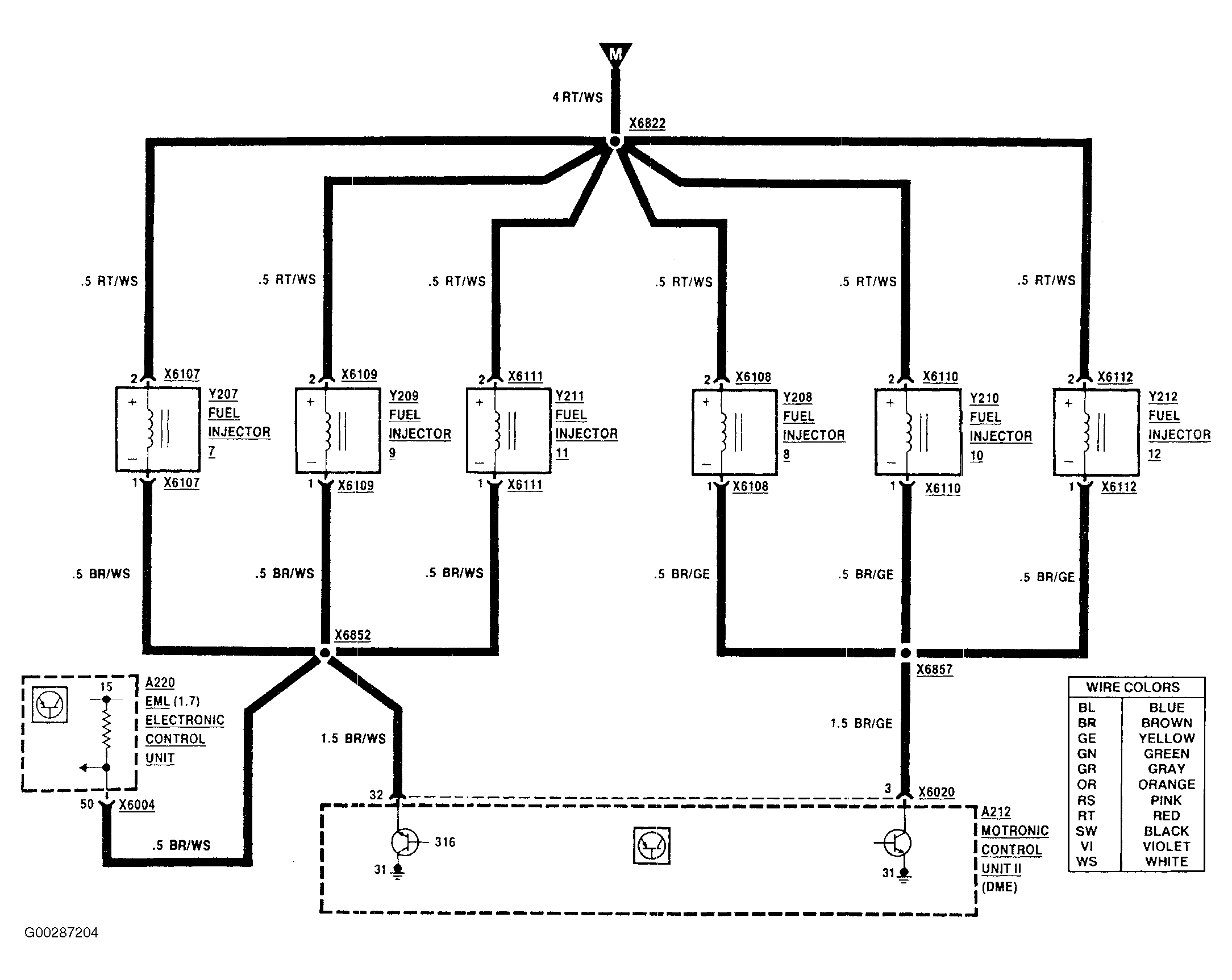

Fig 28: Motronic Control Unit II Wiring Diagram - 7 Series (4 Of 9)

G00287204

Courtesy of BMW OF NORTH AMERICA, INC.

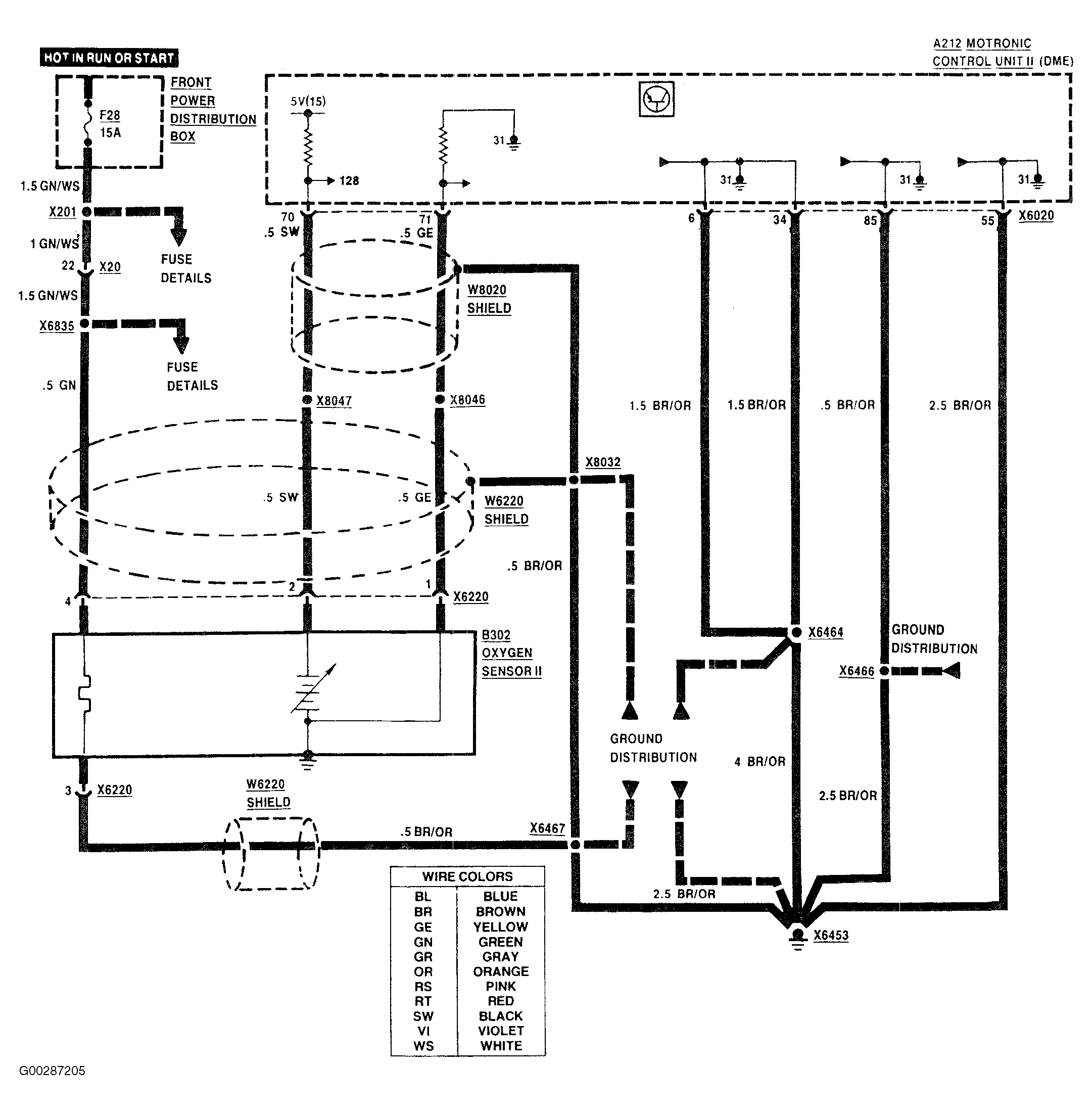

Fig 29: Motronic Control Unit II Wiring Diagram - 7 Series (5 Of 9)

G00287205

Courtesy of BMW OF NORTH AMERICA, INC.

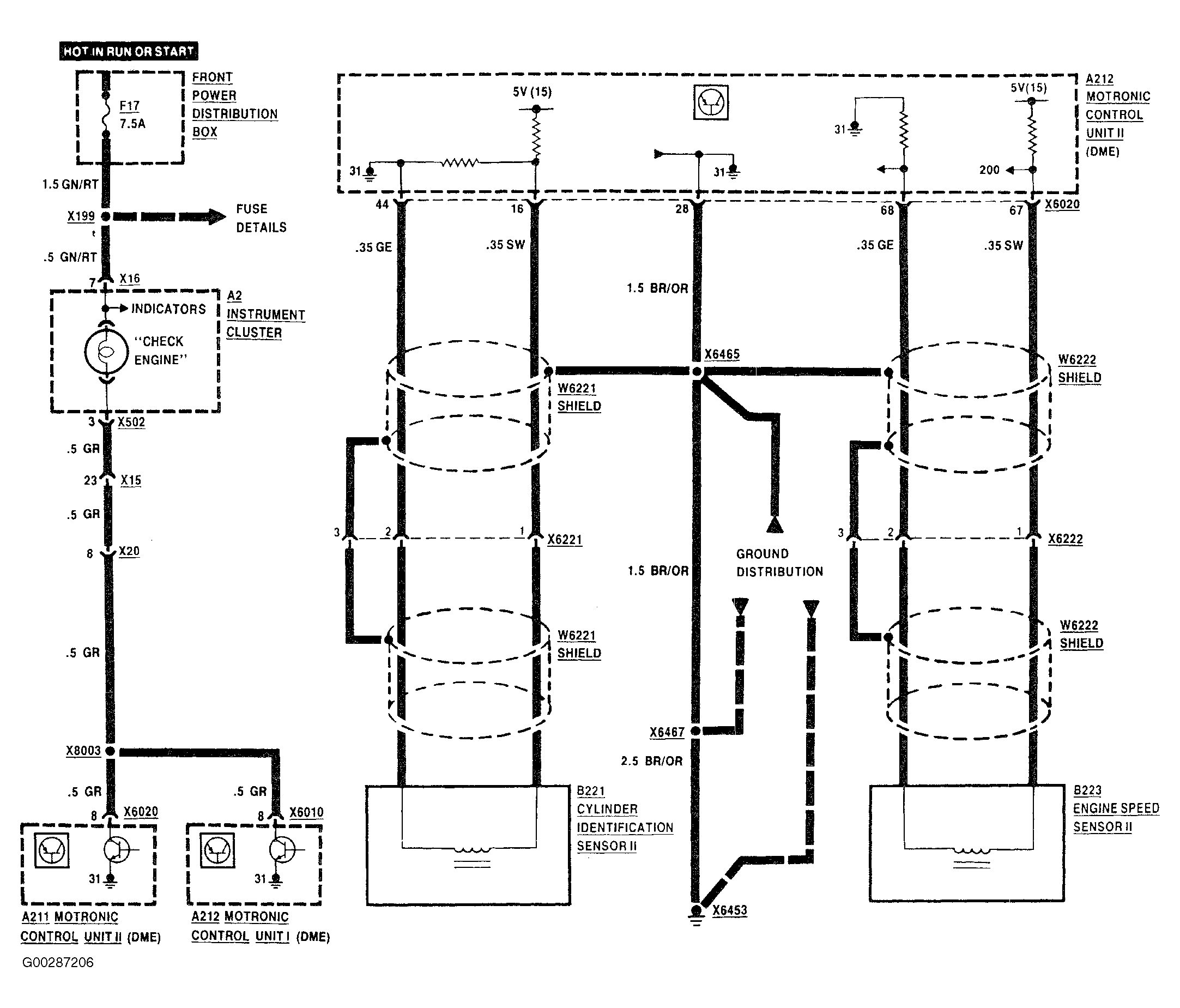

Fig 30: Motronic Control Unit II Wiring Diagram - 7 Series (6 Of 9)

G00287206

Courtesy of BMW OF NORTH AMERICA, INC.

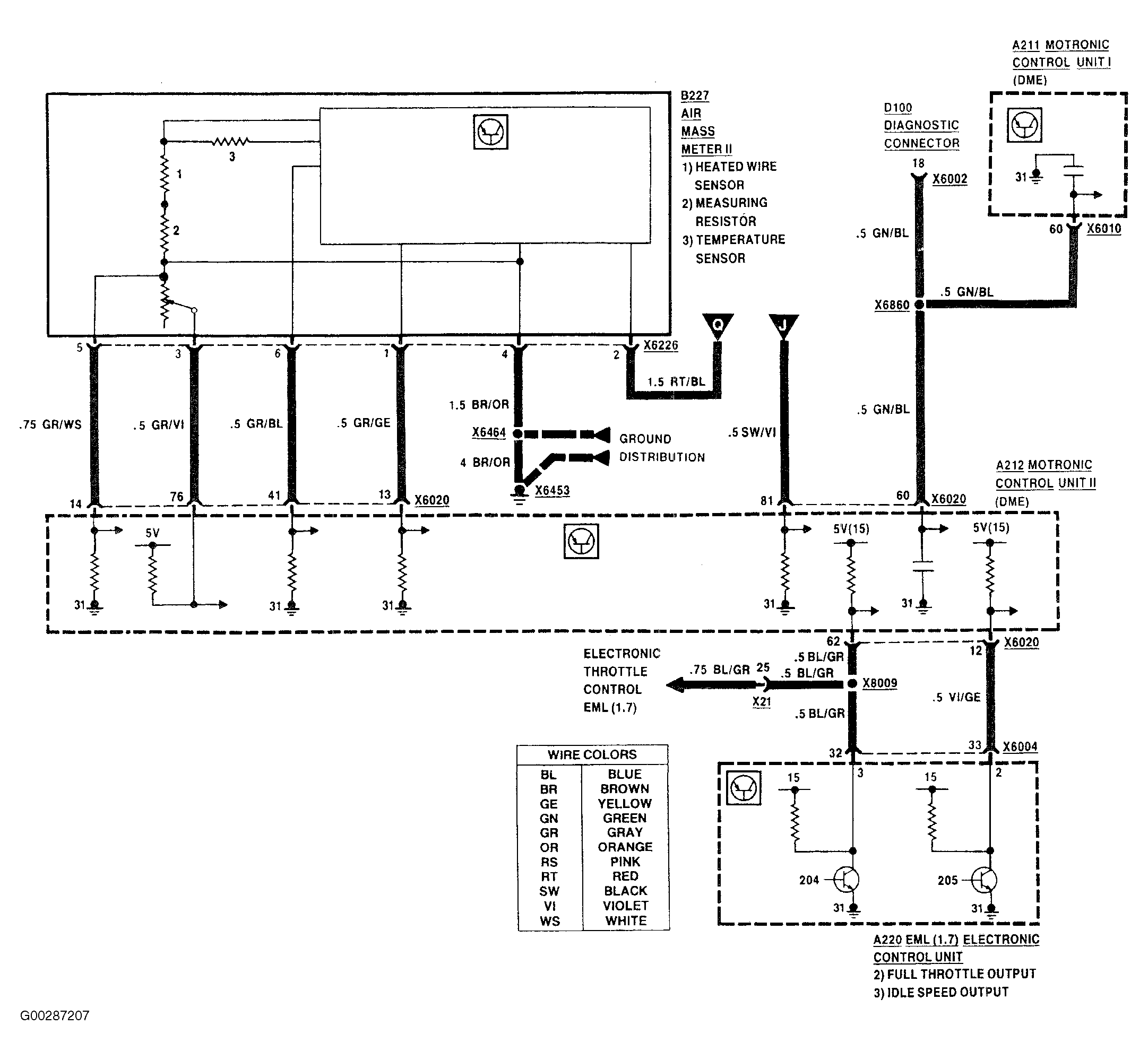

Fig 31: Motronic Control Unit II Wiring Diagram - 7 Series (7 Of 9)

G00287207

Courtesy of BMW OF NORTH AMERICA, INC.

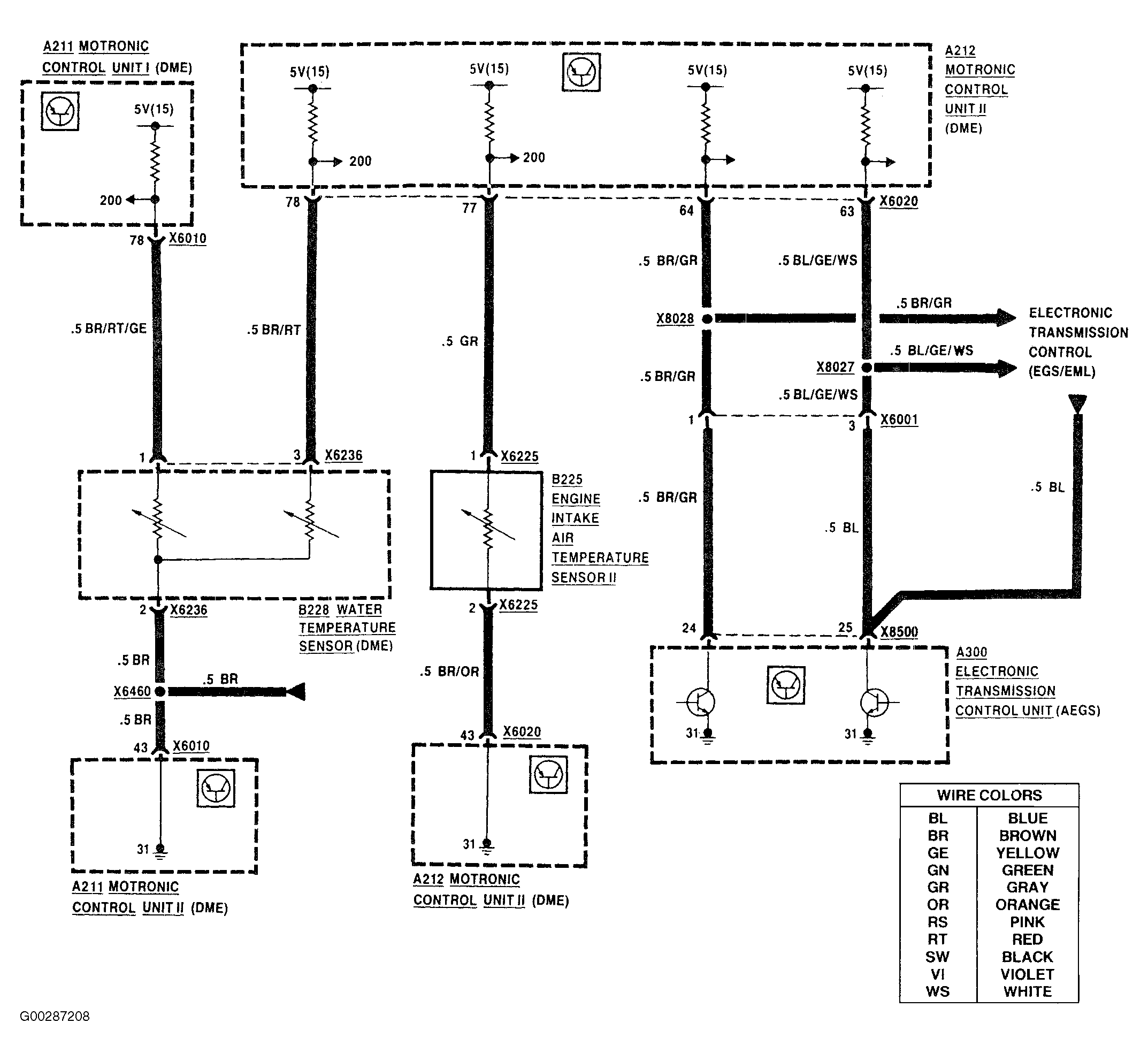

Fig 32: Motronic Control Unit II Wiring Diagram - 7 Series (8 Of 9)

G00287208

Courtesy of BMW OF NORTH AMERICA, INC.

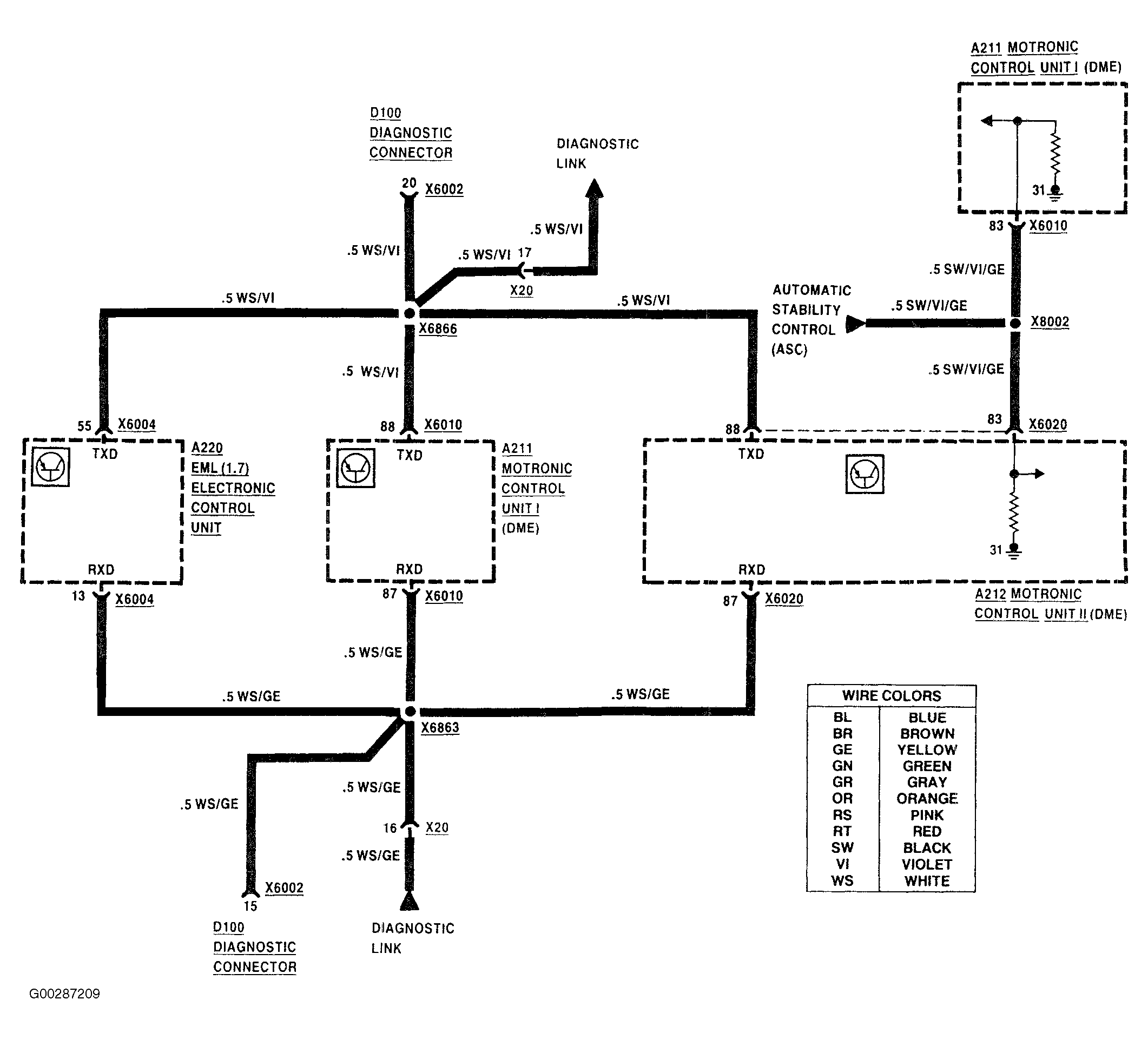

Fig 33: Motronic Control Unit II Wiring Diagram - 7 Series (9 Of 9)

G00287209

Courtesy of BMW OF NORTH AMERICA, INC.
