32 31 003 Replacing Upper Section Of Steering Column Trim: Notes

Move Steering Column In "Bottom" And "Extended" Position.

Unscrew Screw.

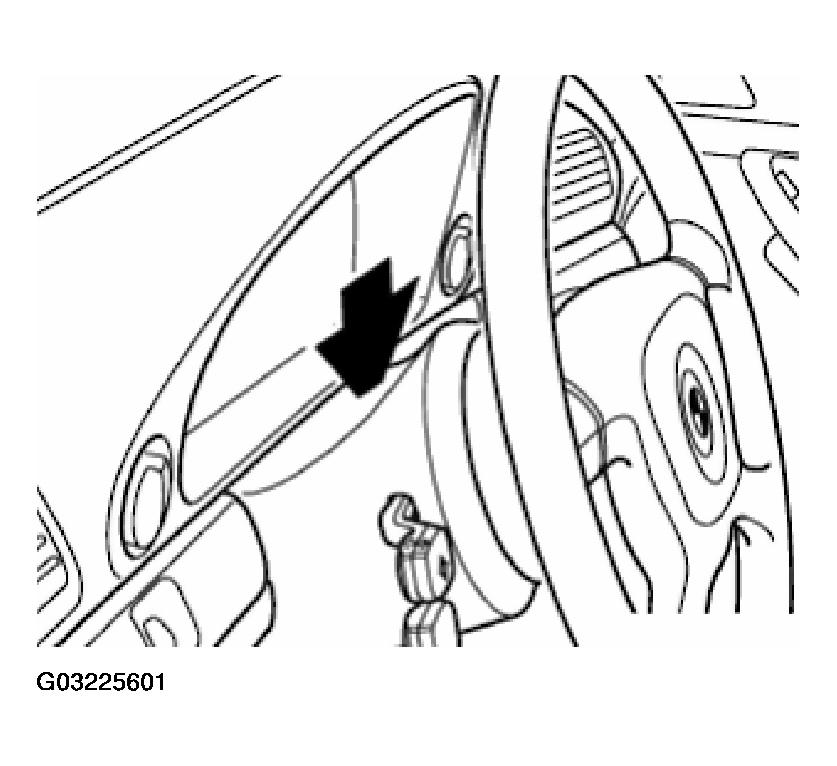

Fig 1: Move Steering Column In "Bottom" And "Extended" Position
G03225601Courtesy of BMW OF NORTH AMERICA, INC.
