Fuel Injectors

The M62 TU utilizes new fuel injectors manufactured by Bosch. The injector pintle consists of a two ball seat.

The ball seat design provides a tight seal when the injector is closed preventing HC formation in the intake.

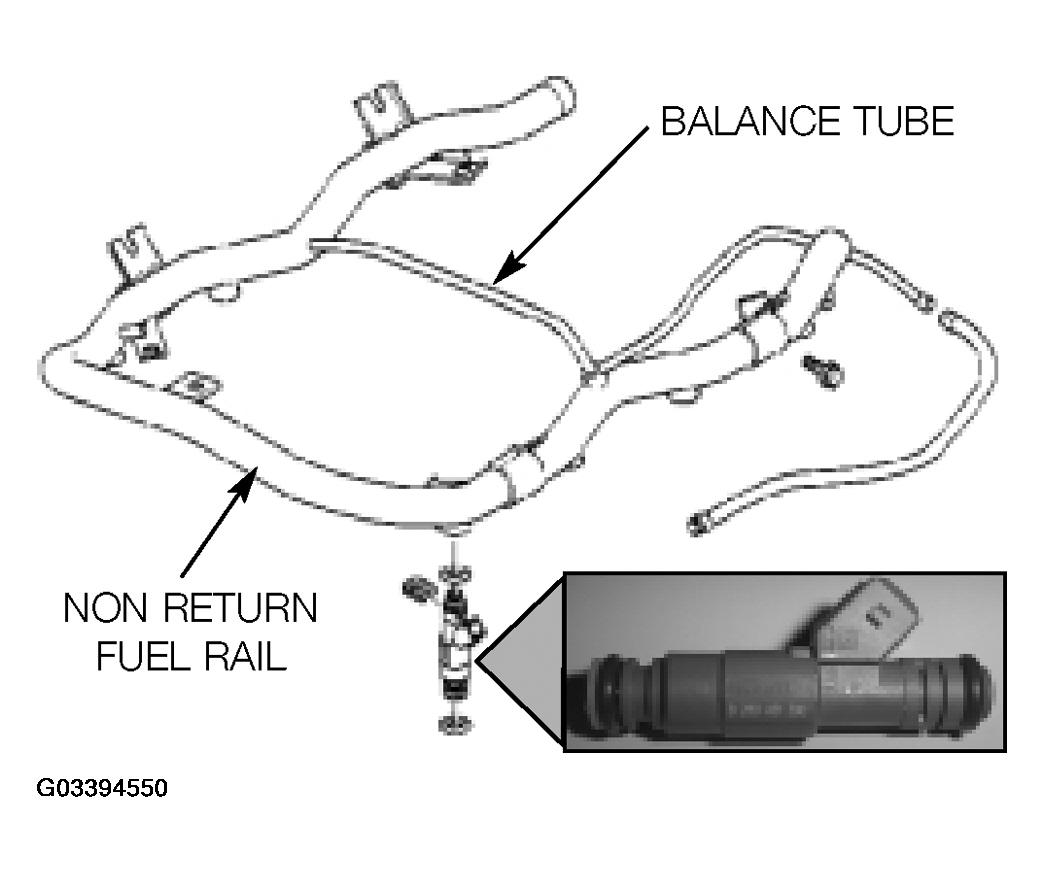

Fig 1: Identifying Fuel Injectors And Non-Fuel Return Fuel Rail
G03394550Courtesy of BMW OF NORTH AMERICA, INC.

The injectors have an ohmic value of 15.5 ohms.
