System Components: Inputs - Processing - Outputs: Notes

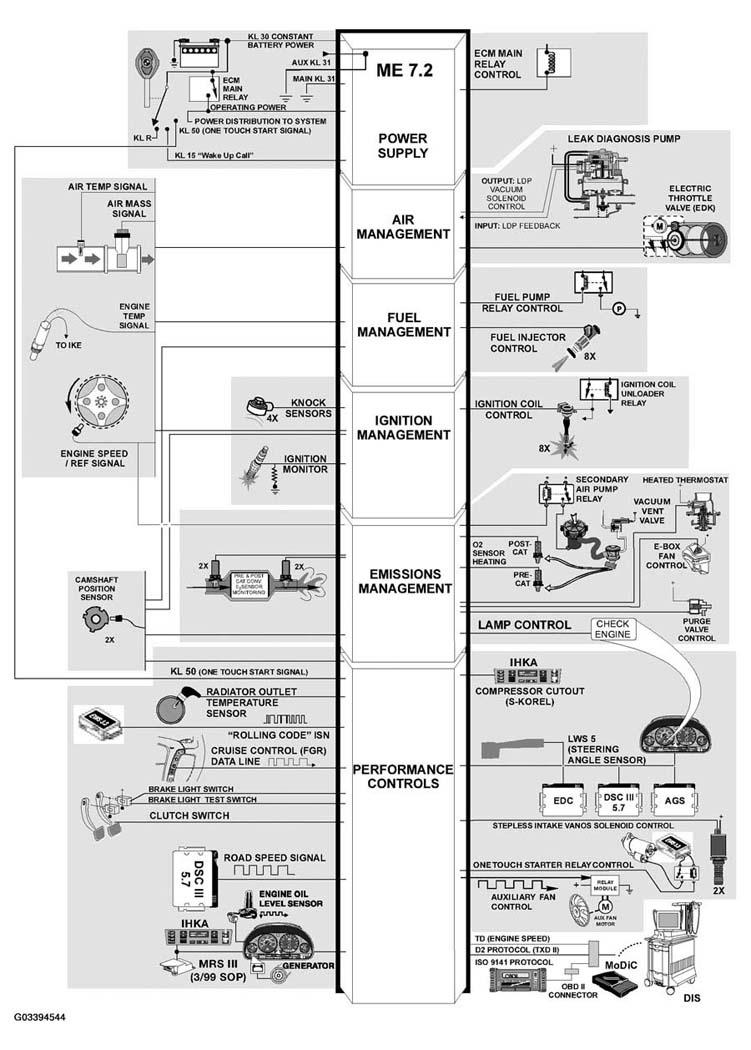

Fig 1: System Components: Inputs - Processing - Outputs
G03394544Courtesy of BMW OF NORTH AMERICA, INC.
