Fuel Pump Relay Control

ME 7.2 controls the fuel pump relay as with previous systems with regard to engine speed input for continual activation of the relay.

When MRS III was incorporated into production (3-99) the ME 7.2 deactivates the fuel pump relay when an airbag is activated as an additional safety function.

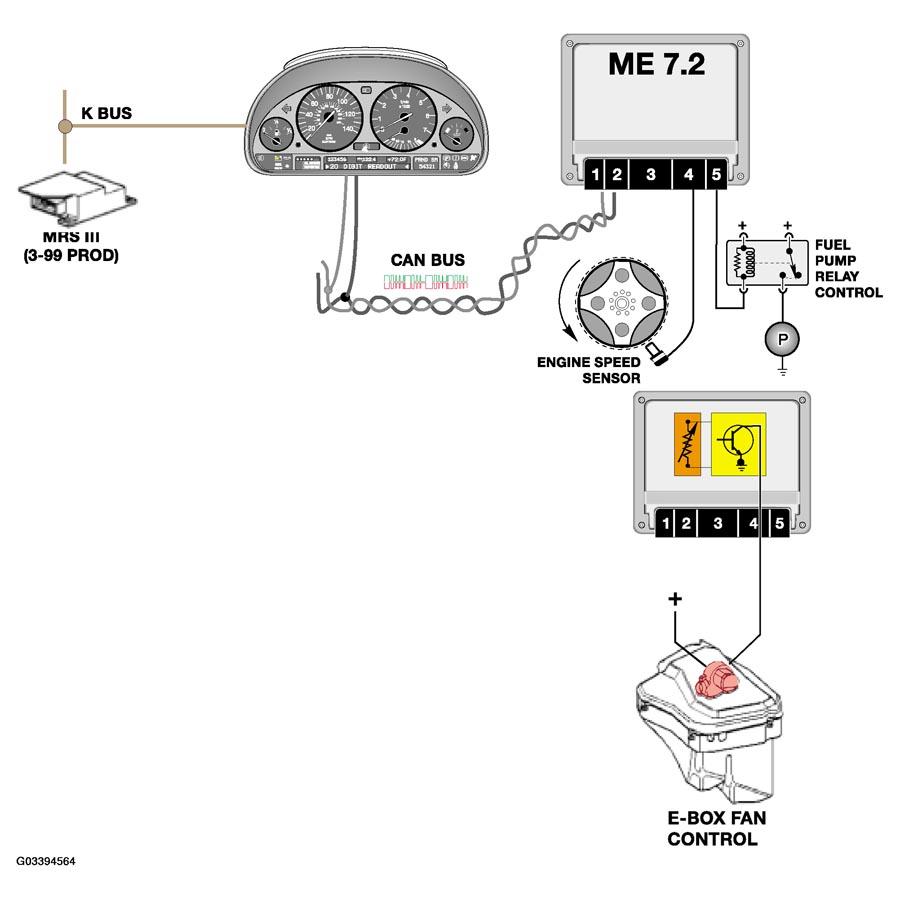

Fig 1: Identifying Fuel Pump Relay Control Circuit
G03394564Courtesy of BMW OF NORTH AMERICA, INC.
