61 13... Relay carrier

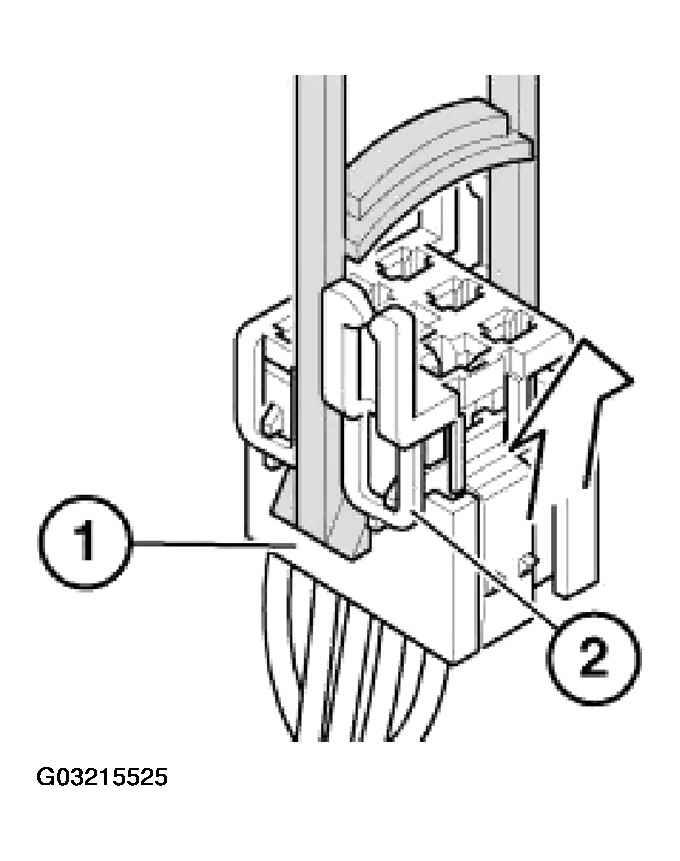

Place special tool 61 1 153 on relay carrier (1) and carefully pull in direction of arrow until retaining lugs (2) on relay carrier are raised.

Fig 1: Placing Special Tool

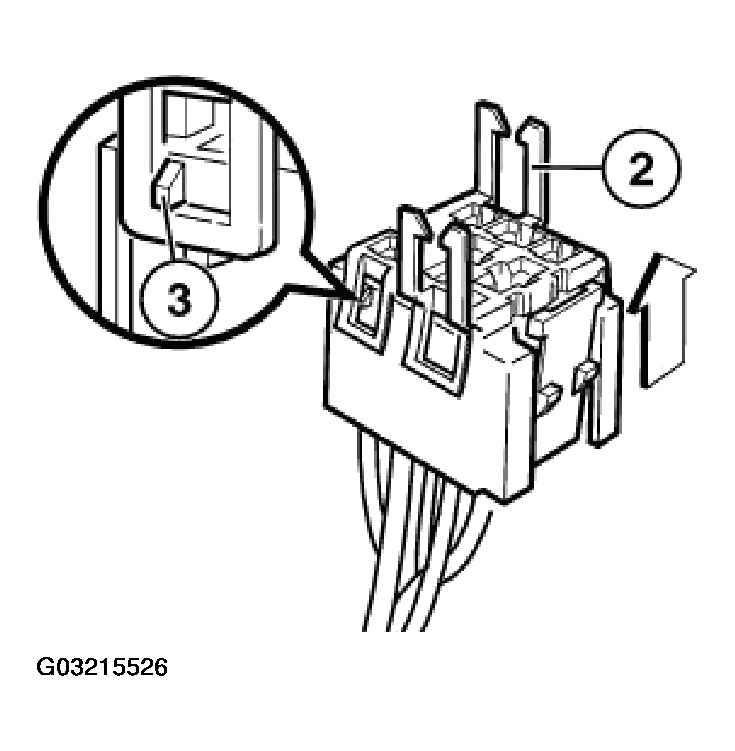

Pull relay carrier (2) in direction of arrow into first catch (3).

Fig 2: Pulling Relay Carrier

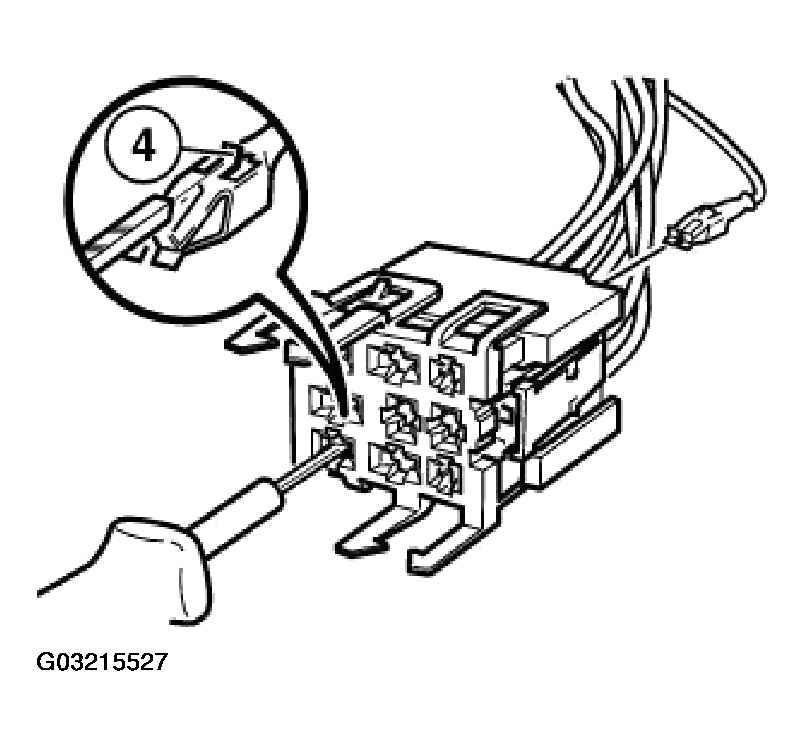

Press down arrester hook (4) of appropriate contact and pull out cable with contact.

Press out double flat spring with special tool 61 1 136 or 61 1 137 (ejector).

Fig 3: Pressing Out Double Flat Spring With Special Tool
