61 31... Removing and installing/replacing inclination switch for automatic trunk lid actuation

1. Remove switch for automatic trunk lid actuation, refer to 61 31 084 REMOVING AND INSTALLING/REPLACING SWITCH FOR AUTOMATIC TRUNK LID ACTUATION .

Release screw (1), slacken screw (2) and thread inclination sensor out of handle recess opening.

Disconnect plug connection.

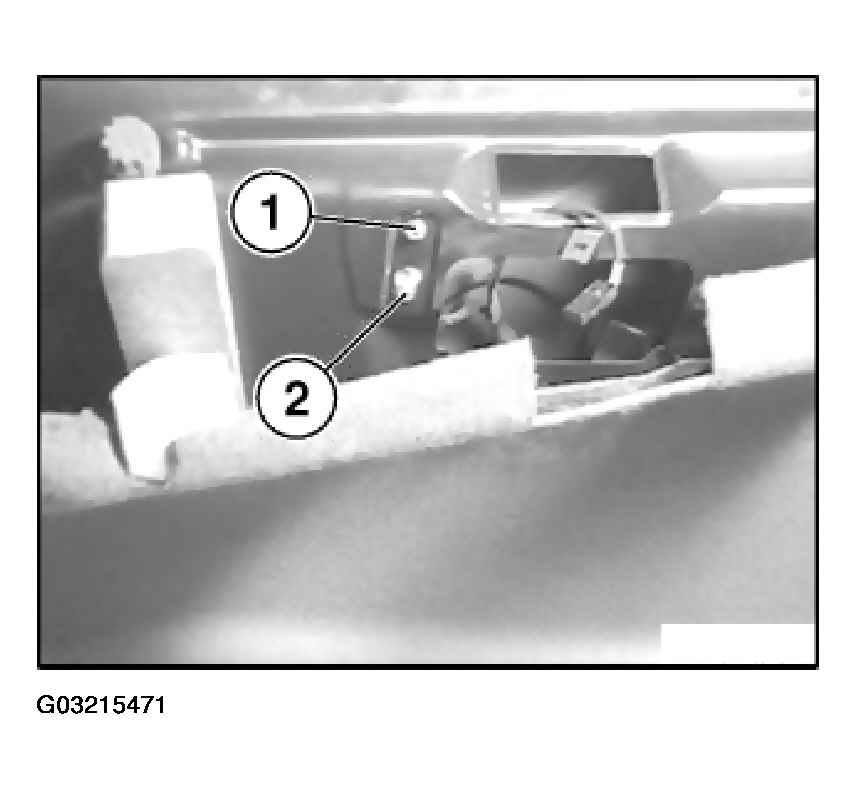

Fig 1: Disconnecting Plug Connection
