Production Up To 9/1998

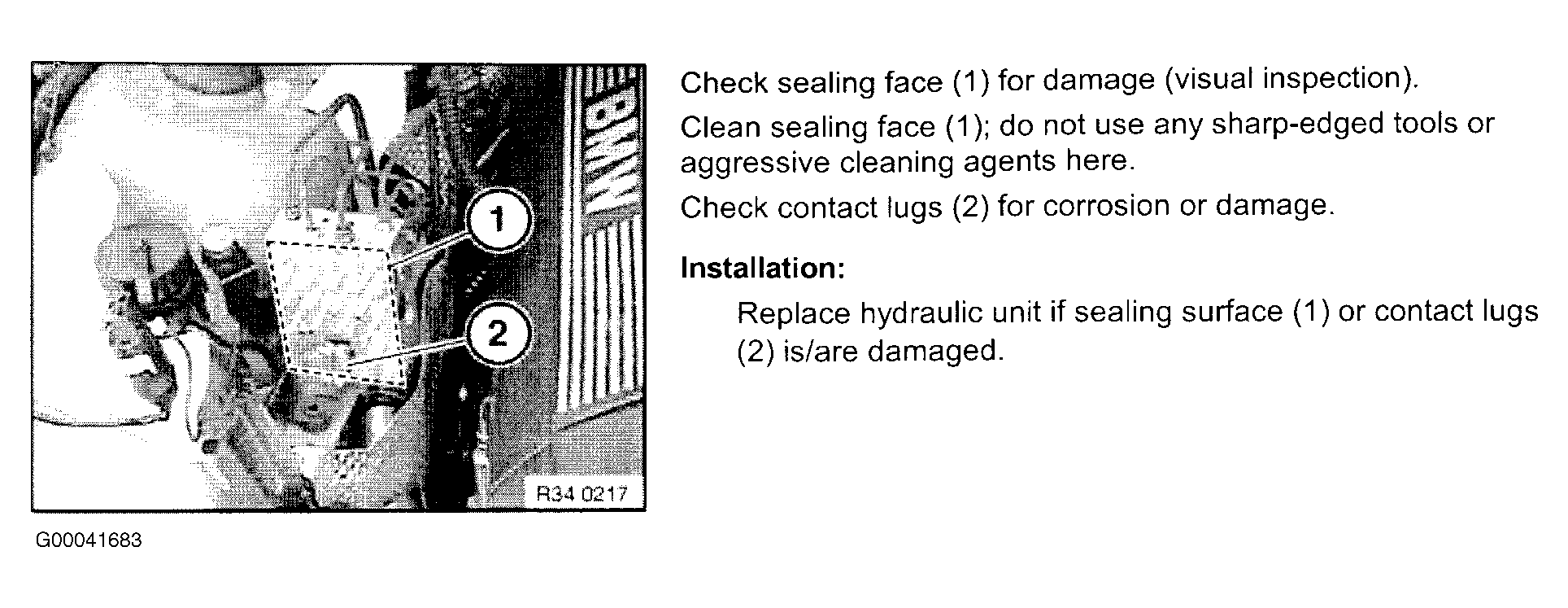

Fig 1: Removal & Installation Of Control Module (ASC+T, DSC1, DSC2, DSC3) (1 Of 2)
G00041683Courtesy of BMW OF NORTH AMERICA, INC.

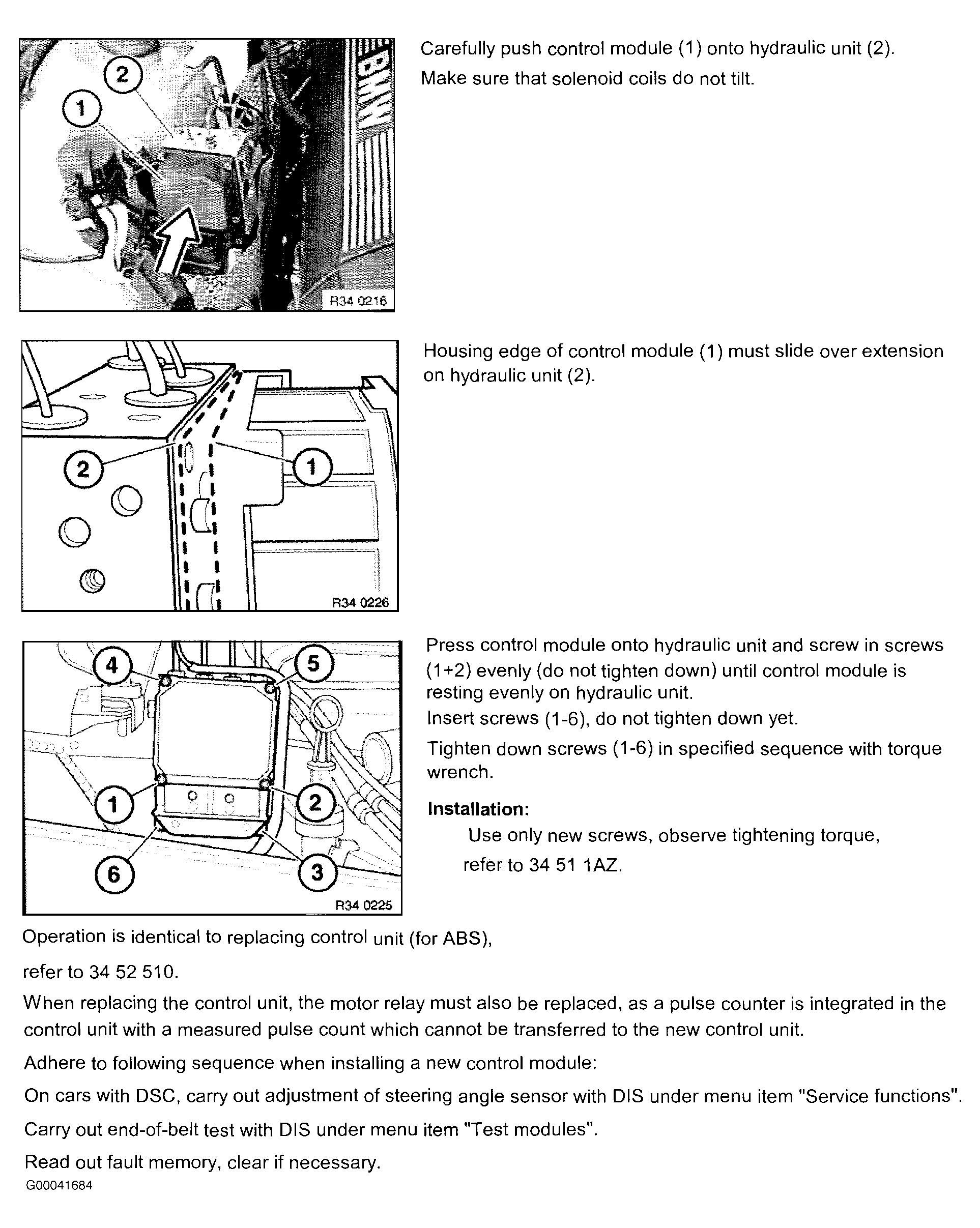

Fig 2: Removal & Installation Of Control Module (ASC+T, DSC1, DSC2, DSC3) (2 Of 2)
G00041684Courtesy of BMW OF NORTH AMERICA, INC.
