Power Window Motor: Installation

Install window regulator in locating bracket. Install and tighten 2 top screws. See Fig 1 . Install bottom of door window in window regulator clamps. Lower door window down to stop. Tighten 2 lower screws. Close door window firmly. Tighten 2 remaining screws.

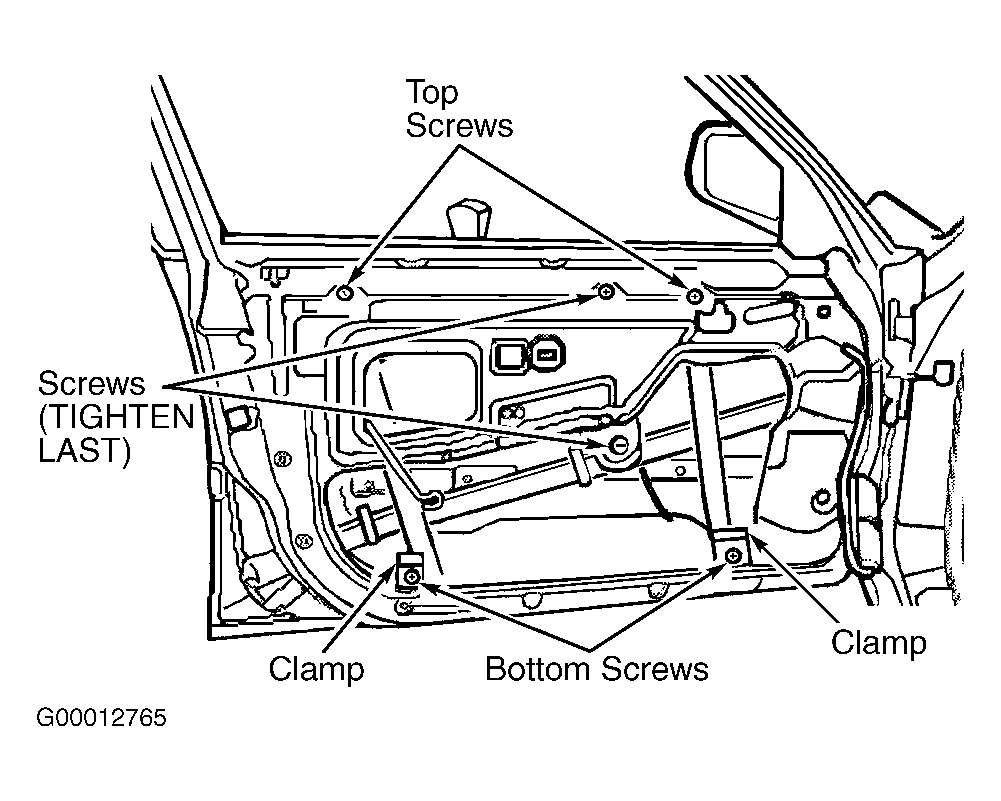

Fig 1: Installing Window Regulator Screws
G00012765Courtesy of BMW OF NORTH AMERICA, INC.
