00 00... Changing differential oil

1. Change oil with rear axle differential at normal operating temperature.
2. Refill final drive oil.

Unscrew drain plug (2), clean and reinstall.

Unscrew the filler screw plug (1).

Pour in differential oil until overflowing. Install filler screw plug (1).

Installation:

Tightening Torque, refer to TORQUE SPECIFICATIONS .

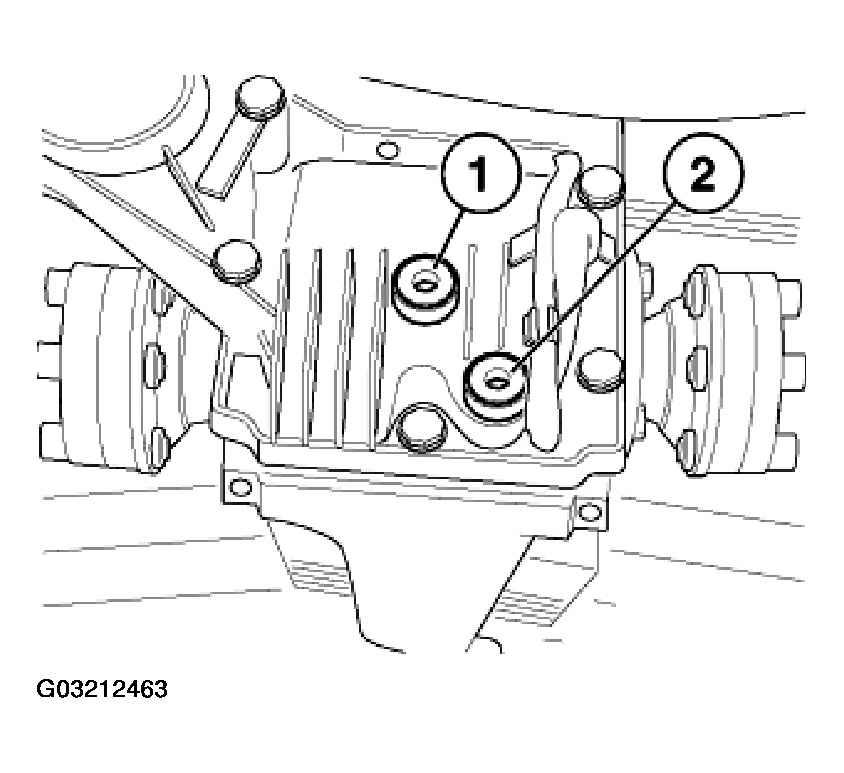

Fig 1: Removing Drain Plug And Screw Plug
