System Components: Inputs - Processing - Outputs

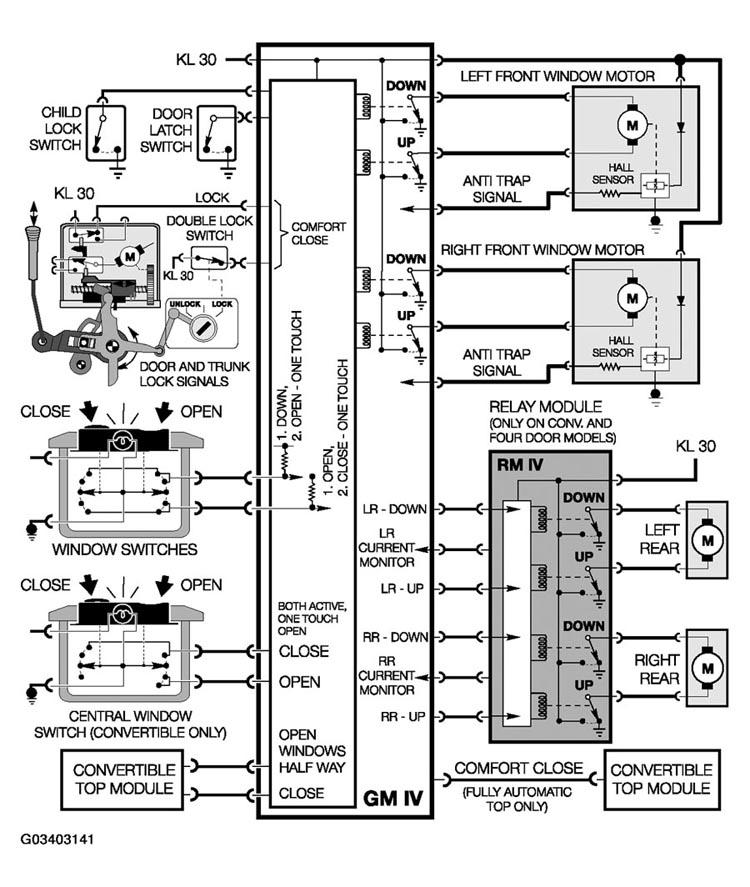

Fig 1: Identifying Power Window Switch Circuit Diagram
G03403141Courtesy of BMW OF NORTH AMERICA, INC.
