System Components: Inputs - Processing - Outputs

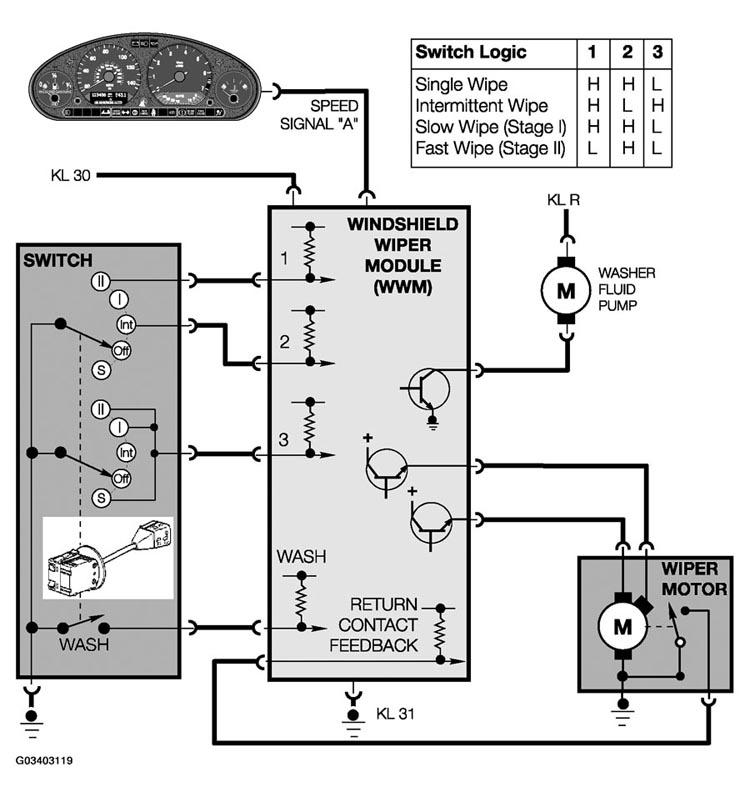

Fig 1: View Of Wiper Module Circuit Diagram
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
