DISplus Programs

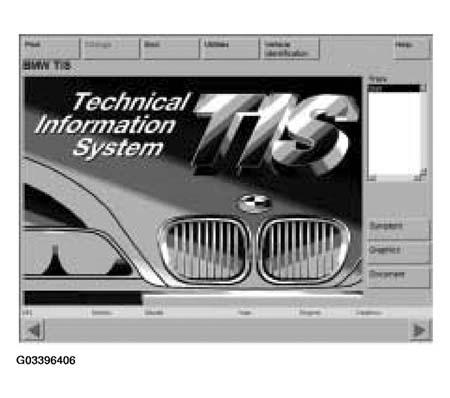

Fig 1: Identifying DISplus Programs

Pressing the TIS  button from the DIS Start Screen will launch the TIS application and allow access to all of the available TIS functions.

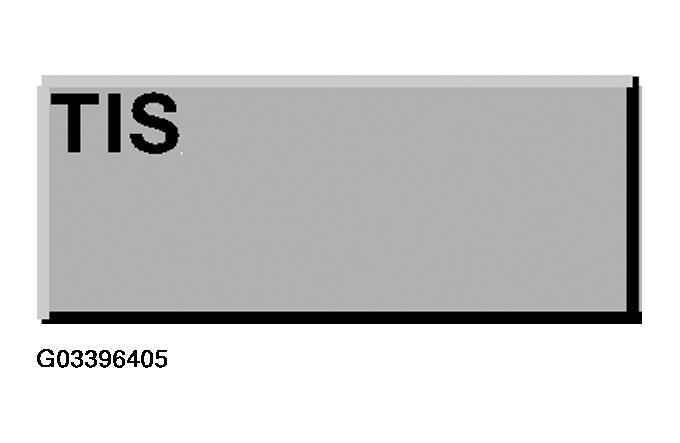

Fig 2: Identifying TIS

Pressing the Diagnosis  button will call up the diagnosis program. The functions available in the program are:

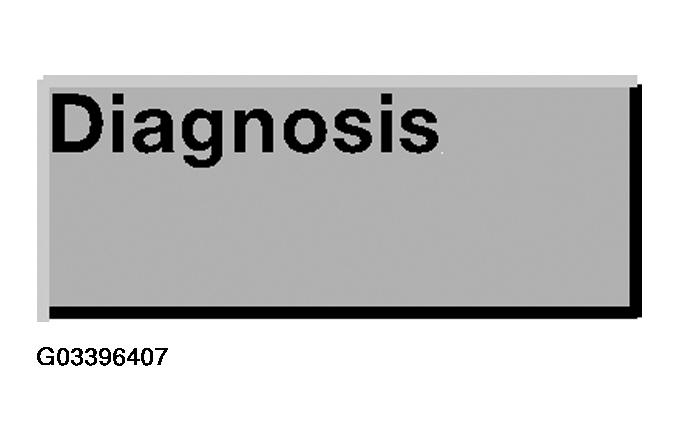

Fig 3: Identifying Diagnosis

• Expert Mode diagnosis for models prior to the E38 introduction.
• Diagnosis with the E38 diagnostic concept program.

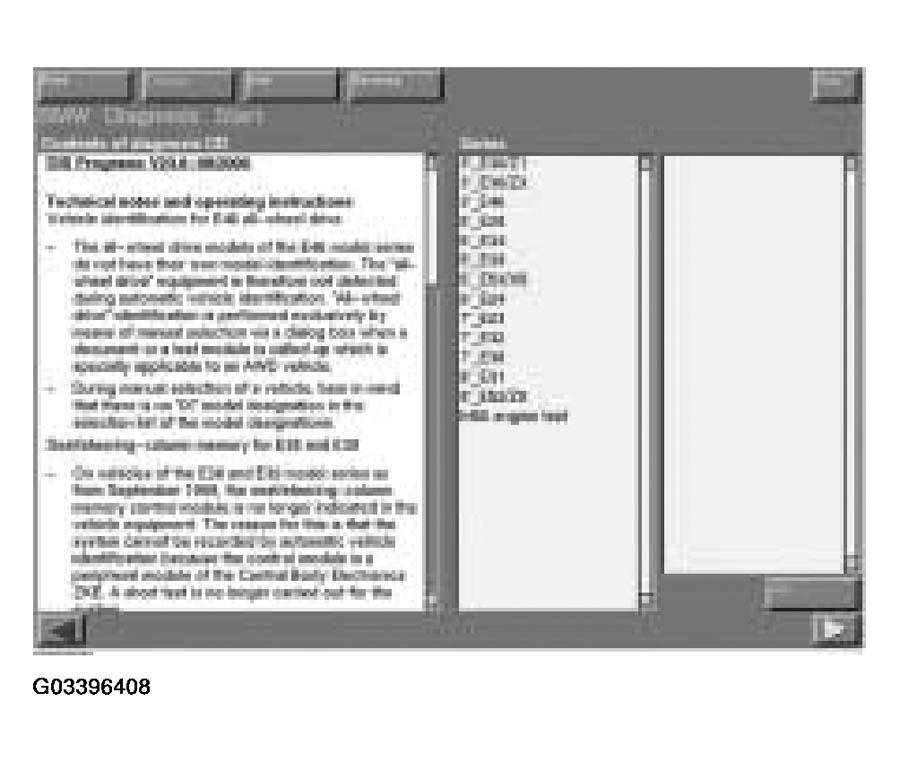

  Fig 4: Identifying Diagnosis Program


• Diagnosis with the E46 diagnostic concept program.
• ETMs in the Diagnosis Program.

Pressing the Coding Program  button will bring up a menu of different coding applications. The programs contained are:

• Car Memory
• Key Memory
• ZCS Coding
• Programming (drivetrain modules)
• EWS Alignment

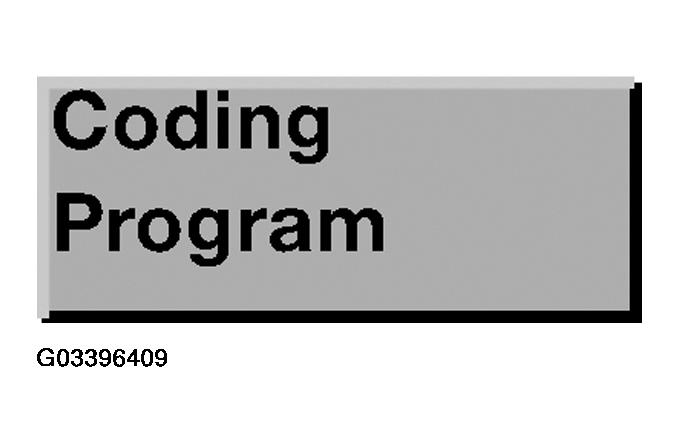

  Fig 5: Identifying Coding Program

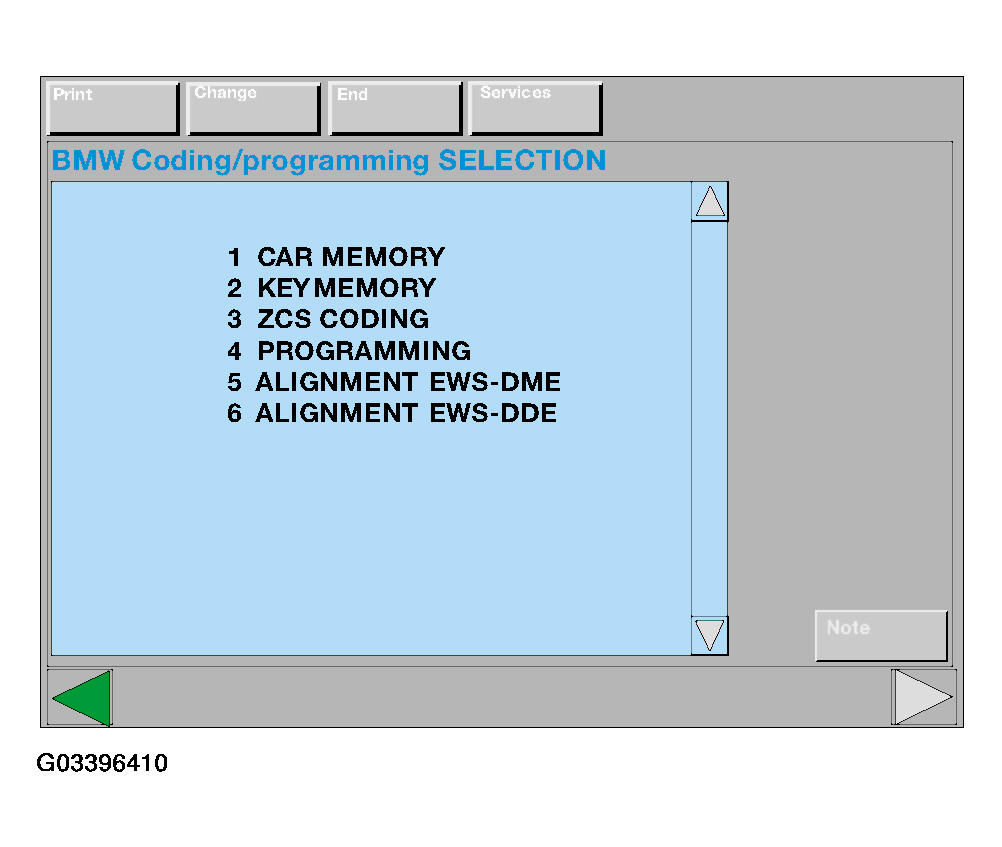

  Fig 6: Identifying Coding/Programming Selection Display
