Battery Safety Terminal (BST)

As with previous systems, the BST is used to disconnect the battery's "B+" connection to the engine compartment in the event of an airbag deployment. The safety measure helps prevents the possibility of a short circuit causing a fire.

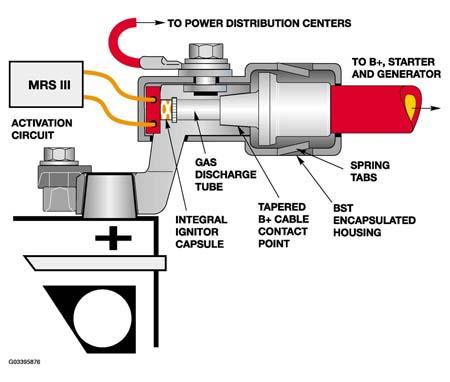

Fig 1: Battery Safety Terminal (BST) Operation Diagram
G03395876Courtesy of BMW OF NORTH AMERICA, INC.
