MOST Connection

MOST bus test cables and programming cable attach to this connector (1). The white protective cap should be replaced after use to keep the fiber Optic connections clean.

LED (2):

Red LED = voltage is supplied

Yellow LED = accessing MOST bus

Green LED = Bus lock

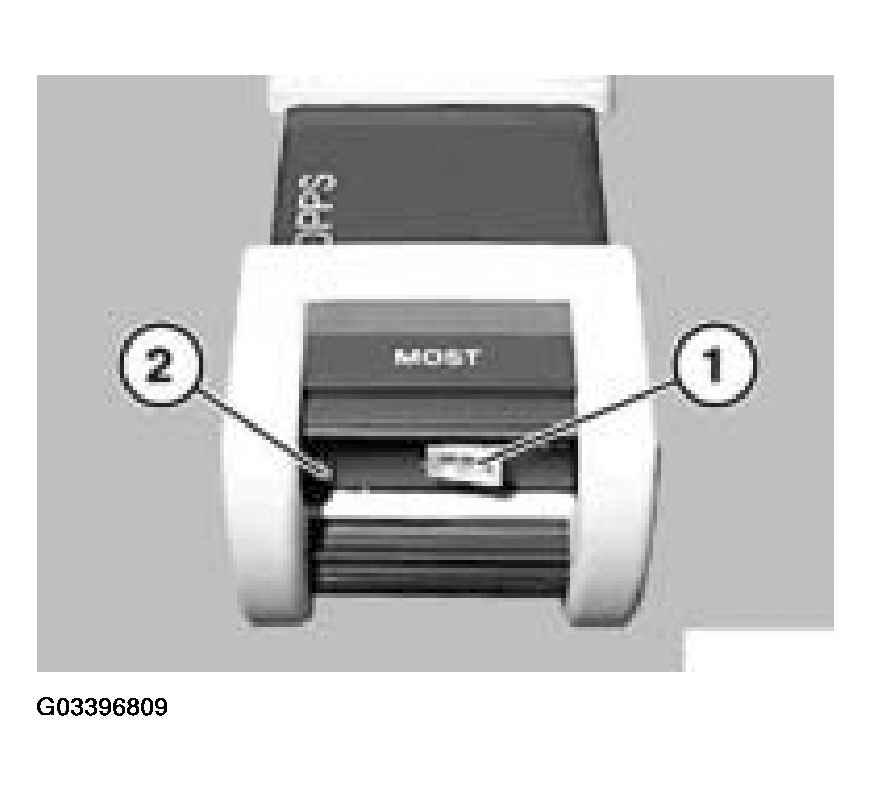

Fig 1: Identifying Most Connection Connector

Courtesy of BMW OF NORTH AMERICA, INC.
