Engine Views: Notes

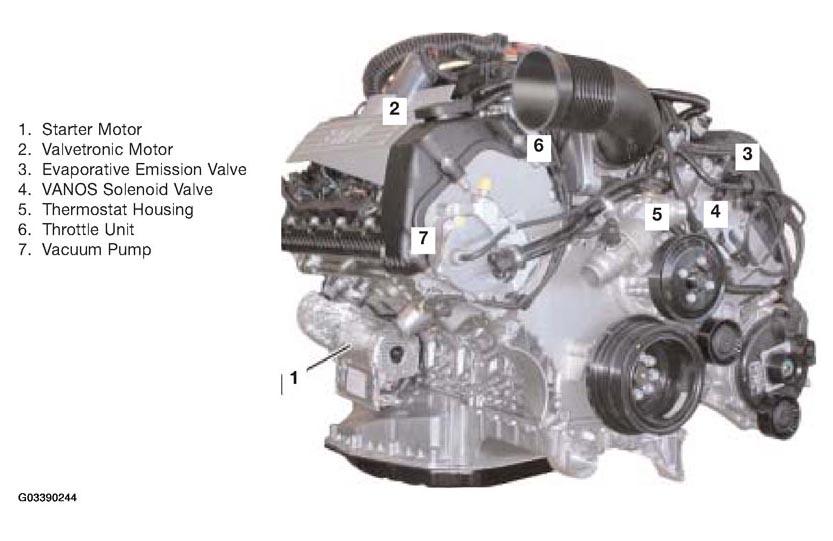

Fig 1: N62B44 Engine (Front View)
G03390244Courtesy of BMW OF NORTH AMERICA, INC.

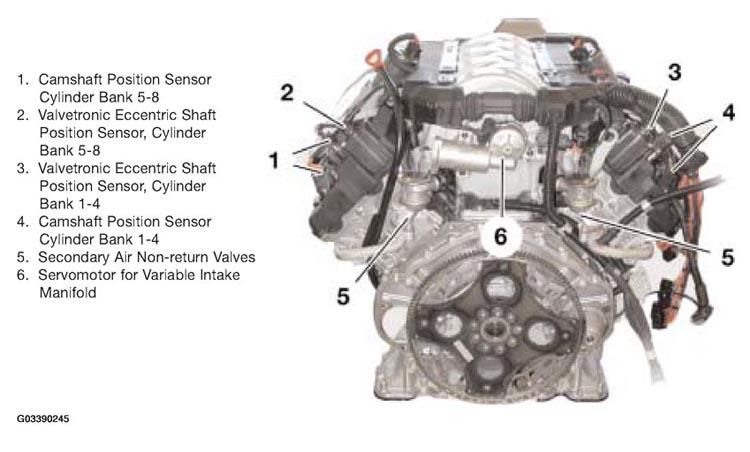

Fig 2: N62B44 Engine (Rear View)
G03390245Courtesy of BMW OF NORTH AMERICA, INC.
