61 61... Overview Of Windshield Washer System And Headlight Cleaning System (SRA)

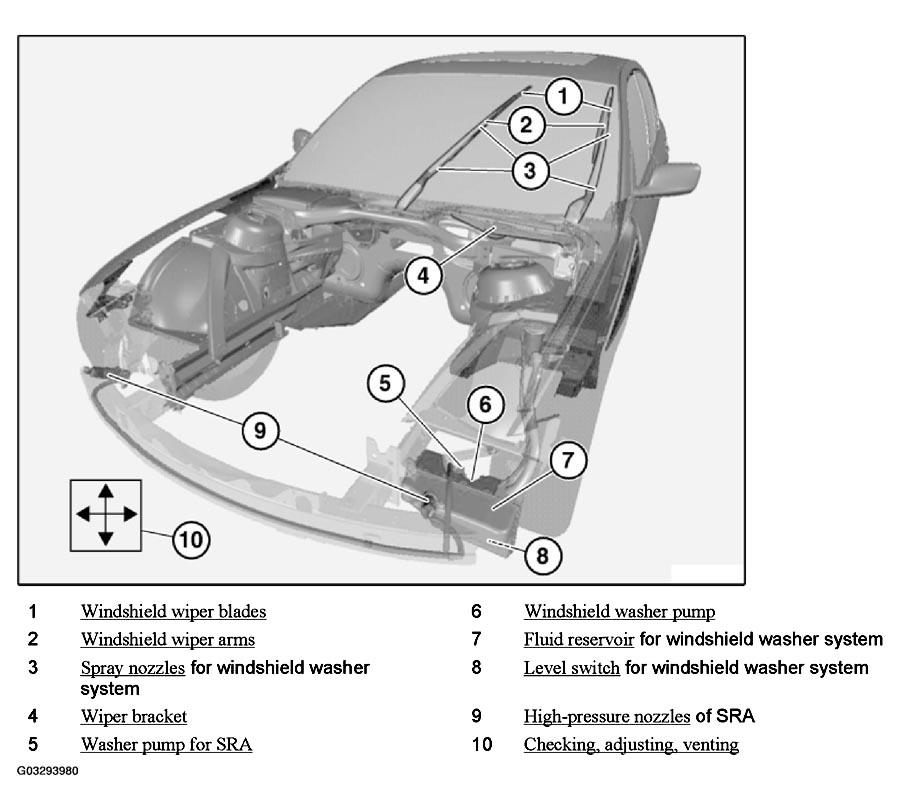

Fig 1: Windshield Washer System And Headlight Cleaning System Components
G03293980Courtesy of BMW OF NORTH AMERICA, INC.
