84 41 510 Removing And Installing/Replacing Control Unit For Voice Input System
Necessary Preliminary Tasks:
- Disconnect battery negative lead. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
NOTE:
Follow instructions for handling optical fibers. Refer to 61 00 ... NOTES ON HANDLING OPTICAL FIBERS
.

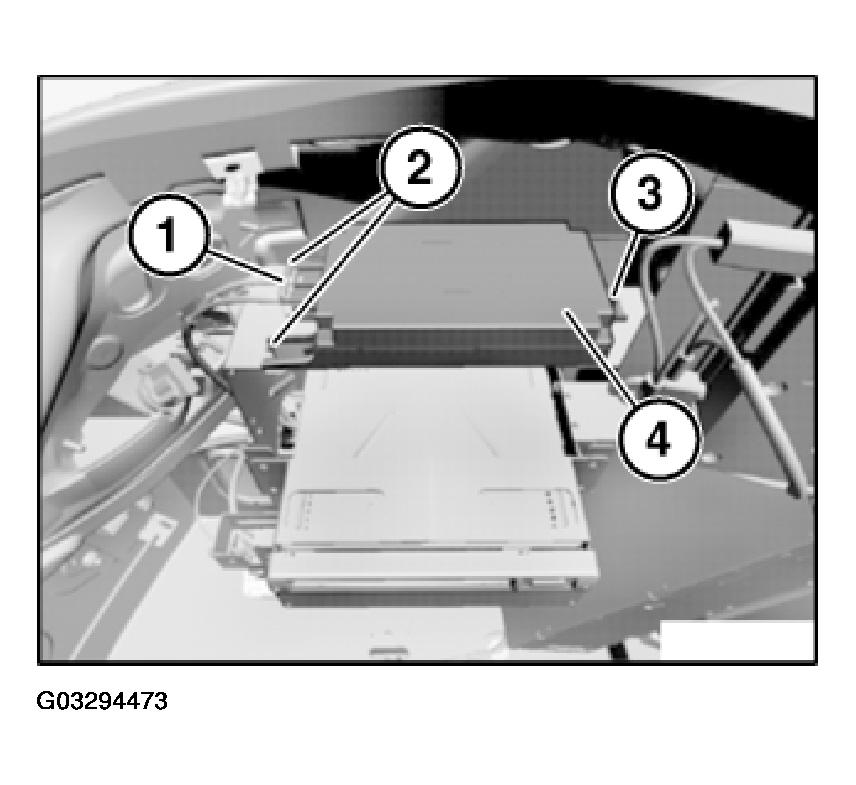

Unlock plug connection (1) and disconnect.
Slacken nuts (2).
Release nut (3).
Feed out control unit for voice input system (4) and remove.
