51 41... Repair solution for faulty latch mechanism on support for inside door handle (handle recess removed)

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Removing the handle recess is described in removing door trim panel  . See 51 42 000 REMOVE AND INSTALL LEFT OR RIGHT REAR DOOR TRIM PANEL  or 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

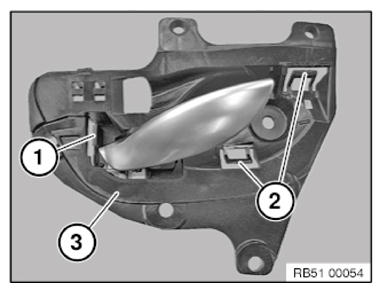

Procedure for faulty latch mechanisms (2) on support for inside door handle (3).

Fig 1: Identifying Inside Door Handle Bracket, Hooks And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

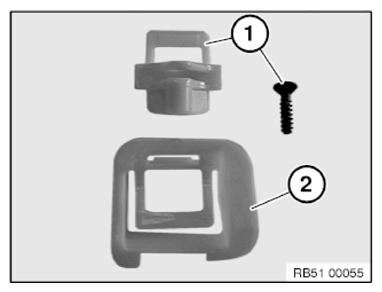

Repair kit consists of repair clip with screw, top (1) and repair clip, bottom (2).

Fig 2: Identifying Inside Door Handle Repair Kit Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Repair solution for broken top latch mechanism

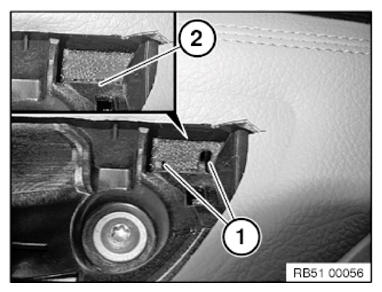

Remove remains of latch mechanism (1) flush to edge of opening (2).

Fig 3: Identifying Door Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

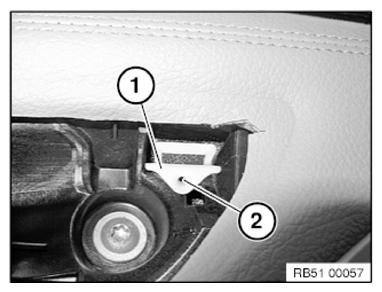

Seat repair clip (1) on support for inside door handle.

Only if no hole for support for inside door handle:

Drill dia. 3.2 _-0.2 mm hole (2) (do not damage repair clip in the process).

Fig 4: Identifying Door Clip And Hole

Courtesy of BMW OF NORTH AMERICA, INC.

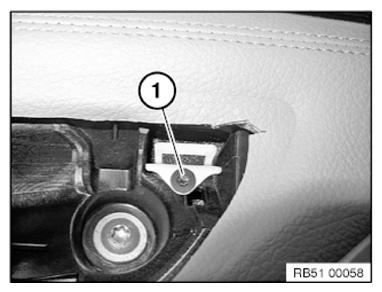

Install screw to secure repair clip (1).

Tightening torque 51 41 4AZ .

Fig 5: Identifying Door Handle Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Repair solution for broken bottom latch mechanism

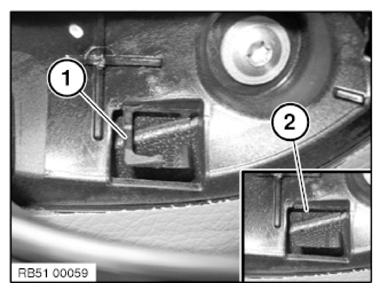

Remove remains of latch mechanism (1) flush to edge of opening (2).

Fig 6: Identifying Door Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

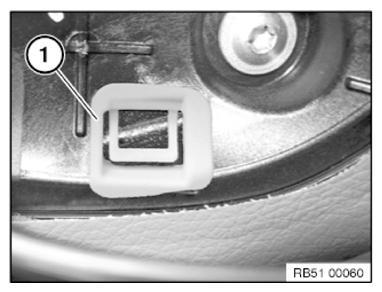

First press repair clip (1) into opening of support at top, then engage correctly at bottom.

Fig 7: Identifying Door Handle Clip

Courtesy of BMW OF NORTH AMERICA, INC.
