51 71... Installing and removing/replacing vehicle hoist mounting

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 3 330

Insert special tool 51 3 330 between vehicle hoist mounting (1) and vehicle underbody (2) and remove.

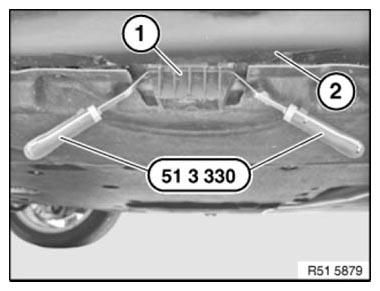

Fig 1: Inserting Special Tool (51 3 330) Between Vehicle Hoist Mounting And Vehicle Underbody

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of corrosion!
Touch up paintwork damage.
Re-establish wax layer.
