Functions Changed After Vehicle Programming (00 10 04 (110))
Publication date: 2006-03-01Reference number: 00 10 04 (110)
FUNCTIONS CHANGED AFTER VEHICLE PROGRAMMING
TECHNICAL SERVICE BULLETIN
| BMW: | E65, E66 |
| GROUP: | 00 - Maintenance and General Hints |
SITUATION
Functions changed after vehicle programming
After a vehicle has been programmed, the customer may notice changes in certain functions. Changes in function depend on the current vehicle data status and the new data status.
PROCEDURE
- Connect the vehicle to the BMW diagnosis system.
- Read off the present vehicle data status as follows:
- Call up the "Progman" program.
- Select "Vehicle order" and confirm.
The current vehicle data status is displayed.
- Make a note of this data status.
- Locate the vehicle data status in the left-hand column of the table.
- Click on the hotspot on this line in the right-hand column.
- Print off the enclosure and attach to the job order.
If the target data status in the table does not correspond to the current Progman version in the workshop, you should still proceed as described above.
| Vehicle Data Status | Target Data Status / Progman Version |
|---|---|
| E065-06-03-500 Progman V 21.0 | |
| E065-05-09-520 | No change |
| E065-05-09-515 | Enclosure F03 |
| E065-05-09-510 | Enclosure F03 |
| E065-05-09-500 | Enclosure F03 |
| E065-05-06-510 | Enclosure F03 |
| E065-05-06-500 | Enclosure F03 |
| E065-05-03-510 | Enclosure F03 |
| E065-05-09-820 | No change |
| E065-05-09-800 | No change |
| E065-05-06-800 | No change |
| E065-05-03-810 | No change |
| E065-04-12-510 | No change |
| E065-04-09-505 | No change |
| E065-04-09-501 | No change |
| E065-04-06-500 | No change |
| E065-04-03-500 | No change |
| E065-03-12-501 | No change |
| E065-03-12-500 | No change |
| I6.126 | No change |
| I6.115 | Enclosure F02 |
| I6.114 | Enclosure F02 |
| I6.113 | Enclosure F02 |
| I6.109A | Enclosure F02 |
| I6.108 | Enclosure F02 |
| I6.98 | Enclosure F02 |
| I6.97 | Enclosure F02 |
| I6.89B | Enclosure F02 |
| I6.89A | Enclosure F02 |
| I6.88A | Enclosure F02 |
| I6.88 | Enclosure F02 |
| I6.77c | No change |
| I6.77b | No change |
| I6.77 | No change |
| I6.76A1 | No change |
| I6.76A | No change |
| I6.76 | No change |
| I6.75E | Enclosure F02 |
| I6.75A | Enclosure F02 |
| I6.75 | Enclosure F02 |
| I6.74C | Enclosure F02 |
| I6.74B | Enclosure F02 |
| I6.74 | Enclosure F02 |
| I6.73A | Enclosure F02 |
| I6.73 | Enclosure F02 |
| I6.72 | Enclosure F02 |
| I6.71 | Enclosure F02 |
| I6.70 | Enclosure F02 |
| I6.61 | Enclosure F01 |
| I6.55A | Enclosure F01 |
| I6.54B | Enclosure F01 |
The Enclosures lead to a detailed description of the changes in function. These descriptions can be printed out and given to the customer.
Customers should be informed of any changes in function. Let them keep the printout as an enclosure to the Owner's Handbook.
ENCLOSURE F01
Function changes (70603500 V21.0 F01)
Programming the vehicle will produce the following changes in function. Please keep this document with the Owner's Handbook.
The following changes are described:
- Elimination of the green "No message" Check-Control status display
- Change in display of start menu on Control Display
- Change in designation of online services

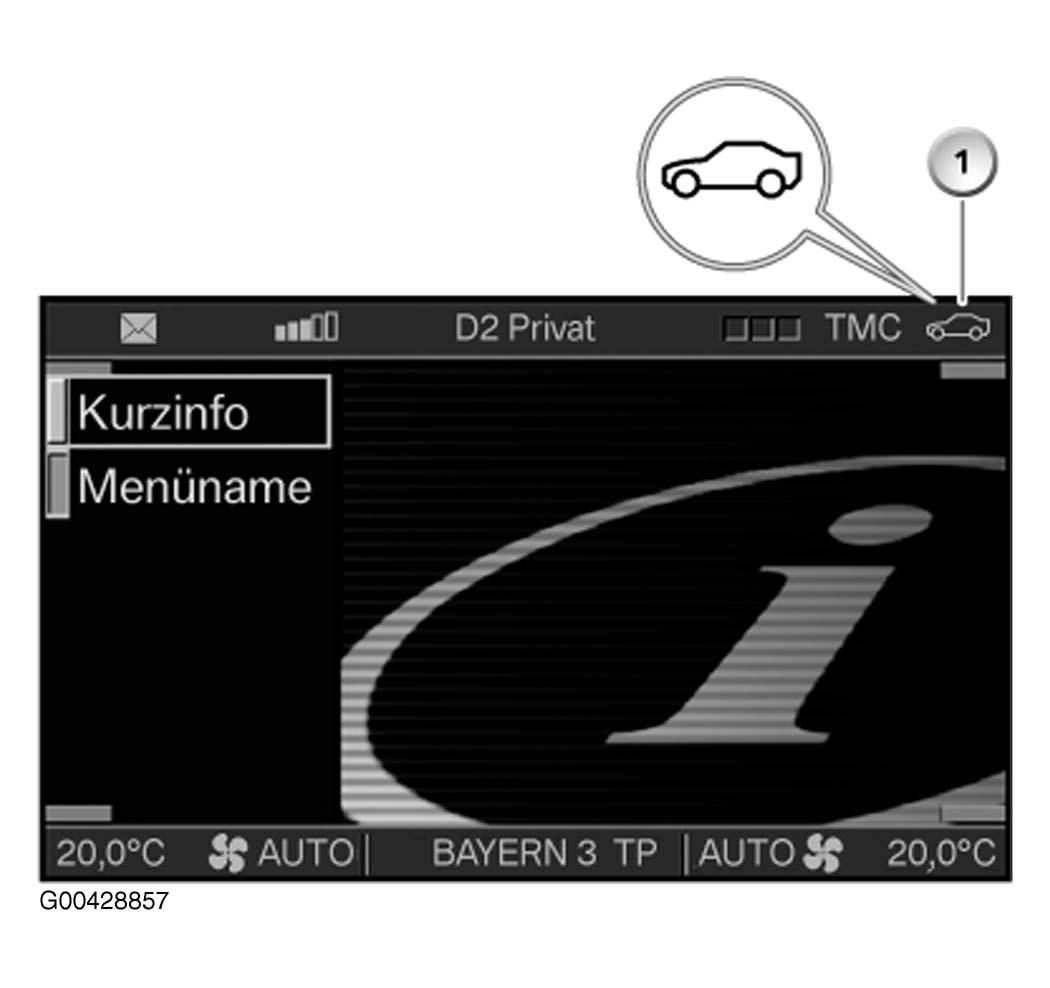

ELIMINATION OF THE GREEN "NO MESSAGE" CHECK-CONTROL STATUS DISPLAY
With immediate effect, the green "No message" Check-Control symbol in the upper status line is no longer displayed. If no symbol is shown, there are no faults in the systems monitored. If a fault develops, only two symbols will appear in the upper status line of the control display:
- Yellow symbol (priority 2)
- Red symbol (priority 1)
| Item | Description |
|---|---|
| 1 | Check-Control status (yellow or red symbol) |

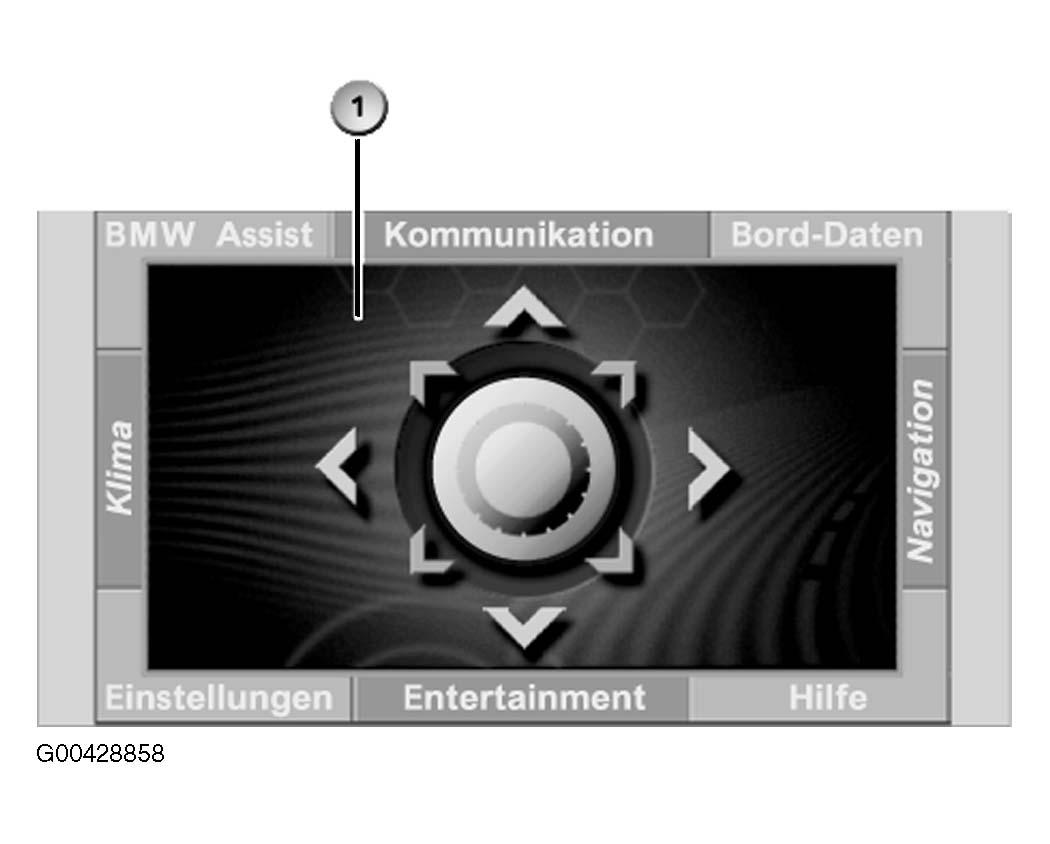

CHANGE IN DISPLAY OF START MENU ON CONTROL DISPLAY
The appearance of the arrows in the start menu has been revised.
The arrows are now displayed in two different sizes and on two different levels.
| Item | Description |
|---|---|
| 1 | Start menu |

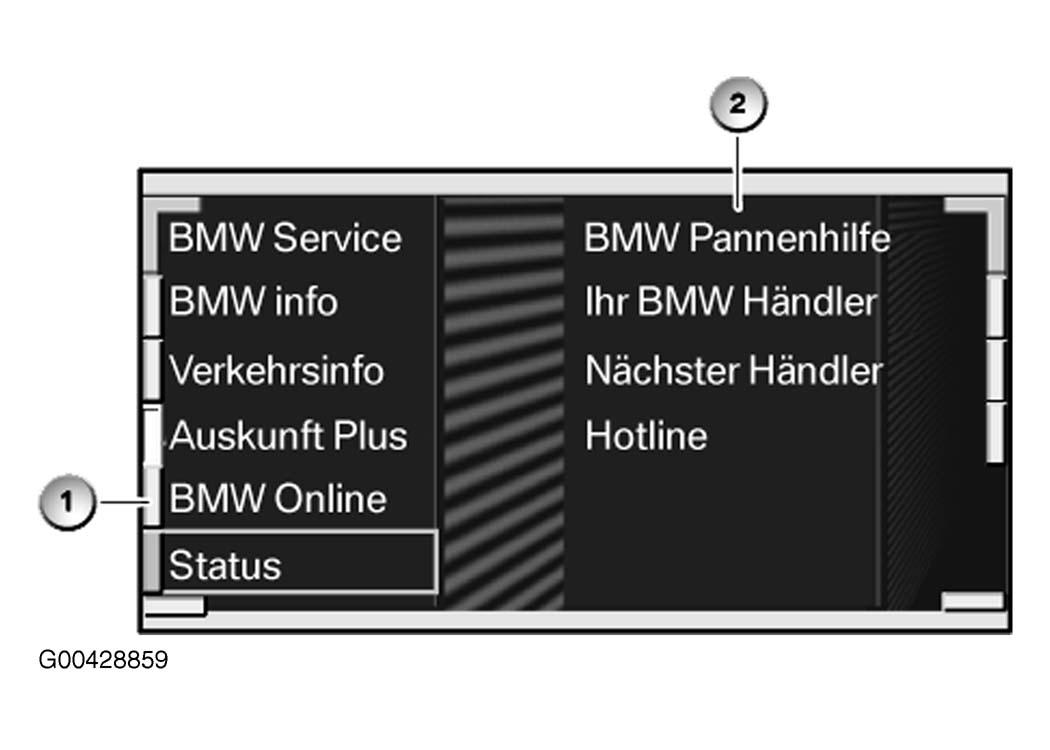

CHANGE IN DESIGNATION OF ONLINE SERVICES*
The Assist Online and Mobile Service online services have been renamed. With immediate effect, "Assist Online" is now known as "BMW Online". "BMW Mobile Service" is now known as "BMW Breakdown Service".
| Item | Description |
|---|---|
| 1 | BMW Online |
| 2 | BMW Breakdown Service |
*indicates special or national-market specifications or special equipment.
ENCLOSURE F02
Function changes (70603500 V21.0 F02)
Programming the vehicle will produce the following changes in function. Please keep this document with the Owner's Handbook.
The following changes are described:
- Elimination of the green "No message" Check-Control status display
- Change in display of start menu on Control Display
ELIMINATION OF THE GREEN "NO MESSAGE" CHECK-CONTROL STATUS DISPLAY
With immediate effect, the green "No message" Check-Control symbol in the upper status line is no longer displayed. If no symbol is shown, there are no faults in the systems monitored. If a fault develops, only two symbols will appear in the upper status line of the control display:
- Yellow symbol (priority 2)
- Red symbol (priority 1)
| Item | Description |
|---|---|
| 1 | Check-Control status (yellow or red symbol) |
CHANGE IN DISPLAY OF START MENU ON CONTROL DISPLAY
The appearance of the arrows in the start menu has been revised.
The arrows are now displayed in two different sizes and on two different levels.
| Item | Description |
|---|---|
| 1 | Start menu |
ENCLOSURE F03
Function changes (70603500 V21.0 F03)
Programming the vehicle will produce the following changes in function. Please keep this document with the Owner's Handbook.
The following changes are described:
- Modified map display
- Modified destination input*
- Diversion from route section
- Extended menu item "Destination input"*
- Extended traffic information
- Extended criterion for route selection
MODIFIED MAP DISPLAY
The map display has been modified. The background display is now of higher quality. The symbols in the display are now faded in and out more "softly".
MODIFIED DESTINATION INPUT*
The destination can now be input by entering the post code.
- Select "Town / City" or "City / post code" and press the controller.
- Enter post code: (must be supported by the map DVD)
Select digits one by one and confirm each by pressing the controller.
- Select the post code and press the controller. The place (destination) required is displayed.
- Select the place names in the display by turning the controller and press the controller.
DIVERSION FROM ROUTE SECTION
A section of the route can bypassed at speeds of up to 50 km.

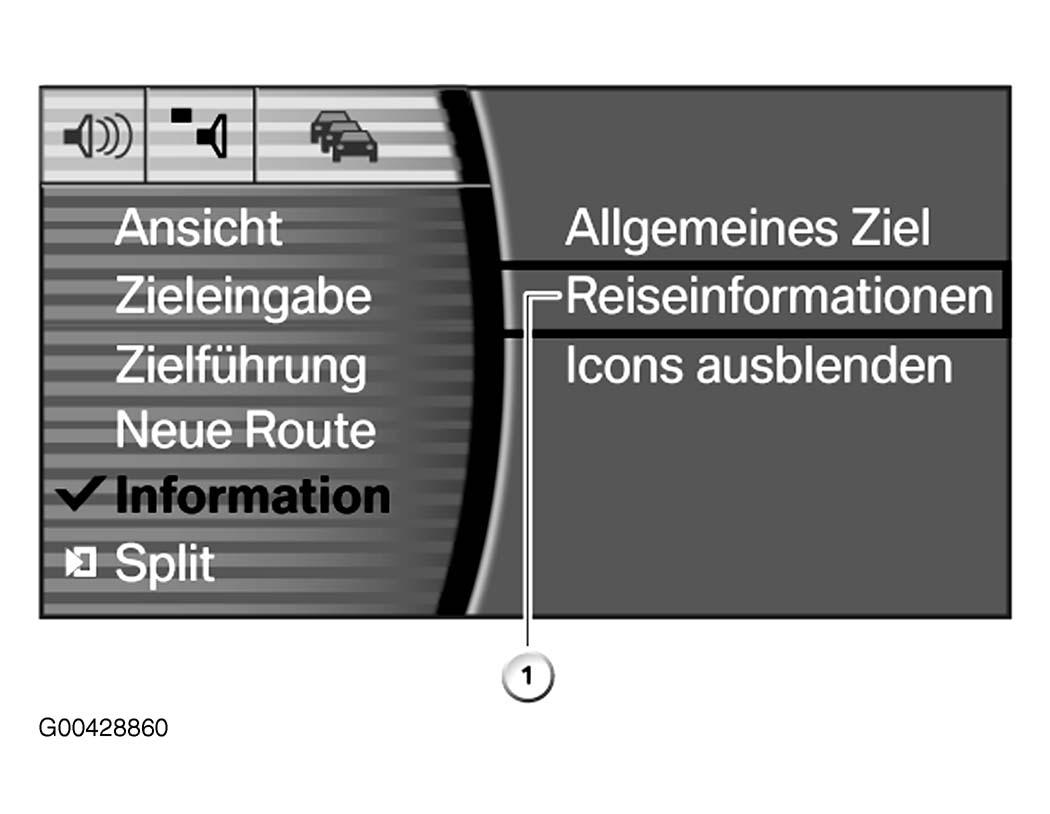

EXTENDED MENU ITEM "DESTINATION INPUT"*
The menu item "Information" has been extended by the selection "Travel information".
"Travel information" contains destinations for selection, e.g. hotels and restaurants, parks and leisure areas, attractions and public buildings. These can be called up and included in the route guidance as required.
- Select "Destination input" and press the controller.
- Select "New destination" and press the controller.
- Select "Information" and press the controller.
- Select "Travel information" and press the controller.
Item Description 1 Travel information - Depending on the navigation DVD (e.g. hotels and restaurants), various categories are now offered. Select the required category and press the controller.

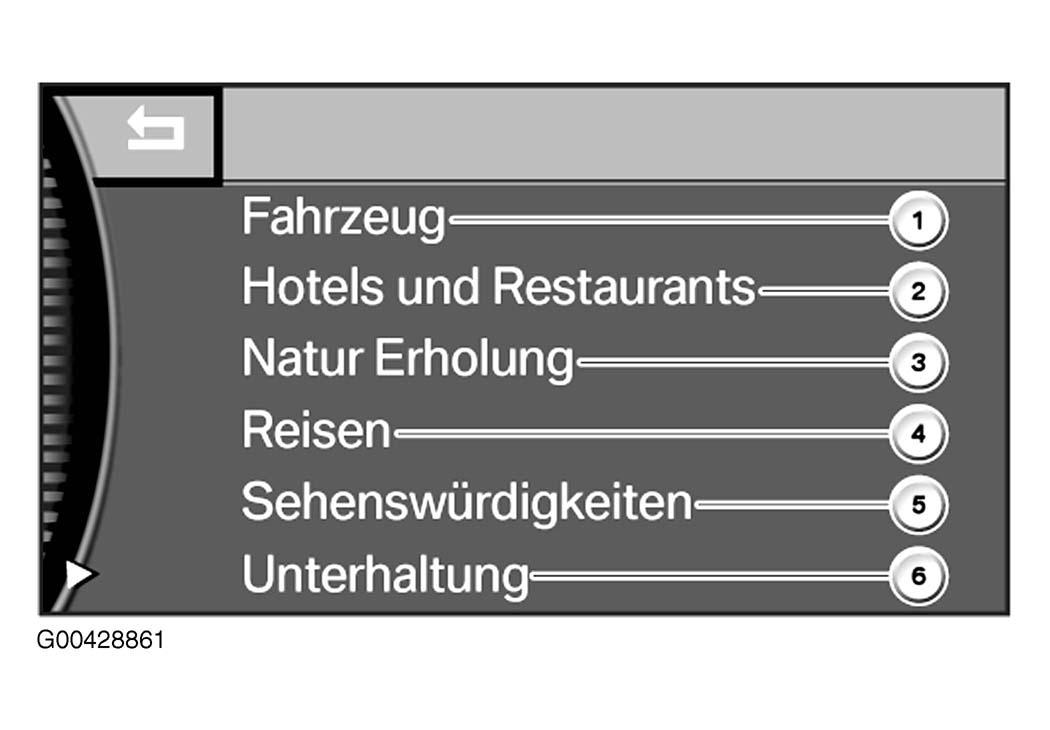

Item Description 1 Vehicle 2 Hotels and restaurants 3 Nature and recreation 4 Travel 5 Places to visit 6 Entertainment - The selection can be restricted by entering additional criteria, e.g. maximum distance from programmed destination or name of destination. Moreover, optional inputs can also be made, e.g. display of BMW partner hotels. The destinations in the vicinity are displayed on the Control Display, sorted according to distance from destination and the other criteria entered.
- Select the destination and press the controller.
EXTENDED TRAFFIC INFORMATION
The following TMC traffic information has been added:
- Traffic check
- Winter (ice)
- Heavy rain

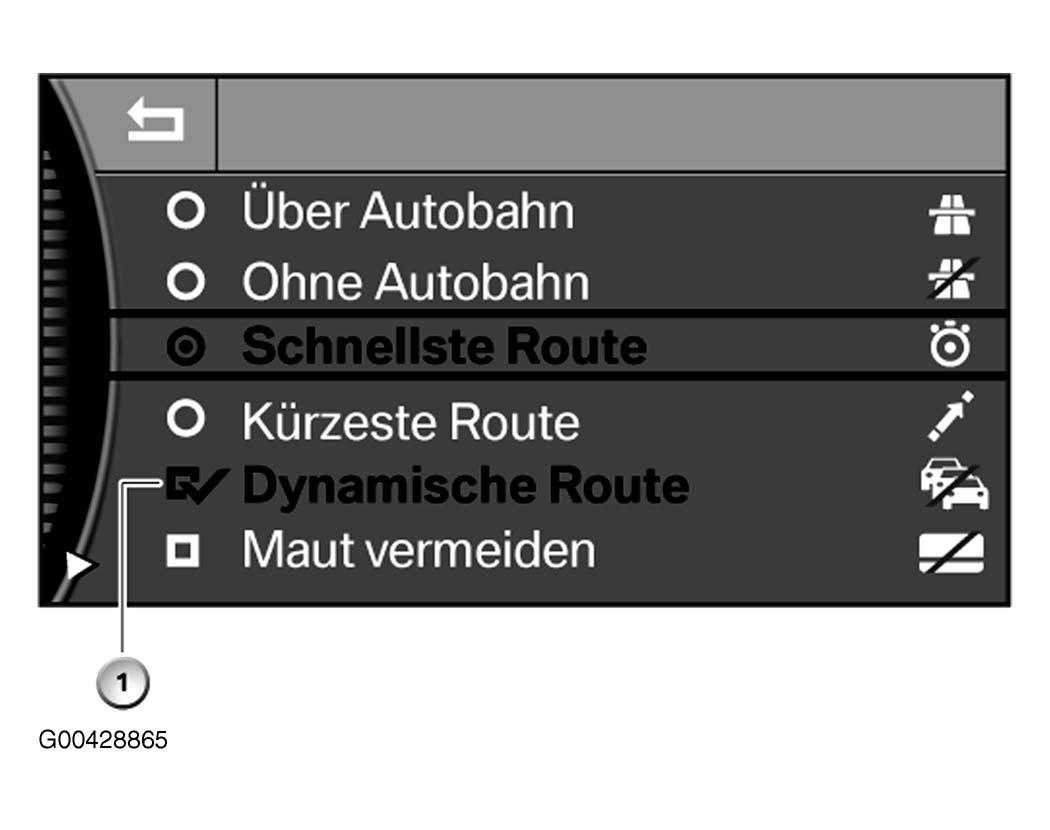

EXTENDED CRITERION FOR ROUTE SELECTION
The criterion for selecting a route has been extended by the "Dynamic route".
Automatic change to the calculated route whenever there are hindrances on the route.
| Item | Description |
|---|---|
| 1 | Dynamic route |
*indicates special or national-market specifications or special equipment.
