61 13 ... Cutting Off, Stripping Insulation And Cutting Optical Fibres To Length: Notes
Special tools required:
- 61 4 320
For further information on special tools, refer to GENERAL ELECTRICAL SYSTEM - SPECIAL TOOLS - 3-Series (M54/E46) .

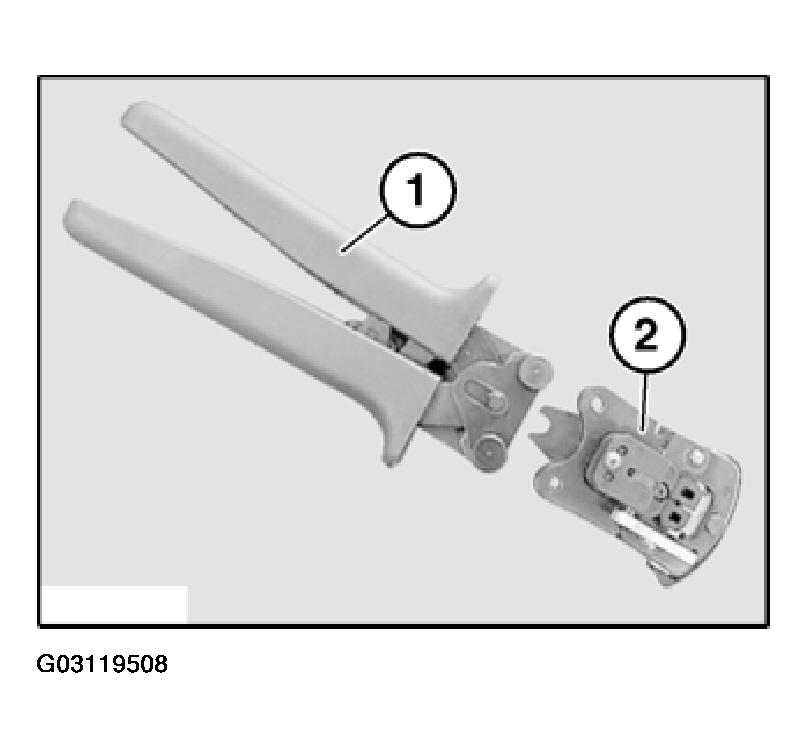

To cut off, strip insulation and cut optical fibres to length, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 322 (2) from crimping set 61 4 320.
NOTE:
Pliers (1) open automatically as far as they will go when handles are pressed together.
