61 13... Socket housing (radio plug), Hybrid System MQS/MPQ

Manufactured by AMP: The following contact types without strand sealing can be fitted in the plug housings:

Removing MPQ contacts from radio plug:

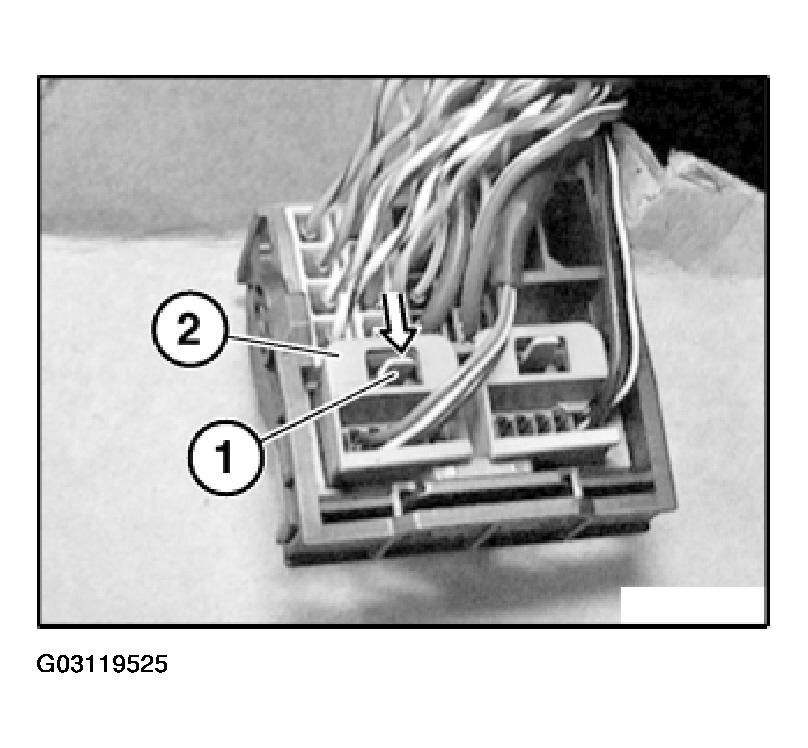

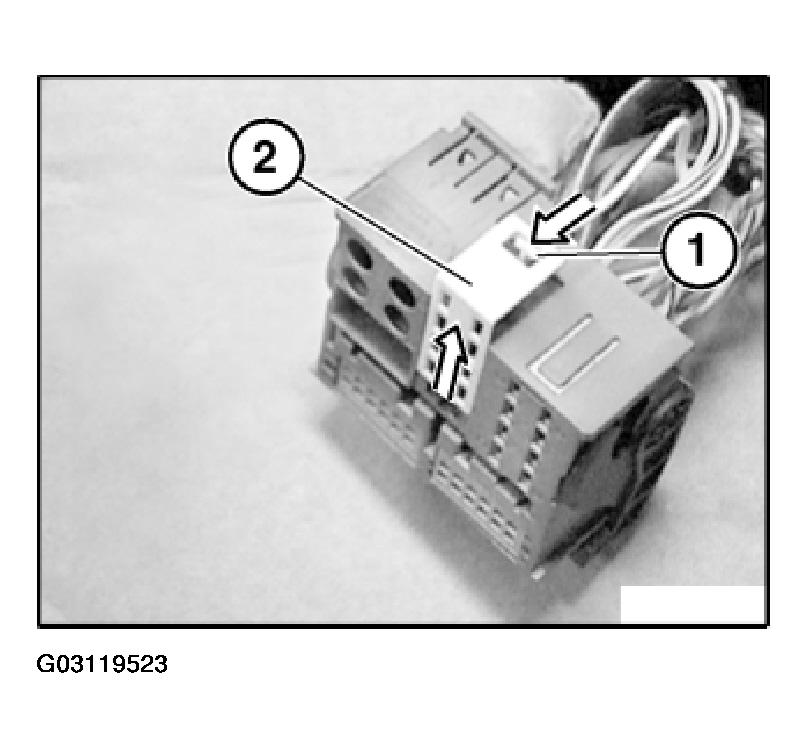

Press lock (1) in direction of arrow.

Fig 1: Detaching Secondary Lock From Radio Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Detach secondary lock (2) from radio plug.

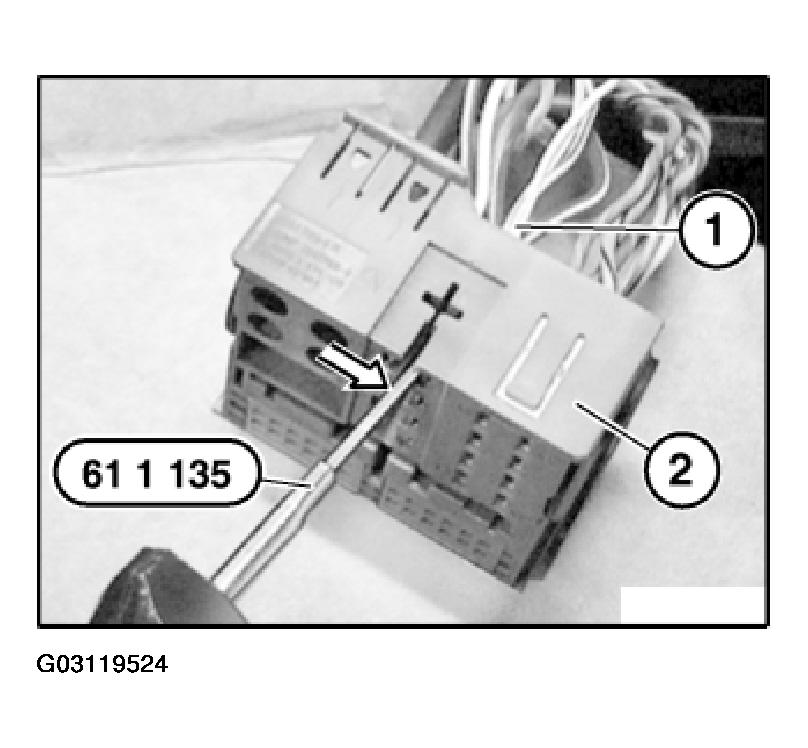

Feed special tool 61 1 135 past side of contact.

Fig 2: Pulling Wire With Socket Contact Out Of Radio Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Press special tool 61 1 135 in direction of arrow.

Pull wire (1) with socket contact out of radio plug (2).

Removing MQS contacts from contact carrier:

Press lock (1) in direction of arrow and pull housing (2) out of radio plug.

Fig 3: Pulling Housing Out Of Radio Plug

Courtesy of BMW OF NORTH AMERICA, INC.

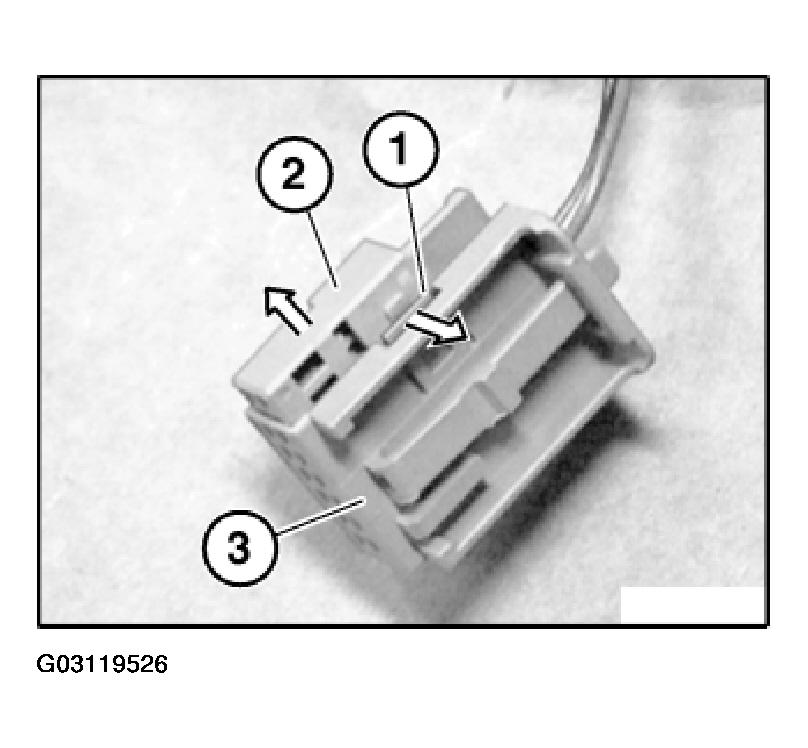

Press lock (1) in direction of arrow. Pull contact carrier (2) out of housing (3).

Fig 4: Pulling Contact Carrier Out Of Housing

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When the contact carrier is pulled out, the secondary locks of the socket contacts are raised.

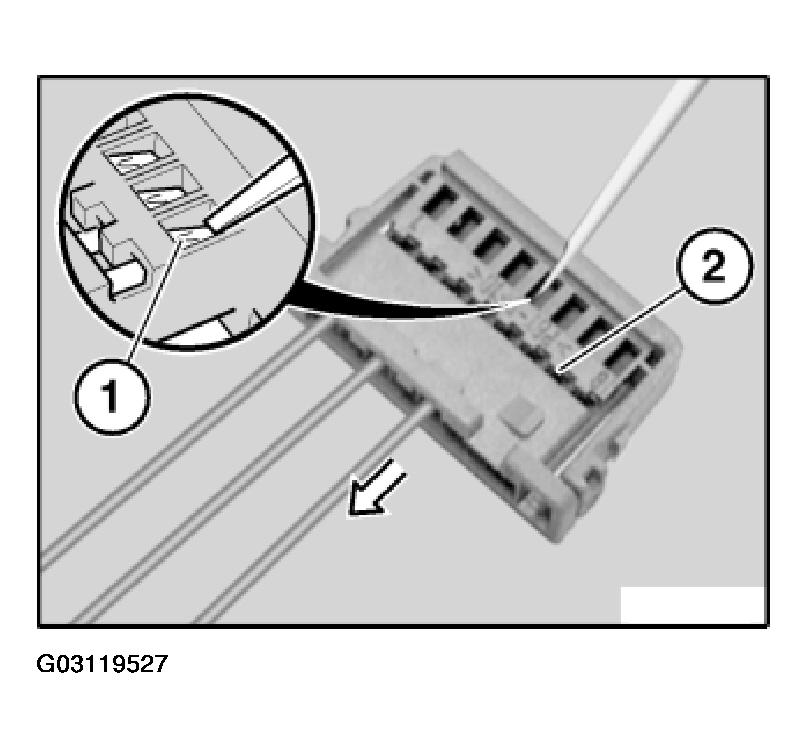

Hold down retaining hook (1) of socket contact in opening of contact carrier with a small screwdriver.

Fig 5: Holding Down Retaining Hook Of Socket Contact

Courtesy of BMW OF NORTH AMERICA, INC.

Pull wire with socket contact in direction of arrow as far as secondary lock (2).

NOTE: The illustration shows an 8-pin socket housing where removal of the contacts is identical.

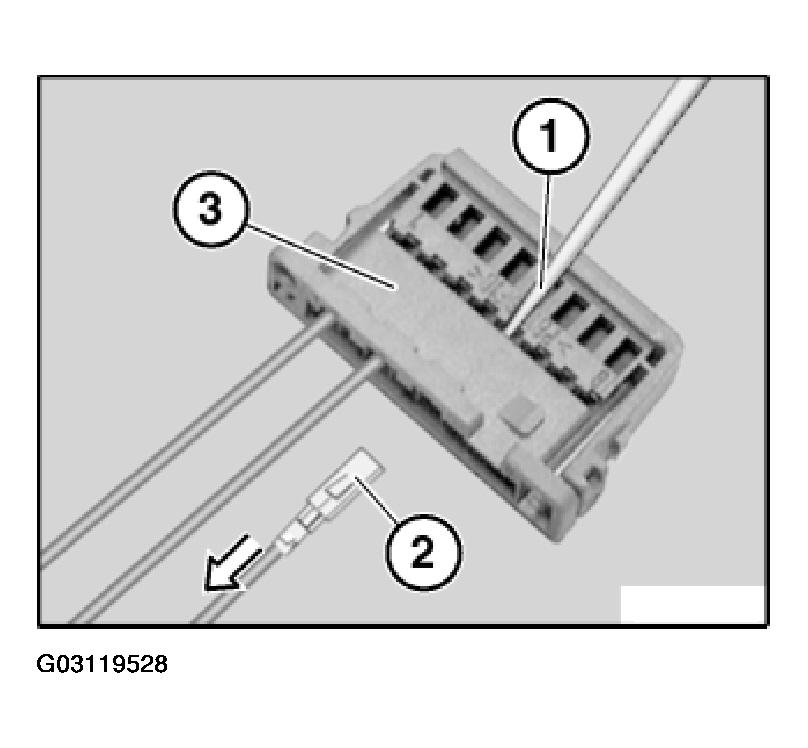

Hold down arrester hook in secondary lock (1) again. Pull wire with socket contact (2) out of contact carrier (3).

Fig 6: Holding Down Arrester Hook In Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Removing MPQ contacts from contact carrier:

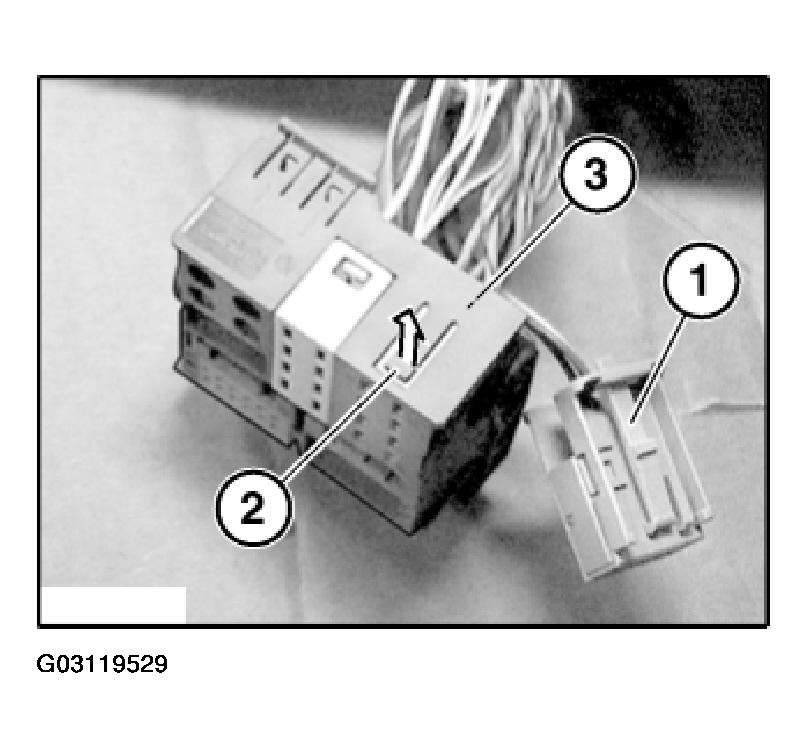

Remove contact carrier (1) with MQS contacts from radio plug.

Fig 7: Pulling Contact Carrier Out Of Radio Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Raise lock (2) on radio plug.

Pull contact carrier (3) out of radio plug.

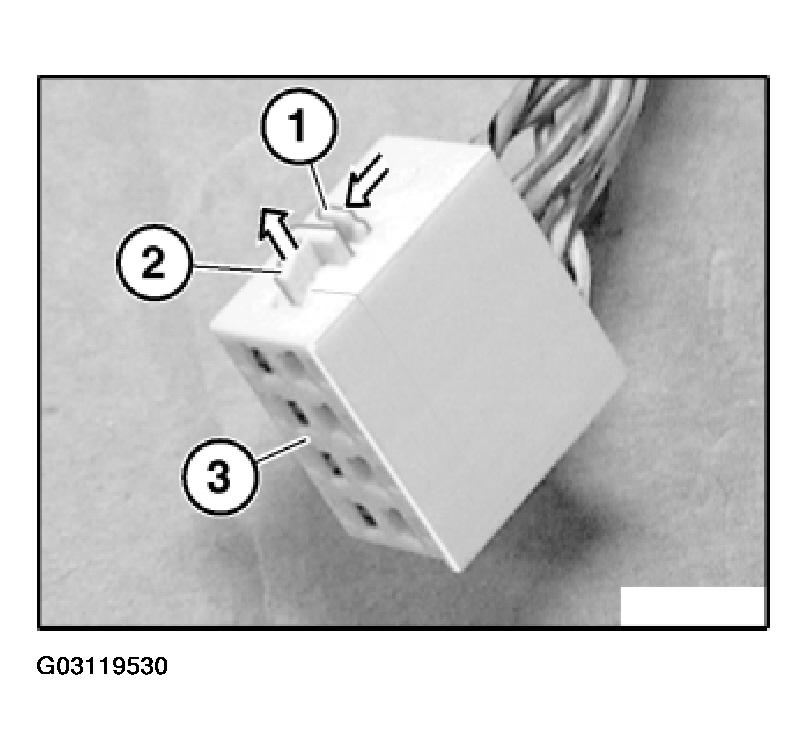

Press lock (1) in direction of arrow.

Fig 8: Pulling Secondary Lock Out Of Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Pull secondary lock (2) in direction of arrow completely out of contact carrier (3).

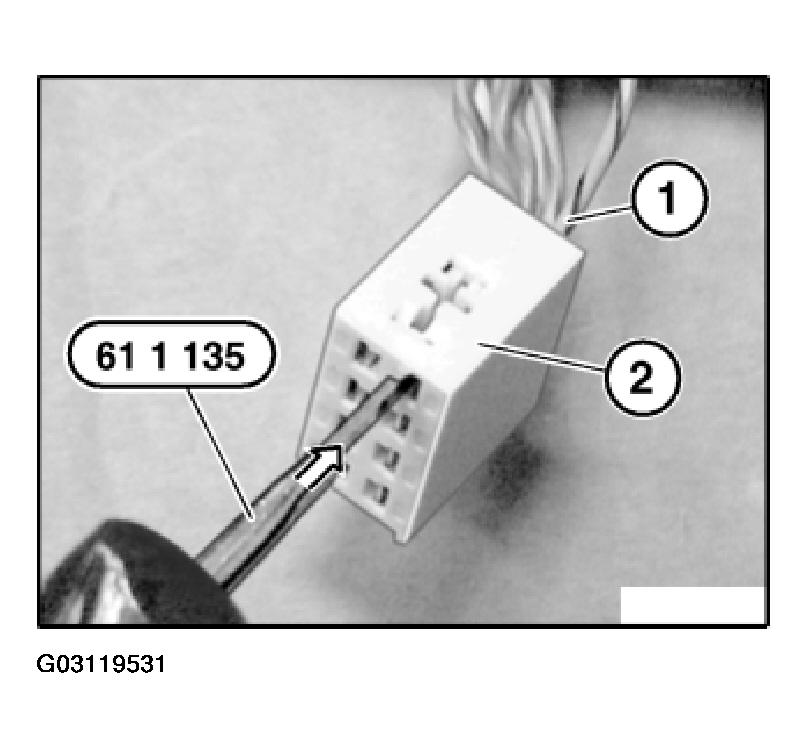

Press special tool 61 1 135 on inside of contact into contact carrier (2).

Pull wire with socket contact (1) out of contact carrier (2).

Fig 9: Pulling Wire With Socket Contact Out Of Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
