61 31 055 Removing And Installing/Replacing Switch For SMG Transmission (Program Selector Switch)

Special tools required:

• 64 1 020

For further information on special tools, refer to GENERAL ELECTRICAL SYSTEM - SPECIAL TOOLS - 3-Series (M54/E46) .

M3:

Unclip trim for storage tray (1) sideways and lift.

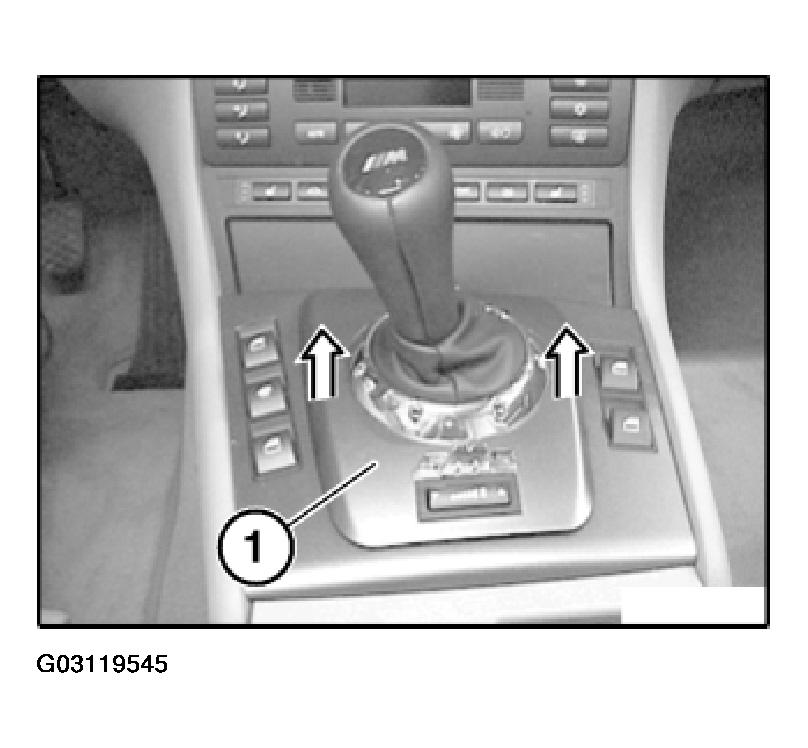

Fig 1: Lifting Trim For Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

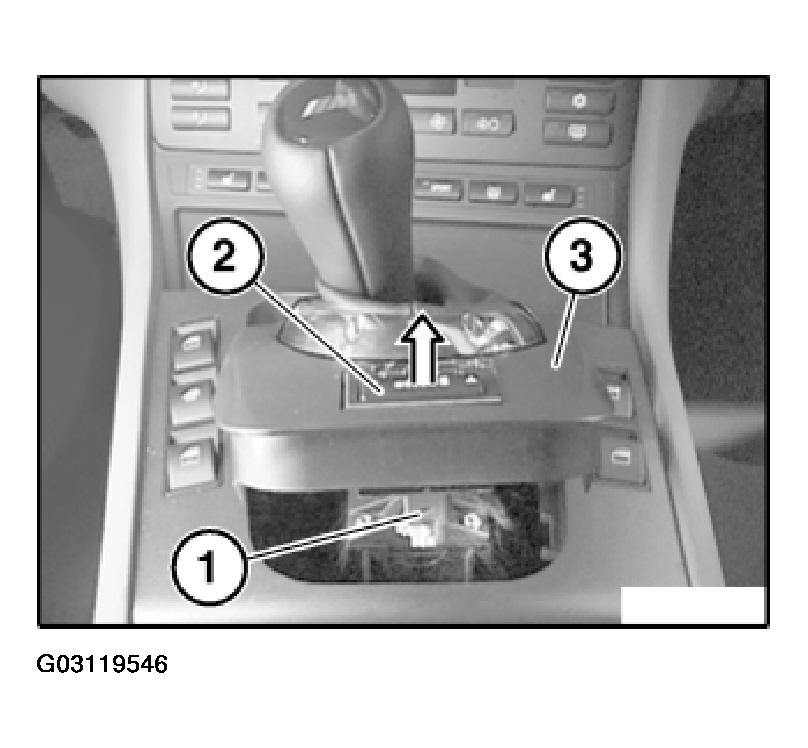

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip switch for SMG transmission (2) in direction of arrow from trim for storage tray (3) and remove.

All:

Unclip trim for storage tray (1) with special tool 64 1 020 and raise in direction of arrow.

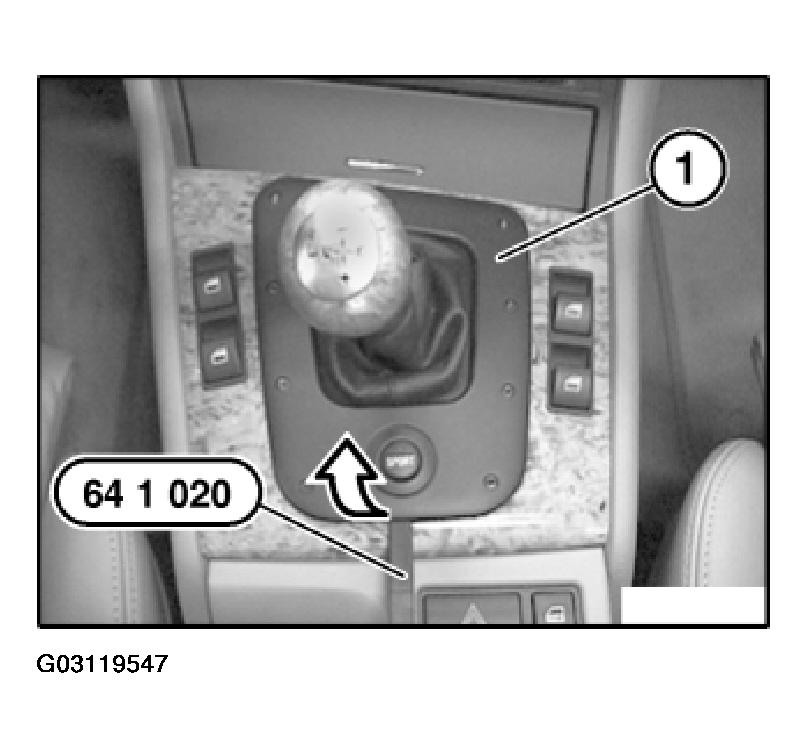

Fig 3: Raising Trim For Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

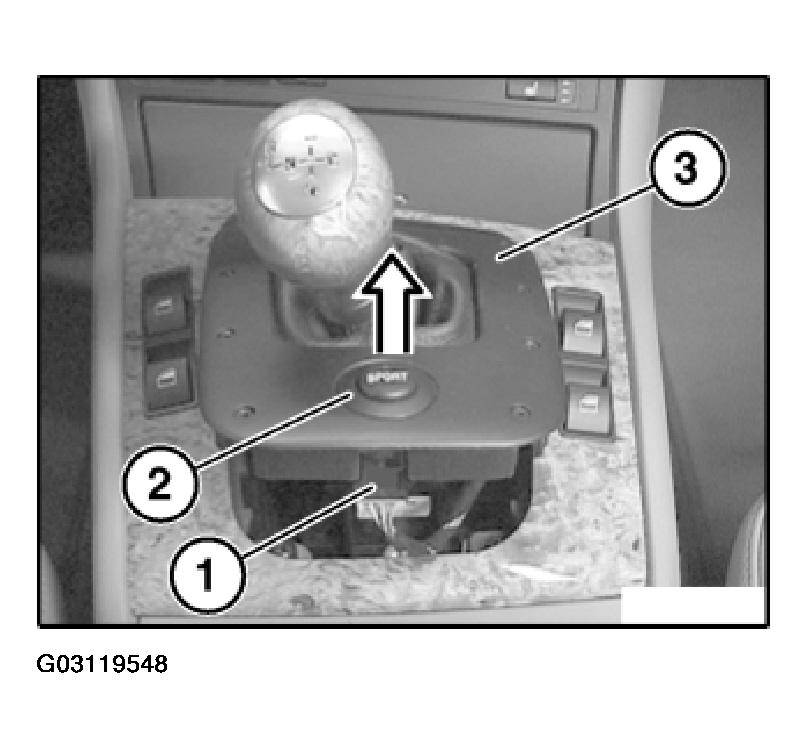

Fig 4: Removing Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip switch for SMG transmission (2) in direction of arrow from trim for storage tray (3) and remove.
