61 31 492 Replacing Level Switch For Windshield Washer System (M3, M3 CSL)

Necessary preliminary tasks:

Remove cover on right, refer to 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (M3, M3 CSL)

NOTE: Drain fluid reservoir for windshield washer system (3).

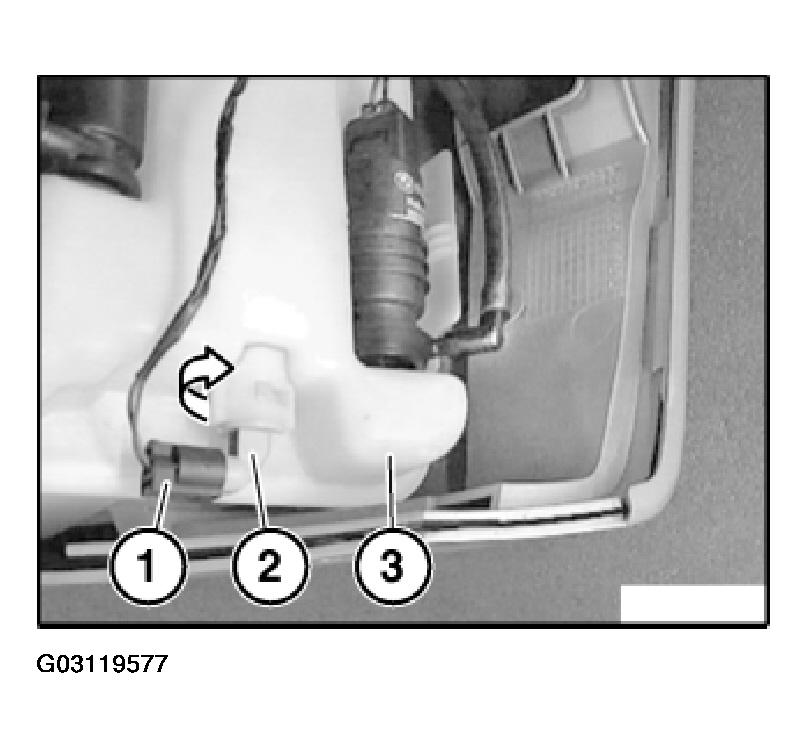

Fig 1: Removing Level Switch For Windshield Washer System

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Turn level switch for windshield washer system (2) in direction of arrow and remove towards bottom from water reservoir for windshield washer system (3).
