52 13 ... Removing And Installing/Replacing Guide For Front Left Or Right Head Restraint

Remove rear panel on front seat backrest:

Basic seat, refer to 52 13 198 REMOVING AND INSTALLING / REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/MANUAL)  .

Sports seat, refer to 52 15 198 REMOVING AND INSTALLING/REPLACING REAR PANEL ON FRONT LEFT OR RIGHT SEAT BACKREST (SPORTS/MANUAL)  .

Guide for head restraint with pushbutton:

Release catches (1) and (2) and slide guide (3) upwards.

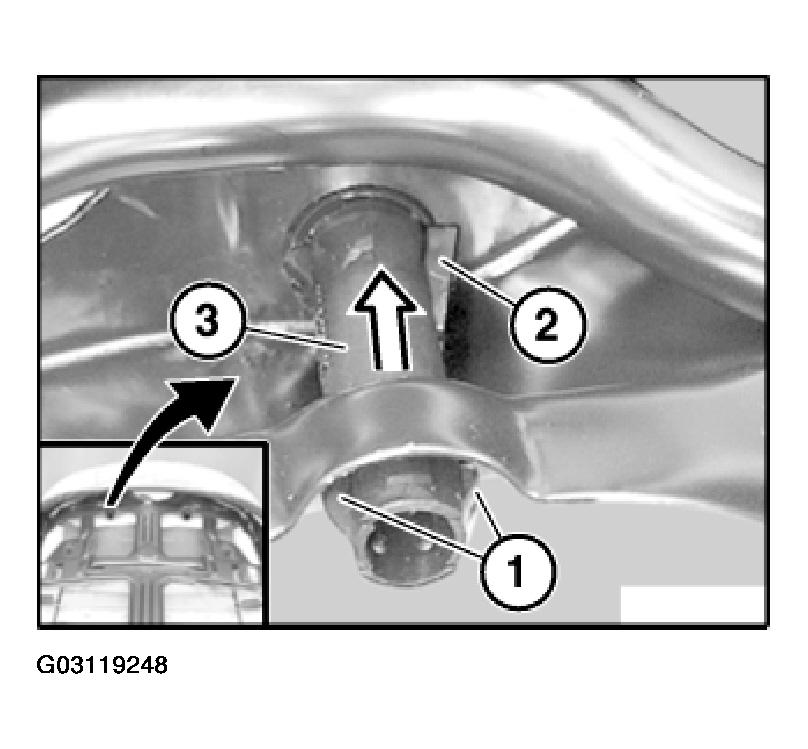

Fig 1: Releasing Catches
G03119248Courtesy of BMW OF NORTH AMERICA, INC.

Pull guide (1) out of backrest (2).

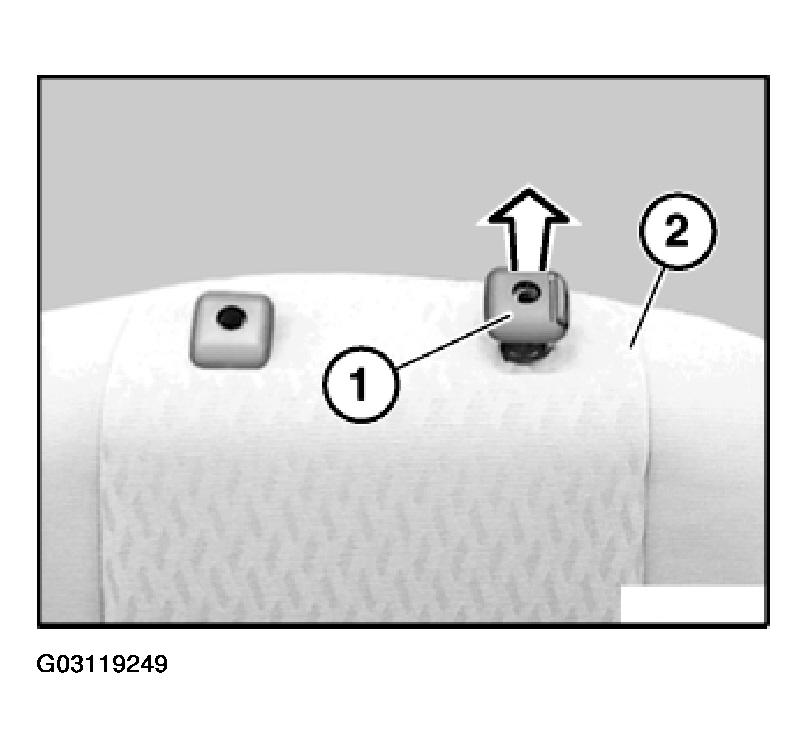

Fig 2: Removing Guide
G03119249Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) and (2) on guide (3) must not be damaged.

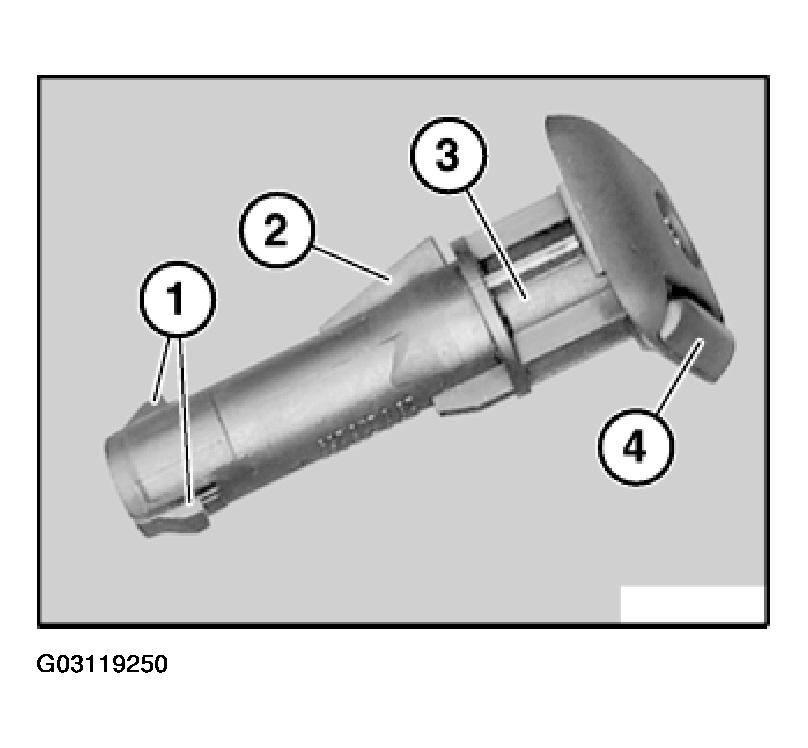

Fig 3: Identifying Catches On Guide
G03119250Courtesy of BMW OF NORTH AMERICA, INC.

Check that pushbutton (4) works properly.

After installing guide (3), make sure it is properly seated.

Guide for head restraint without pushbutton:

Release catches (1) and slide guide (2) upwards.

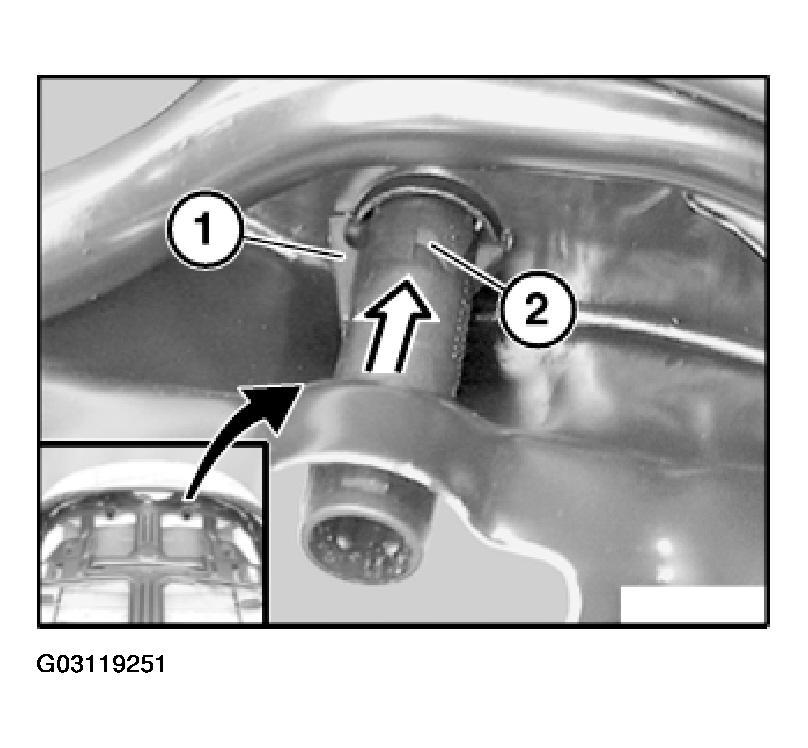

Fig 4: Releasing Catches
G03119251Courtesy of BMW OF NORTH AMERICA, INC.

Pull guide (1) out of backrest (2).

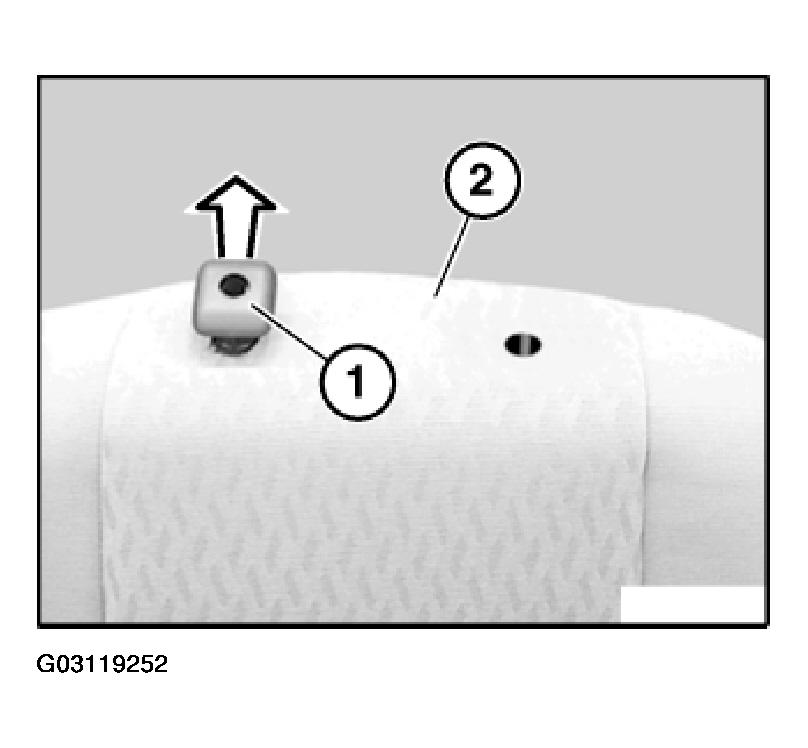

Fig 5: Removing Guide
G03119252Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catch (1) on guide (2) must not be damaged.

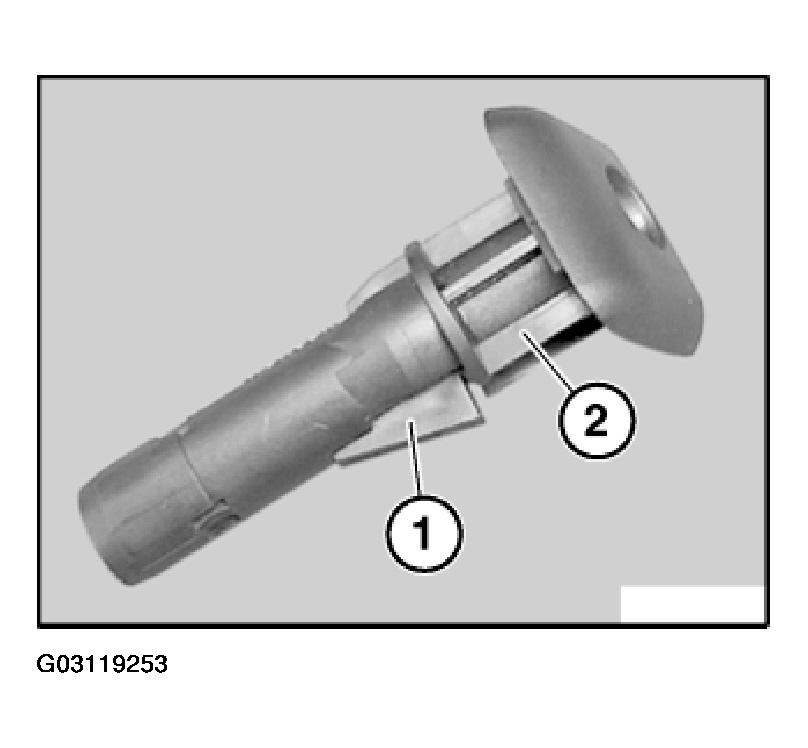

Fig 6: Identifying Catch On Guide
G03119253Courtesy of BMW OF NORTH AMERICA, INC.

After installing guide (2), make sure it is properly seated.
