11 61 Removing And Installing/Replacing Servomotor For Throttle On Control Unit (M3 CSL)

Unfasten plug connection and disconnect.

Release screws (1).

Detach servomotor (2) from fresh air housing.

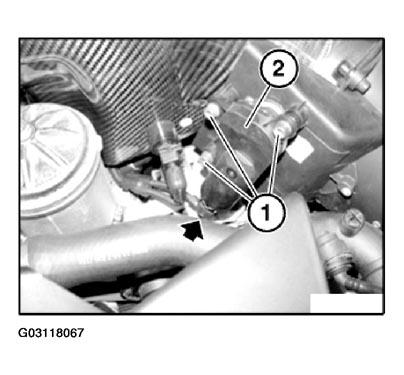

Fig 1: View Of Servomotor And Fresh Air Housing

Courtesy of BMW OF NORTH AMERICA, INC.
