11 61 Removing And Installing/Replacing Throttle Switch On Control Unit (M3 CSL)

Open retainer and disconnect plug (1).

Loosen screws (2).

Remove throttle switch (3) from raw air housing.

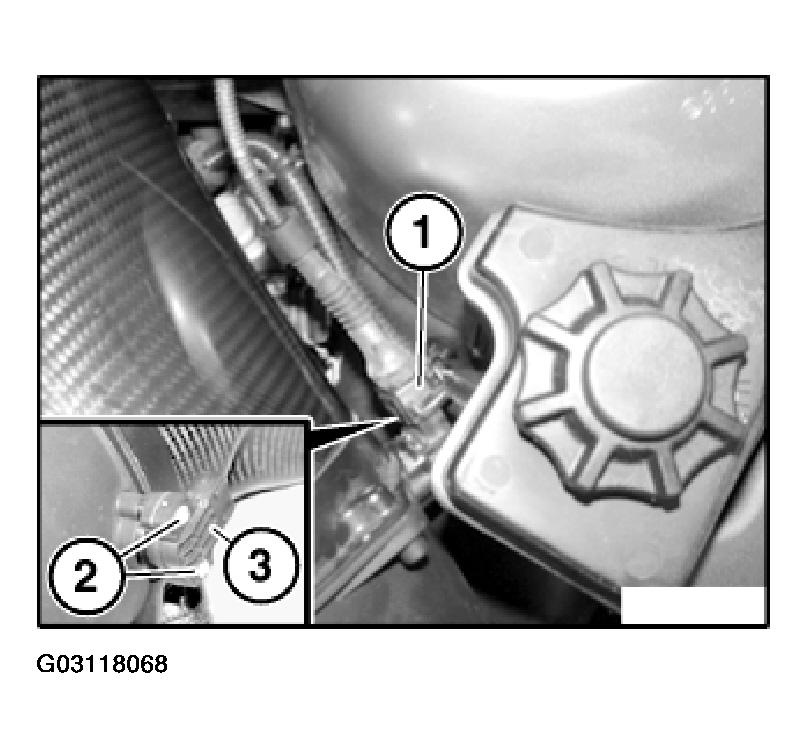

Fig 1: Locating Throttle Switch On Raw Air Housing

Courtesy of BMW OF NORTH AMERICA, INC.
