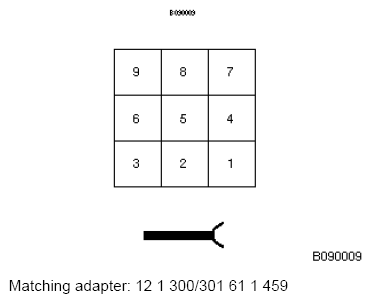

Digital Diesel Electronics Control Unit Module 1 X2411 Connector End View
Pin Assignments At Plug Connector X2411
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Voltage supply | Fuse carrier, engine electronics |
| 2 | Not used | ||
| 3 | Not used | ||
| 4 | M | Ground | Ground connector |
| 5 | M | Ground | Ground connector |
| 6 | M | Ground | Ground connector |
| 7 | Not used | ||
| 8 | E | Voltage supply | Fuse carrier, engine electronics |
| 9 | E | Activation, main relay | DDE relay |
