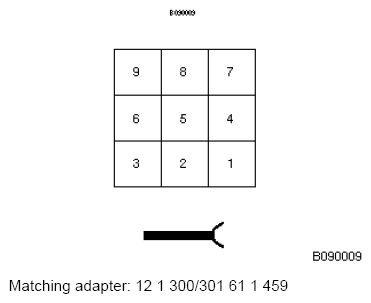

Digital Diesel Electronics Control Unit Module 5 X2415 Connector End View
Pin Assignments At Plug Connector X2415
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Supply, injectors 4-6 | U422 Voice input |
| 2 | Not used | ||
| 3 | A | Signal, injector 6 | Injector 6 |
| 4 | A | Supply, injectors 1-3 | U407 Basic interface telephone |
| 5 | A | Signal, injector 1 | Injector 1 |
| 6 | A | Signal, injector 4 | Injector 4 |
| 7 | A | Signal, injector 3 | Injector 3 |
| 8 | A | Signal, injector 2 | Injector 2 |
| 9 | A | Signal, injector 5 | Injector 5 |
