31 00... Notes on repairing threads: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Install Helicoil thread inserts so that they are flush with the original thread.

NOTE: Damaged threads on the engine support may be repaired with Helicoil thread inserts. Follow the procedure described in the example.

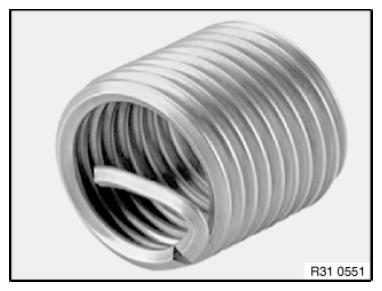

Fig 1: Identifying Damaged Spring

Courtesy of BMW OF NORTH AMERICA, INC.
