31 00... Notes on repairing threads: Procedure

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Create a clean core hole; if necessary, drill out screw remnants

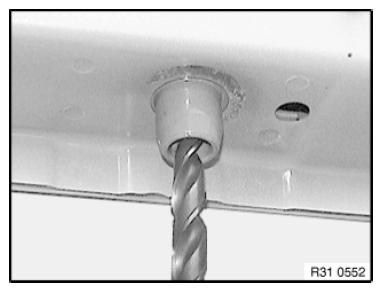

Fig 1: Drilling Out Screw Remnants
Courtesy of BMW OF NORTH AMERICA, INC.
Create locating thread for Helicoil thread insert

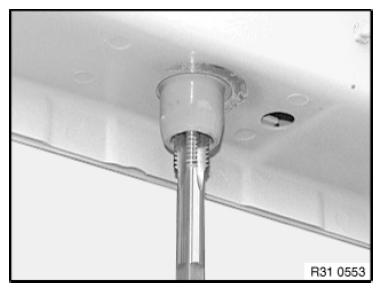

Fig 2: Making Locating Threads
Courtesy of BMW OF NORTH AMERICA, INC.
Pick out Helicoil thread insert in accordance with the TABLE and screw into the locating thread until flush with the original thread

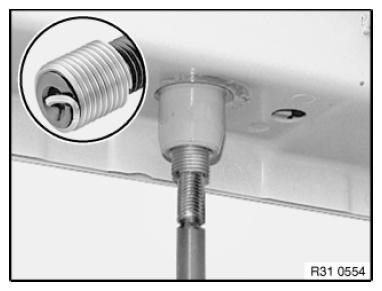

Fig 3: Inserting Helicoil Thread Into Locating Thread
Courtesy of BMW OF NORTH AMERICA, INC.
Break drive pin and remove

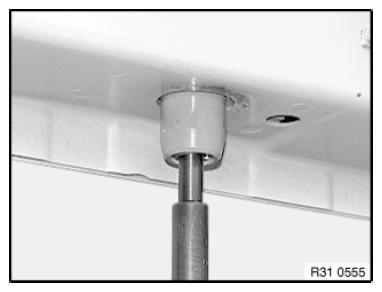

Fig 4: Removing Drive Pin
Courtesy of BMW OF NORTH AMERICA, INC.
