61 13... Unlocking and disconnecting different plug connections

NOTE: Examples of unlocking and disconnecting different plug connections.

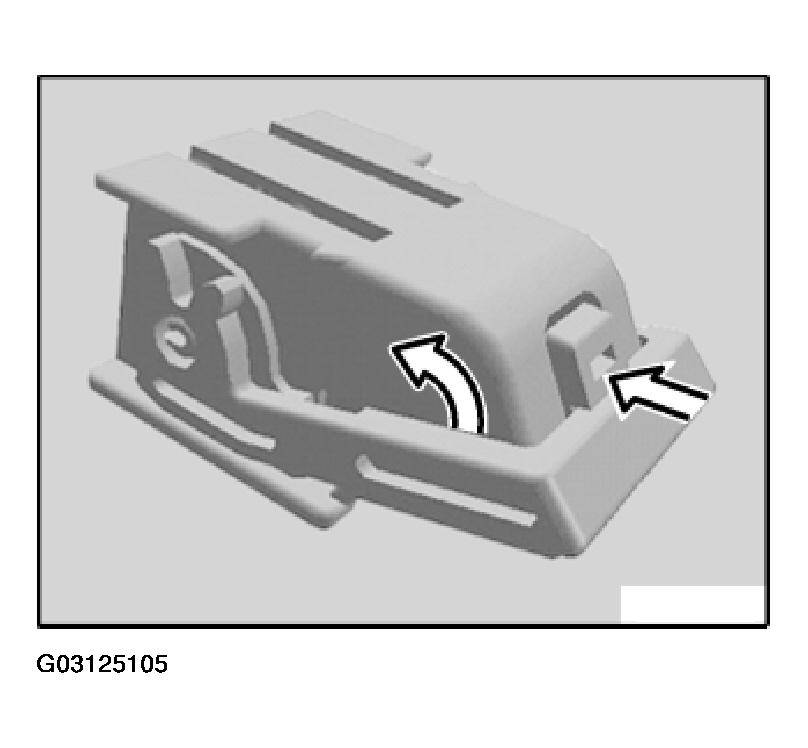

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 1: Unlocking & Disconnecting Different Plug Connections (1 Of 9)

G03125105

Courtesy of BMW OF NORTH AMERICA, INC.

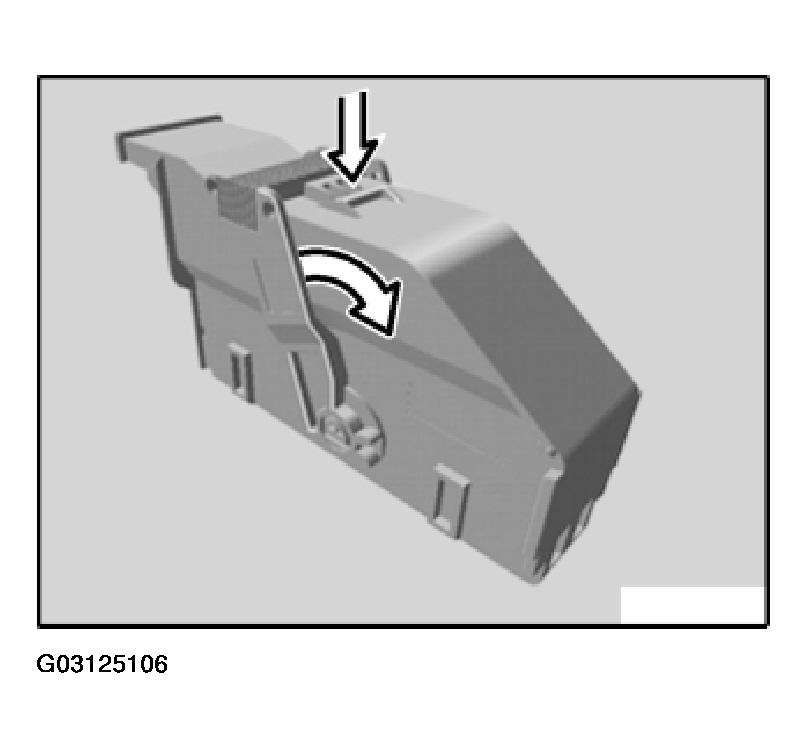

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 2: Unlocking & Disconnecting Different Plug Connections (2 Of 9)

G03125106

Courtesy of BMW OF NORTH AMERICA, INC.

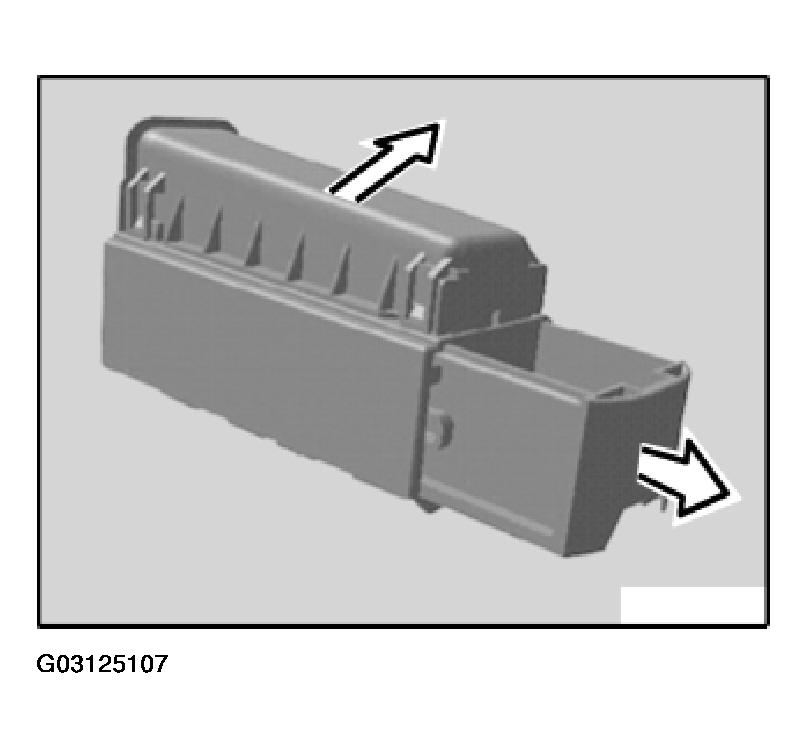

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Unlocking & Disconnecting Different Plug Connections (3 Of 9)

G03125107

Courtesy of BMW OF NORTH AMERICA, INC.

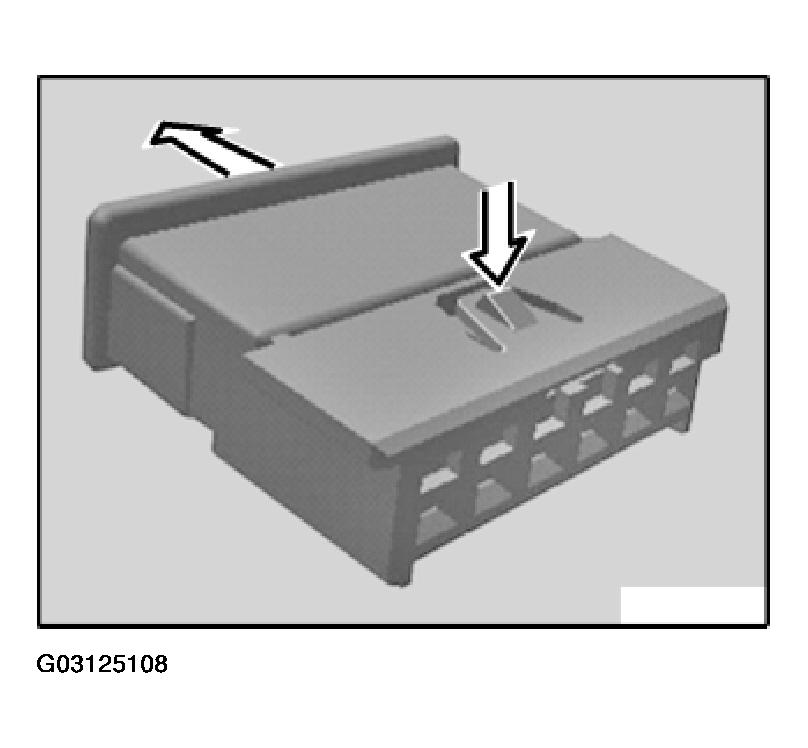

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Unlocking & Disconnecting Different Plug Connections (4 Of 9)

G03125108

Courtesy of BMW OF NORTH AMERICA, INC.

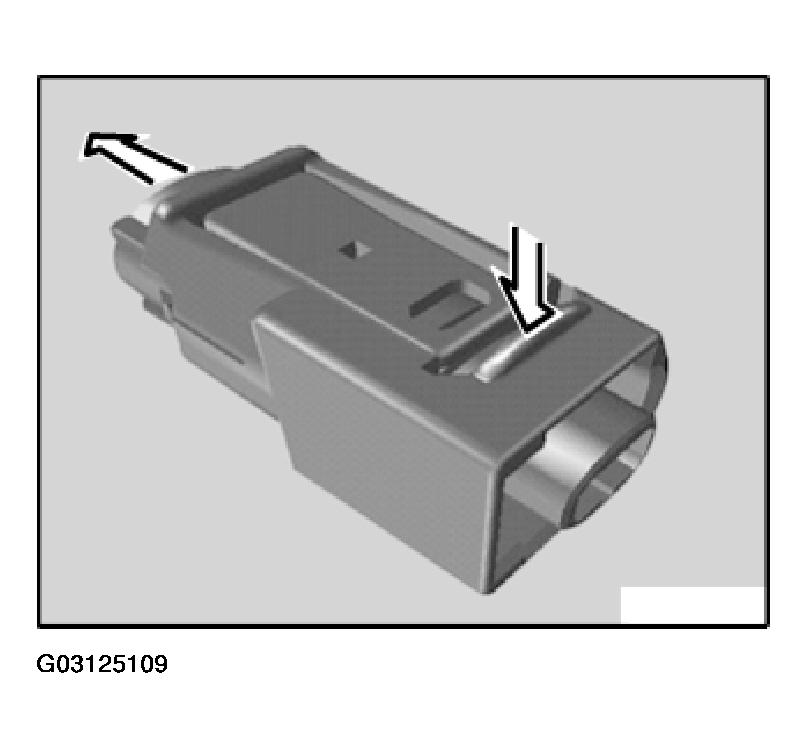

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Unlocking & Disconnecting Different Plug Connections (5 Of 9)

G03125109

Courtesy of BMW OF NORTH AMERICA, INC.

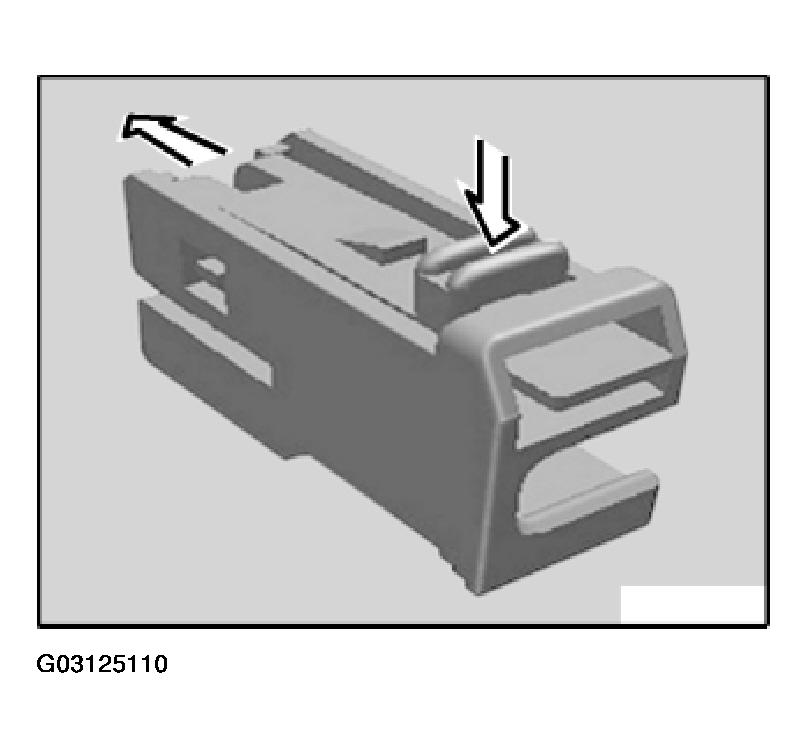

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Unlocking & Disconnecting Different Plug Connections (6 Of 9)

G03125110

Courtesy of BMW OF NORTH AMERICA, INC.

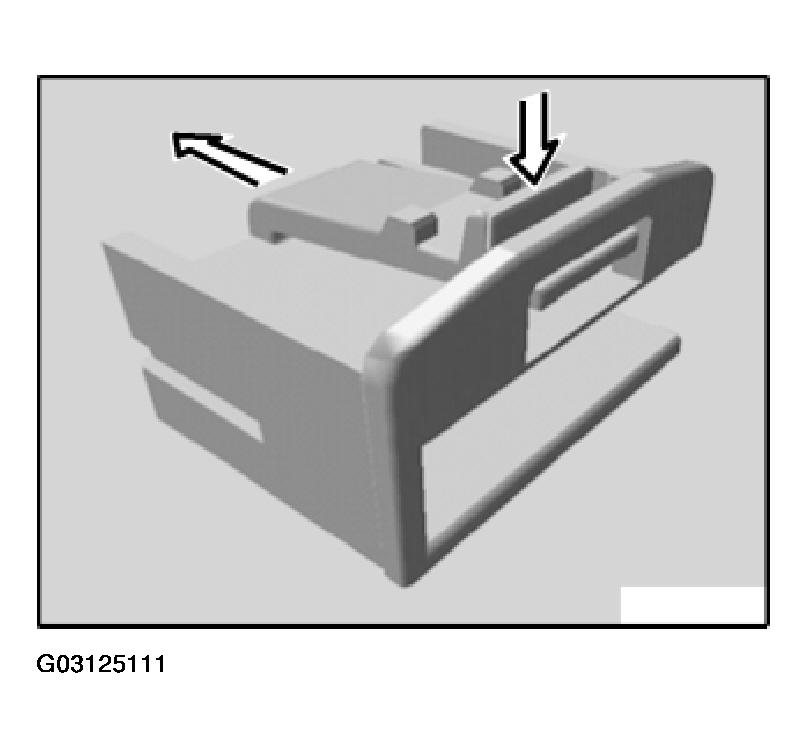

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Unlocking & Disconnecting Different Plug Connections (7 Of 9)

G03125111

Courtesy of BMW OF NORTH AMERICA, INC.

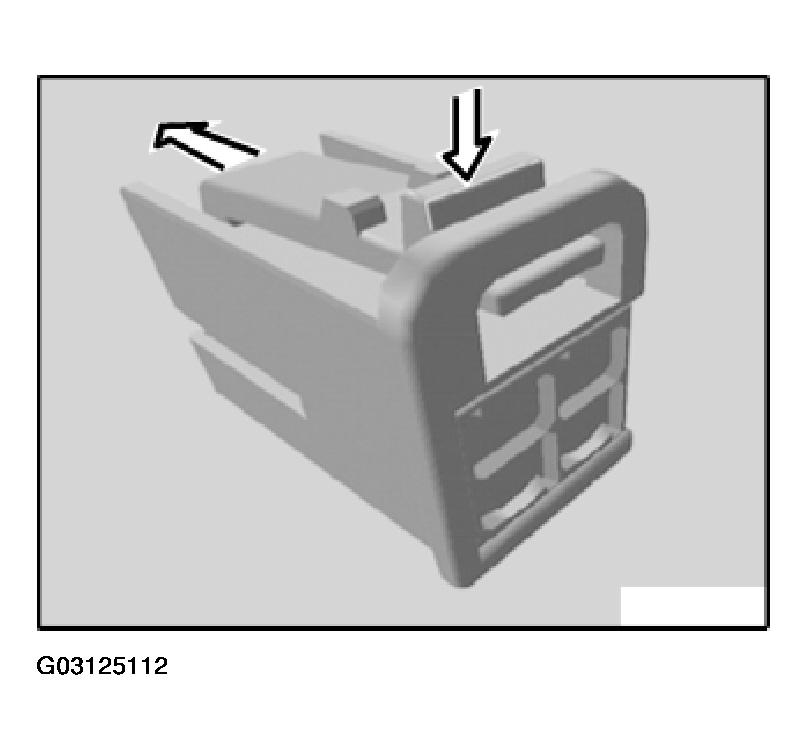

Press lock and disconnect plug connection in direction of arrow.

Fig 8: Unlocking & Disconnecting Different Plug Connections (8 Of 9)

G03125112

Courtesy of BMW OF NORTH AMERICA, INC.

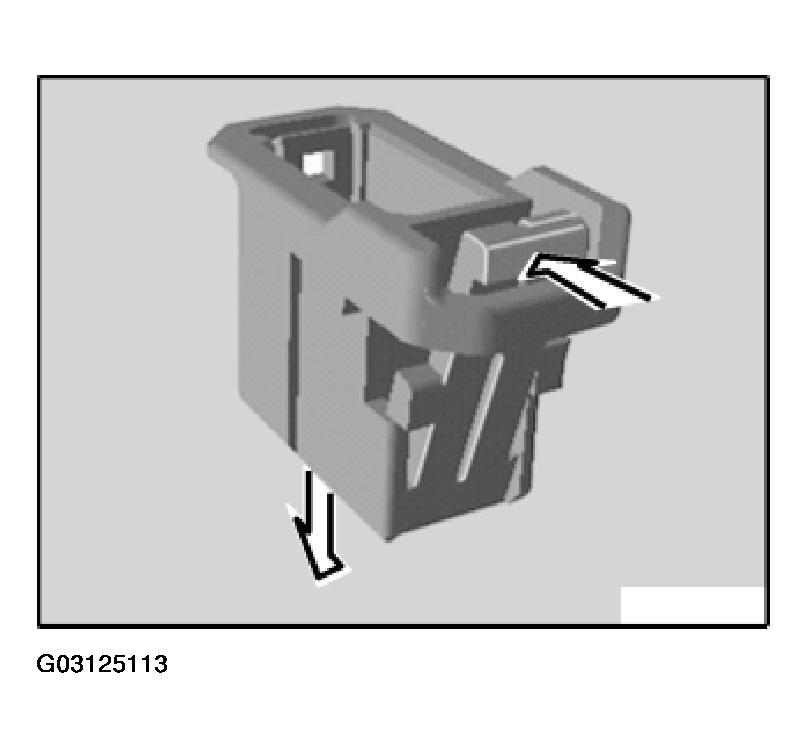

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Unlocking & Disconnecting Different Plug Connections (9 Of 9)

G03125113

Courtesy of BMW OF NORTH AMERICA, INC.
