System Overview Of Body-Gateway Module: E60, E61, E63, E64
Inputs/outputs

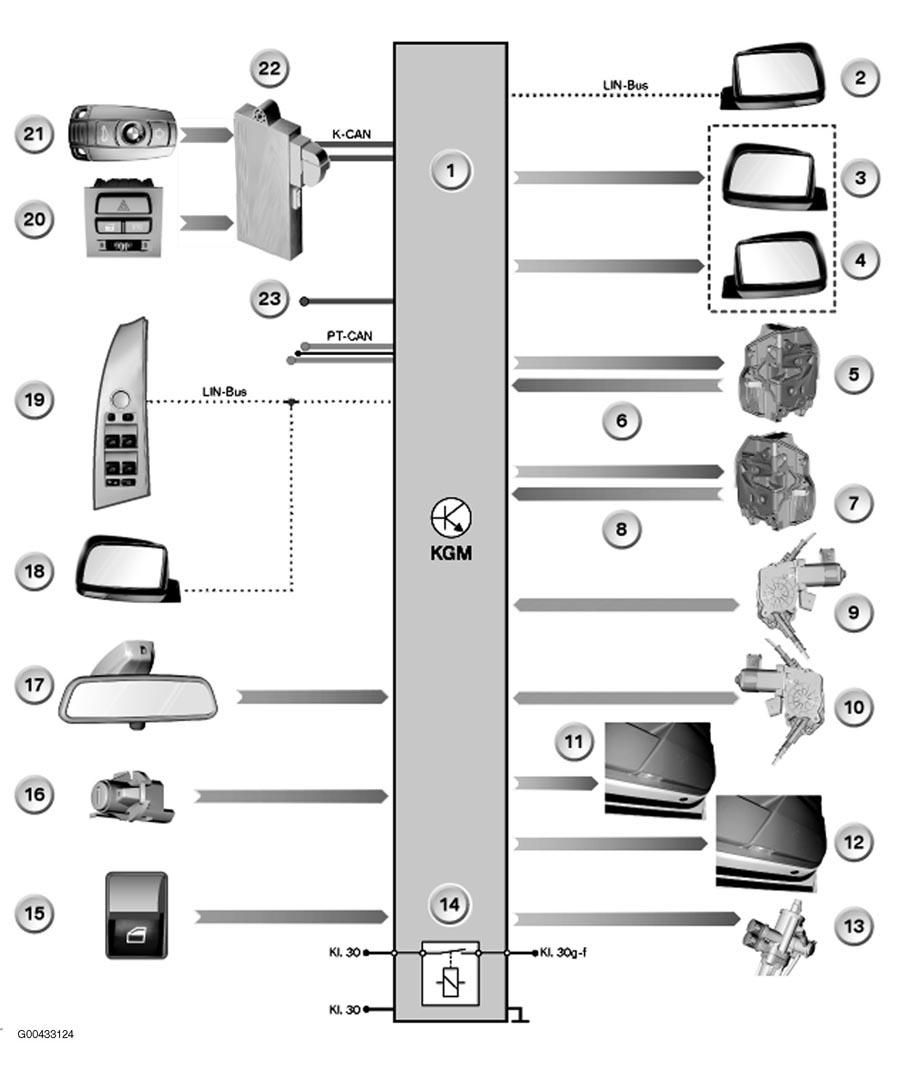

SYSTEM OVERVIEW OF BODY-GATEWAY MODULE INPUTS/OUTPUTS: E60, E61, E63, E64
| Item | Description | Item | Description |
|---|---|---|---|
| 1 | Body-gateway module (KGM) | 2 | Outside mirror with extended functions (passenger's side) |
| 3 | Basic outside mirror (driver's side) | 4 | Basic outside mirror (passenger's side) |
| 5 | Central locking drive in driver's door | 6 | Door contact in the driver's door |
| 7 | Central locking drive in passenger's door | 8 | Door contact in the front passenger door |
| 9 | Power-window motor in the driver's door | 10 | Power-window motor in the front passenger door |
| 11 | Door entry light in driver's door | 12 | Door entry light in passenger's door |
| 13 | Servotronic valve | 14 | Bistable relay |
| 15 | Power-window switch in the front passenger door | 16 | Driver's door lock cylinder |
| 17 | Electrochromic rear-view mirror | 18 | Outside mirror with extended functions (driver's side) |
| 19 | Switch block in the driver's door | 20 | Central locking button |
| 21 | Remote control with integrated key | 22 | Car Access System (CAS) |
| 23 | Diagnostic wire | ||
| Kl. 30 | Terminal 30 (power supply) | Kl. 30g-f | Terminal 30 g-f (shut-down for closed-circuit current violation) |
| K-CAN | Body CAN | LIN-bus | Local data bus (Local Interconnect Network Bus) |
| PT CAN | Powertrain CAN |
System Circuit Diagram
Fig 2: Identifying System Overview Of Body-Gateway Module System Circuit Diagram: E60, E61, E63, E64

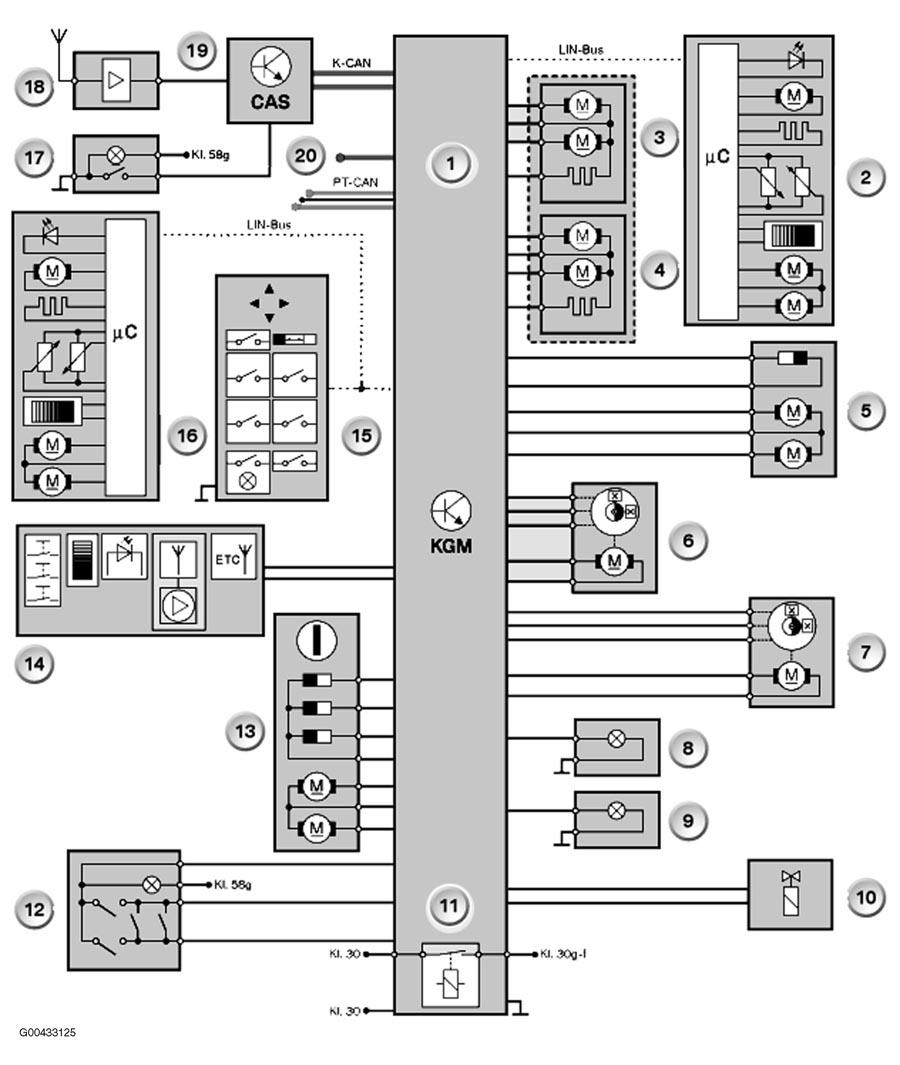

SYSTEM OVERVIEW OF BODY-GATEWAY MODULE SYSTEM CIRCUIT DIAGRAM: E60, E61, E63, E64
| Item | Description | Item | Description |
|---|---|---|---|
| 1 | Body-gateway module (KGM) | 2 | Outside mirror with extended functions (passenger's side) |
| 3 | Basic outside mirror (driver's side) | 4 | Basic outside mirror (passenger's side) |
| 5 | Central-locking drive and door contact in the front passenger door | 6 | Power window motor with 2 Hall sensors in driver's door |
| 7 | Power window motor with 2 Hall sensors in passenger's door | 8 | Door entry light in driver's door |
| 9 | Door entry light in passenger's door | 10 | Servotronic valve |
| 11 | Bistable relay | 12 | Power-window switch in the front passenger door |
| 13 | Central-locking drive, lock cylinder and door contact in the driver's door | 14 | Electrochromic rear-view mirror |
| 15 | Switch block in the driver's door | 16 | Outside mirror with extended functions (driver's side) |
| 17 | Central locking button | 18 | Remote control receiver |
| 19 | Car Access System (CAS) | 20 | Diagnostic wire |
| Kl. 30 | Terminal 30 (power supply) | Kl. 30g-f | Terminal 30 g-f (shut-down for closed-circuit current violation) |
| Kl. 58g | Terminal 58g (locator lighting) | ||
| K-CAN | Body CAN | LIN-bus | Local data bus (Local Interconnect Network Bus) |
| PT CAN | Powertrain CAN |
