65 90 511 Removing And Installing/Replacing Navigation Computer With CD/DVD Drive (Long Version)

Necessary preliminary tasks:

• Remove LEFT LUGGAGE COMPARTMENT TRIM on side panel

Pull navigation computer (1) with special tool 65 5 400 out of mounting and disconnect associated plug connections.

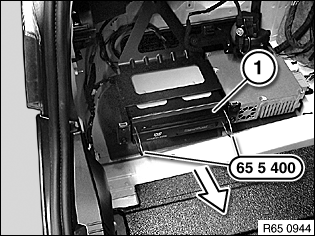

Fig 1: Removing Navigation Computer Using Special Tool 65 5 400

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING .
